Mini-tutorial para obtener el valor Tempo EDF (+Número de días BBR) en Gladys a través de Node-red con escena de envío Telegram

Tutoriales
1

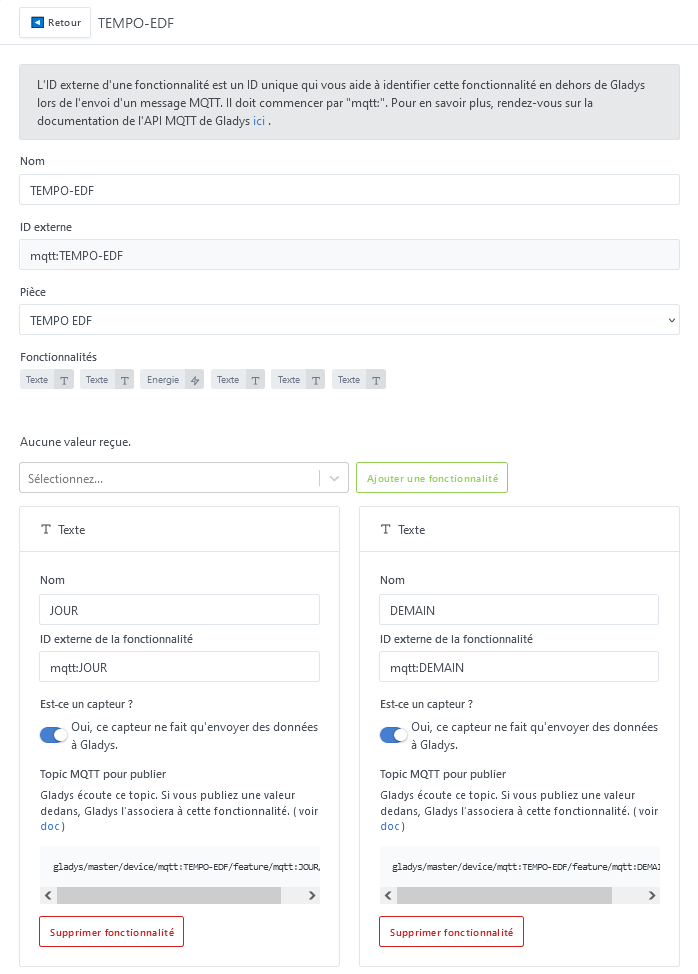

Crear un dispositivo virtual de la siguiente manera en Gladys en la integración MQTT

image198×269 2.27 KB

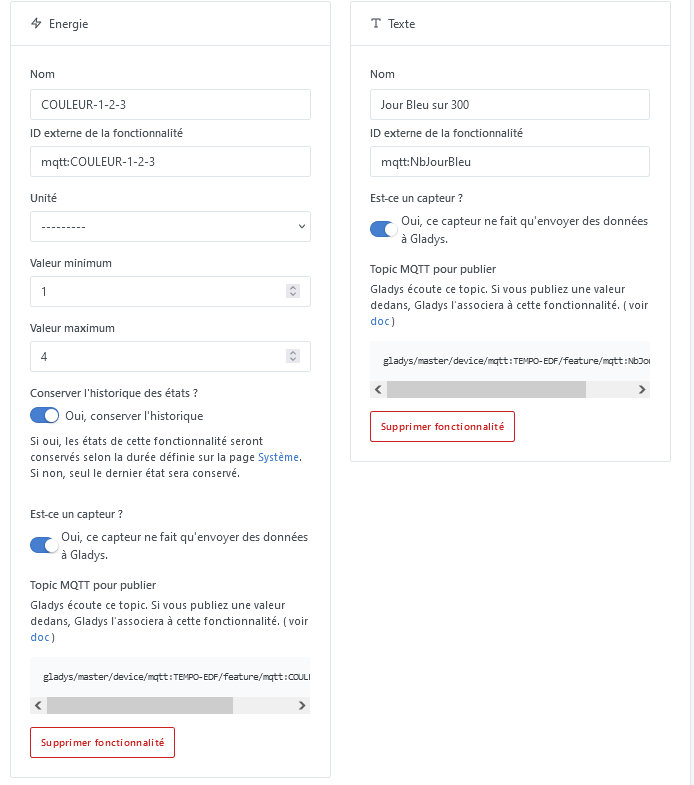

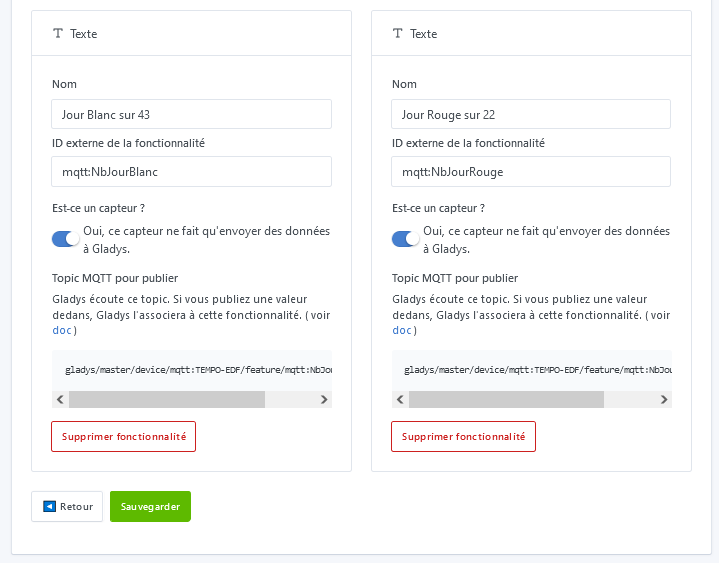

Con las siguientes funcionalidades

image698×974 22.8 KB

image694×785 24.2 KB

image719×563 13.9 KB

Importar este flujo en node-red

Código del flujo
[
    {
        "id": "2b792c822e8e46f1",
        "type": "tab",
        "label": "TEMPO EDF",
        "disabled": false,
        "info": "",
        "env": []
    },
    {
        "id": "42d67acc049f7425",
        "type": "group",
        "z": "2b792c822e8e46f1",
        "name": "TEMPO EDF",
        "style": {
            "stroke": "#000000",
            "fill": "#bfdbef",
            "label": true,
            "label-position": "n",
            "color": "#000000"
        },
        "nodes": [
            "3d684dcab20a9914",
            "3645d0bfbb46151e",
            "967e5501fcd58cdd",
            "71a73d70ed628528",
            "e87b67de861c3256",
            "50e0c479b04cb23c",
            "418c3a4174d195aa",
            "e89633a377e594b8",
            "0de6bf94f39e7f8b"
        ],
        "x": 74,
        "y": 39,
        "w": 1052,
        "h": 262
    },
    {
        "id": "02e46bae52d39d3b",
        "type": "group",
        "z": "2b792c822e8e46f1",
        "name": "TEMPO EDF - Nb Jours Blanc Rouge Bleu",
        "style": {
            "stroke": "#000000",
            "fill": "#bfdbef",
            "label": true,
            "label-position": "n",
            "color": "#000000"
        },
        "nodes": [
            "c930bd12d3f44d91",
            "9c8bd280de70d67b",
            "590aa4f85a232830",
            "6d3c60cbfc8197ad",
            "4c96ef17847a98b3",
            "25f4c2d57f2b9c3d",
            "341b7ddd6a3eb996",
            "25b74b7de9880f61",
            "6c60d01b69c8beda"
        ],
        "x": 74,
        "y": 319,
        "w": 1052,
        "h": 262
    },
    {
        "id": "3d684dcab20a9914",
        "type": "inject",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "01 13 * * *",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 190,
        "y": 80,
        "wires": [
            [
                "3645d0bfbb46151e"
            ]
        ]
    },
    {
        "id": "3645d0bfbb46151e",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Generar fecha",
        "func": "const date = new Date();\n\nlet day = date.getDate();\nlet month = date.getMonth() + 1;\nlet year = date.getFullYear();\n\nlet currentDate = `${year}-${month}-${day}`;\n\nmsg.query = currentDate;\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 190,
        "y": 140,
        "wires": [
            [
                "967e5501fcd58cdd"
            ]
        ]
    },
    {
        "id": "967e5501fcd58cdd",
        "type": "http request",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Color_TEMPO",
        "method": "GET",
        "ret": "obj",
        "paytoqs": "ignore",
        "url": "https://particulier.edf.fr/services/rest/referentiel/searchTempoStore?dateRelevant={{{query}}}",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 210,
        "y": 200,
        "wires": [
            [
                "e87b67de861c3256",
                "418c3a4174d195aa",
                "e89633a377e594b8",
                "0de6bf94f39e7f8b"
            ]
        ]
    },
    {
        "id": "71a73d70ed628528",
        "type": "debug",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "debug 2",
        "active": false,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "targetType": "full",
        "statusVal": "",
        "statusType": "auto",
        "x": 940,
        "y": 140,
        "wires": []
    },
    {
        "id": "e87b67de861c3256",
        "type": "debug",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "debug 1",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "targetType": "full",
        "statusVal": "",
        "statusType": "auto",
        "x": 420,
        "y": 80,
        "wires": []
    },
    {
        "id": "50e0c479b04cb23c",
        "type": "mqtt out",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Broker Mqtt IP Gladys:1883",
        "topic": "",
        "qos": "",
        "retain": "",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "f4ab211ed11dc81c",
        "x": 980,
        "y": 200,
        "wires": []
    },
    {
        "id": "418c3a4174d195aa",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Enviar TEMPO JOURJ1 => Gladys:MAÑANA ...",
        "func": "var tempo = msg.payload.couleurJourJ1;\n\n// ** Inicio de bloque ************************************************************************************************\n\n// Nombre de los dispositivos dados en Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nombre del dispositivo en Gladys\nvar nomIdAppareilGladys = \"DEMAIN\";      // nombre del ID externo de la funcionalidad\n\n// Valor del tema y carga útil para enviar a Gladys\n//           gladys/master/device/mqtt:\"   TEMPO-EDF            /feature/mqtt:\"   JOUR                   /text\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/text\";\n\n// Cambia la carga útil de salida según el valor de la carga útil enviada por EDF\nif (tempo === \"TEMPO_BLEU\") {\n    msg.payload = \"TEMPO AZUL\";\n    node.status({ fill: \"blue\", shape: \"ring\", text: tempo });\n}\nif (tempo === \"TEMPO_BLANC\") {\n    msg.payload = \"TEMPO BLANCO\";\n    node.status({ fill: \"white\", shape: \"ring\", text: tempo });\n}\n\nif (tempo === \"TEMPO_ROUGE\") {\n    msg.payload = \"TEMPO ROJO\";\n    node.status({ fill: \"red\", shape: \"ring\", text: tempo });\n}\n\nif (tempo === \"NON_DEFINI\") {\n    msg.payload = \"NOM DEFINI\";\n    node.status({ fill: \"grey\", shape: \"ring\", text: tempo });\n}\n\n// ** Fin de bloque ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 540,
        "y": 200,
        "wires": [
            [
                "50e0c479b04cb23c",
                "71a73d70ed628528"
            ]
        ]
    },
    {
        "id": "e89633a377e594b8",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Enviar TEMPO JOURJ => Gladys:DÍA ....",
        "func": "var tempo = msg.payload.couleurJourJ;\n\n// ** Inicio de bloque ************************************************************************************************\n\n// Nombre de los dispositivos dados en Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nombre del dispositivo en Gladys\nvar nomIdAppareilGladys = \"JOUR\";      // nombre del ID externo de la funcionalidad\n\n// Valor del tema y carga útil para enviar a Gladys\n//           gladys/master/device/mqtt:\"   TEMPO-EDF            /feature/mqtt:\"   JOUR                   /text\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/text\";\n\n// Cambia la carga útil de salida según el valor de la carga útil enviada por EDF\nif (tempo === \"TEMPO_BLEU\") {\n    msg.payload = \"TEMPO AZUL\";\n    node.status({ fill: \"blue\", shape: \"ring\", text: tempo });\n}\nif (tempo === \"TEMPO_BLANC\") {\n    msg.payload =  \"TEMPO BLANCO\";\n    node.status({ fill: \"white\", shape: \"ring\", texto: tempo });\n}\n    \nif (tempo === \"TEMPO_ROUGE\") {\n    msg.payload = \"TEMPO ROUGE\";\n    node.status({ fill: \"red\", shape: \"ring\", text: tempo });\n}\n\nif (tempo === \"NON_DEFINI\") {\n    msg.payload = \"NOM DEFINI\";\n    node.status({ fill: \"grey\", shape: \"ring\", text: tempo });\n}\n\n// ** Fin Bloc ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 530,
        "y": 140,
        "wires": [
            [
                "50e0c479b04cb23c",
                "71a73d70ed628528"
            ]
        ]
    },
    {
        "id": "0de6bf94f39e7f8b",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "42d67acc049f7425",
        "name": "Envoi TEMPO JOURJ => Gladys:TEMPO-EDF-COULEUR-1-2-3",
        "func": "var tempo = msg.payload.couleurJourJ;\n\n// ** Début Bloc ***********************************************************************************************\n\n// Nom des appareils donnés dans Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nom du device dans Gladys\nvar nomIdAppareilGladys = \"COULEUR-1-2-3\";      // nom de l'ID externe de la fonctionnalité\n\n// Valeur Topic et Payload à envoyer à Gladys\n//           gladys/master/device/mqtt:    TEMPO-EDF            /feature/mqtt:    TEMPO-EDF-COULEUR-1-2-3/state\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/state\";\n\n// Change le payload de sortie selon la valeur du payload envoyé par EDF\nif (tempo === \"TEMPO_BLEU\") {\n    msg.payload = 1;\n    node.status({ fill: \"blue\", shape: \"ring\", text: tempo });\n}\nif (tempo === \"TEMPO_BLANC\") {\n    msg.payload = 2;\n    node.status({ fill: \"white\", shape: \"ring\", text: tempo });\n}\n\nif (tempo === \"TEMPO_ROUGE\") {\n    msg.payload = 3;\n    node.status({ fill: \"red\", shape: \"ring\", text: tempo });\n}\n\nif (tempo === \"NON_DEFINI\") {\n    msg.payload = 4;\n    node.status({ fill: \"grey\", shape: \"ring\", text: tempo });\n}\n\n// ** Fin Bloc ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 600,
        "y": 260,
        "wires": [
            [
                "50e0c479b04cb23c",
                "71a73d70ed628528"
            ]
        ]
    },
    {
        "id": "c930bd12d3f44d91",
        "type": "inject",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "01 13 * * *",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 190,
        "y": 360,
        "wires": [
            [
                "9c8bd280de70d67b"
            ]
        ]
    },
    {
        "id": "9c8bd280de70d67b",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Génére Date ",
        "func": "const date = new Date();\n\nlet day = date.getDate();\nlet month = date.getMonth() + 1;\nlet year = date.getFullYear();\n\nlet currentDate = `${year}-${month}-${day}`;\n\nmsg.query = currentDate;\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 190,
        "y": 420,
        "wires": [
            [
                "590aa4f85a232830"
            ]
        ]
    },
    {
        "id": "590aa4f85a232830",
        "type": "http request",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Couleur_TEMPO",
        "method": "GET",
        "ret": "obj",
        "paytoqs": "ignore",
        "url": "https://particulier.edf.fr/services/rest/referentiel/getNbTempoDays?TypeAlerte=TEMPO",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 210,
        "y": 480,
        "wires": [
            [
                "4c96ef17847a98b3",
                "341b7ddd6a3eb996",
                "25b74b7de9880f61",
                "6c60d01b69c8beda"
            ]
        ]
    },
    {
        "id": "6d3c60cbfc8197ad",
        "type": "debug",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "debug 14",
        "active": false,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "targetType": "full",
        "statusVal": "",
        "statusType": "auto",
        "x": 940,
        "y": 420,
        "wires": []
    },
    {
        "id": "4c96ef17847a98b3",
        "type": "debug",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "debug 15",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "targetType": "full",
        "statusVal": "",
        "statusType": "auto",
        "x": 420,
        "y": 360,
        "wires": []
    },
    {
        "id": "25f4c2d57f2b9c3d",
        "type": "mqtt out",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Broker Mqtt IP Gladys:1883",
        "topic": "",
        "qos": "",
        "retain": "",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "f4ab211ed11dc81c",
        "x": 980,
        "y": 480,
        "wires": []
    },
    {
        "id": "341b7ddd6a3eb996",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Envoi TEMPO PARAM_NB_J_BLANC",
        "func": "var nbJour = msg.payload.PARAM_NB_J_BLANC;\n\n// ** Début Bloc ***********************************************************************************************\n\n// Nom des appareils donnés dans Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nom du device dans Gladys\nvar nomIdAppareilGladys = \"NbJourBlanc\";      // nom de l'ID externe de la fonctionnalité\n\n// Valeur Topic et Payload à envoyer à Gladys\n//           gladys/master/device/mqtt:\"   TEMPO-EDF            /feature/mqtt:\"   JOUR                   /text\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/text\";\n\n// Change le payload de sortie selon la valeur du payload envoyé par EDF\nmsg.payload = nbJour;\nnode.status({ fill: \"white\", shape: \"ring\", text: nbJour });\n\n// ** Fin Bloc ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 520,
        "y": 480,
        "wires": [
            [
                "25f4c2d57f2b9c3d",
                "6d3c60cbfc8197ad"
            ]
        ]
    },
    {
        "id": "25b74b7de9880f61",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Envoi TEMPO PARAM_NB_J_BLEU",
        "func": "var nbJour = msg.payload.PARAM_NB_J_BLEU;\n\n// ** Début Bloc ***********************************************************************************************\n\n// Nom des appareils donnés dans Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nom du device dans Gladys\nvar nomIdAppareilGladys = \"NbJourBleu\";      // nombre de la ID externa de la funcionalidad\n\n// Valor Topic y Payload para enviar a Gladys\n//           gladys/master/device/mqtt:\"   TEMPO-EDF            /feature/mqtt:\"   JOUR                   /text\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/text\";\n\n// Cambia el payload de salida según el valor del payload enviado por EDF\nmsg.payload =  nbJour;\nnode.status({ fill: \"white\", shape: \"ring\", text: nbJour });\n\n// ** Fin Bloc ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 510,
        "y": 420,
        "wires": [
            [
                "25f4c2d57f2b9c3d",
                "6d3c60cbfc8197ad"
            ]
        ]
    },
    {
        "id": "6c60d01b69c8beda",
        "type": "function",
        "z": "2b792c822e8e46f1",
        "g": "02e46bae52d39d3b",
        "name": "Envoi TEMPO PARAM_NB_J_ROUGE",
        "func": "var nbJour = msg.payload.PARAM_NB_J_ROUGE;\n\n// ** Début Bloc ***********************************************************************************************\n\n// Nombre de los dispositivos dados en Gladys\nvar nomAppareilGladys = \"TEMPO-EDF\";   // nombre del dispositivo en Gladys\nvar nomIdAppareilGladys = \"NbJourRouge\";      // nombre de la ID externa de la funcionalidad\n\n// Valor Topic y Payload para enviar a Gladys\n//           gladys/master/device/mqtt:\"   TEMPO-EDF            /feature/mqtt:\"   JOUR                   /text\nmsg.topic = \"gladys/master/device/mqtt:\" + nomAppareilGladys + \"/feature/mqtt:\" + nomIdAppareilGladys + \"/text\";\n\n// Cambia el payload de salida según el valor del payload enviado por EDF\nmsg.payload =  nbJour;\nnode.status({ fill: \"white\", shape: \"ring\", text: nbJour });\n\n// ** Fin Bloc ************************************************************************************************\n\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 520,
        "y": 540,
        "wires": [
            [
                "25f4c2d57f2b9c3d",
                "6d3c60cbfc8197ad"
            ]
        ]
    },
    {
        "id": "f4ab211ed11dc81c",
        "type": "mqtt-broker",
        "name": "192.168.0.125:1883",
        "broker": "192.168.0.125",
        "port": "1883",
        "clientid": "",
        "autoConnect": true,
        "usetls": false,
        "protocolVersion": "4",
        "keepalive": "60",
        "cleansession": true,
        "autoUnsubscribe": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthPayload": "",
        "birthMsg": {},
        "closeTopic": "",
        "closeQos": "0",
        "closePayload": "",
        "closeMsg": {},
        "willTopic": "",
        "willQos": "0",
        "willPayload": "",
        "willMsg": {},
        "userProps": "",
        "sessionExpiry": ""
    }
]

(inspirado desde Couleur EDF TEMPO dans Node Red)

Debes tener esto ahora en Node-red

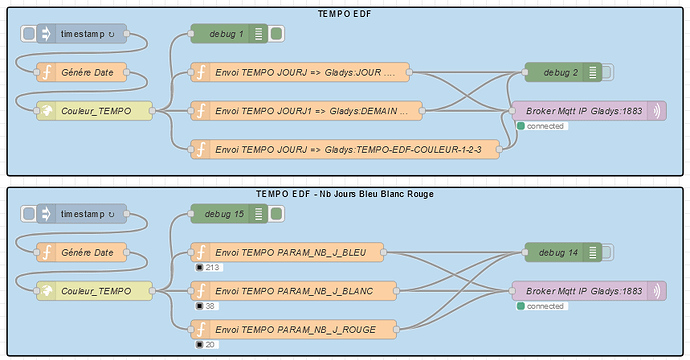

image859×449 48.4 KB

Adaptar los parámetros del broker Mqtt a sus parámetros

image456×338 6.52 KB

image573×292 5.26 KB

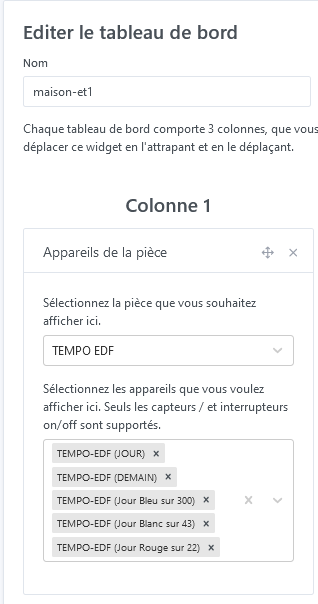

Crear en el dashboard de Gladys

image318×604 7.05 KB

Ahora el TEMPO EDF se muestra en su dashboard.

image321×407 7.31 KB

Para enviar el color Tempo por Telegram con una escena

Puedes crear una escena

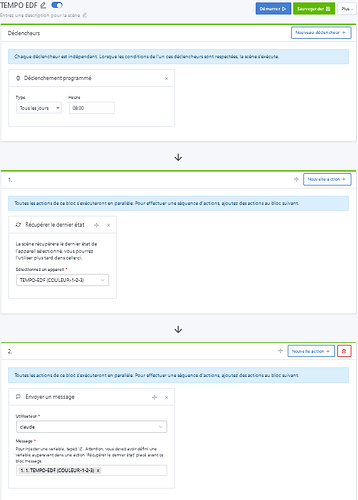

image238×306 2.74 KB

image591×825 17.8 KB

Ahora puedes recibir el TEMPO EDF a través de TELEGRAM todas las mañanas a las 8:00. :blush:

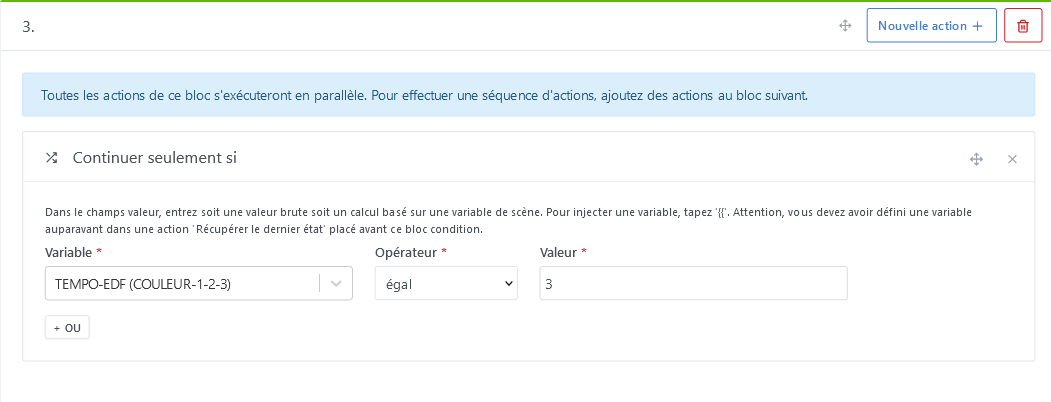

Puedes condicionar el envío al valor del color enviado creando una acción « Continuar solo si » para colocar antes de la acción enviar un mensaje

image1051×402 11.5 KB

Los colores están indicados en el código del nodo en el valor payload


// Cambia el payload de salida según el valor del payload enviado por EDF
if (tempo === "TEMPO_BLEU") {
    msg.payload = 1;
    node.status({ fill: "blue", shape: "ring", text: tempo });
}
if (tempo === "TEMPO_BLANC") {
    msg.payload = 2;
    node.status({ fill: "white", shape: "ring", text: tempo });
}

if (tempo === "TEMPO_ROUGE") {
    msg.payload = 3;
    node.status({ fill: "red", shape: "ring", text: tempo });
}

if (tempo === "NON_DEFINI") {
    msg.payload = 4;
    node.status({ fill: "grey", shape: "ring", text: tempo });
}

¡Así que ahorrarás más! :fire:

PS: 03/12/23 actualización con la adición del número de días restantes en Azul, Blanco y Rojo
La recuperación de la información TEMPO se realiza a través de los nodos inyectar a las 13:01 (EDF los cambia a las 13:00)

3 Me gusta
