Differentiation of shutters/blinds/doors

mutmut · June 6, 2025, 1:26pm

Hello,
with all my Somfy gear, I have exterior roller shutters, interior and exterior blinds, and now a garage door.

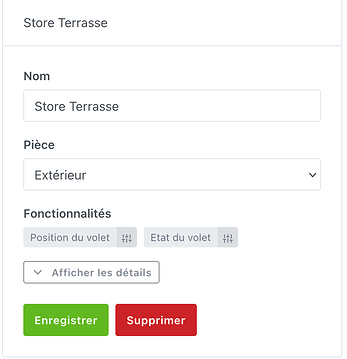

In the Matter integration, I only have shutters for the controls and states:

Is it possible to differentiate them?
And I’d even go so far as to add window and gate for later.
Shutter position / Shutter state
Blind position / Blind state
Door position / Door state
Window position / Window state

If needed, I can provide the identifiers from Matterbridge (for the ones I have).
Gate position / Gate state

pierre-gilles · June 6, 2025, 2:08pm

Hi

I’m not sure that’s possible — on the Matter side these 3 devices are « WindowCovering » clusters.

We should check whether on the Matterbridge side there is an attribute being communicated that indicates the type of each feature.

Can you take screenshots of Matterbridge for me?

mutmut · June 6, 2025, 2:27pm

You’re right, it only sends 0x0202-MA-windowCovering on the Matter side for all my devices

However, we have more info on the matterbridge-somfy plugin side and it’s properly differentiated.

Example Velux roller shutter:

[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] Device: Velux Bureau
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - uniqueName RollerShutterVeluxIOComponent
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - uiClass RollerShutter
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - serial 612f437f-xxxx-xxxx-xxxx
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/2602070
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'close', 'delayedStopIdentify', 'down', 'getName', 'identify', 'my', 'open', 'refreshMemorized1Position', 'removeLockLevel', 'resetLockLevels', 'setClosureAndLinearSpeed', 'setClosure', 'setDeployment', 'setMemorized1Position', 'setName', 'setPositionAndLinearSpeed', 'setPosition', 'setSecuredPosition', 'startIdentify', 'stop', 'stopIdentify', 'up', 'wink', 'pairOneWayController', 'setConfigState', 'unpairAllOneWayControllers', 'unpairOneWayController' ]
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Velux Bureau' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1747209967000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'normal' }, { name: 'core:RSSILevelState', type: 2, value: 62 }, { name: 'core:BatteryDiscreteLevelState', type: 3, value: 'good' }, { name: 'core:ClosureState', type: 1, value: 100 }, { name: 'core:OpenClosedState', type: 3, value: 'closed' }, { name: 'core:Memorized1PositionState', type: 1, value: 0 } ]
[23:12:22.667] [Matterbridge somfy tahoma plugin] [debug] - added with uiClass

[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] Adding device: Velux Bureau
[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] - uniqueName RollerShutterVeluxIOComponent
[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] - uiClass RollerShutter
[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] - serial 612f437f-xxxx-xxxx-xxxx
[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/2602070
[23:12:22.992] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'close', 'delayedStopIdentify', 'down', 'getName', 'identify', 'my', 'open', 'refreshMemorized1Position', 'removeLockLevel', 'resetLockLevels', 'setClosureAndLinearSpeed', 'setClosure', 'setDeployment', 'setMemorized1Position', 'setName', 'setPositionAndLinearSpeed', 'setPosition', 'setSecuredPosition', 'startIdentify', 'stop', 'stopIdentify', 'up', 'wink', 'pairOneWayController', 'setConfigState', 'unpairAllOneWayControllers', 'unpairOneWayController' ]
[23:12:22.993] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Velux Bureau' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1747209967000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'normal' }, { name: 'core:RSSILevelState', type: 2, value: 62 }, { name: 'core:BatteryDiscreteLevelState', type: 3, value: 'good' }, { name: 'core:ClosureState', type: 1, value: 100 }, { name: 'core:OpenClosedState', type: 3, value: 'closed' }, { name: 'core:Memorized1PositionState', type: 1, value: 0 } ]
[23:12:23.007] [Matterbridge somfy tahoma plugin] [debug] - duration 30
[23:12:23.007] [Velux Bureau] [debug] new MatterbridgeEndpoint: 0x0202-MA-windowCovering id: Velux Bureau number: undefined taglist: undefined
[23:12:23.009] [Matterbridge] [debug] Adding bridged endpoint matterbridge-somfy-tahoma:Velux Bureau to Matterbridge aggregator node
[23:12:23.057] [Endpoint] [info] Matterbridge.Matterbridge.VeluxBureau ready endpoint#: 37 type: MA_windowCovering (0x202) behaviors: ✓descriptor 💤matterbridge ✓identify ✓groups ✓windowCovering ✓bridgedDeviceBasicInformation ✓powerSource
[23:12:23.108] [Matterbridge] [info] Subscribing attributes for endpoint Velux Bureau (VeluxBureau) plugin matterbridge-somfy-tahoma
[23:12:23.116] [Matterbridge] [info] Added and registered bridged endpoint (7/7) Velux Bureau (VeluxBureau) for plugin matterbridge-somfy-tahoma

Example interior blind:

[23:12:22.671] [Matterbridge somfy tahoma plugin] [debug] Device: Velux Store
[23:12:22.671] [Matterbridge somfy tahoma plugin] [debug] - uniqueName VerticalInteriorBlindVeluxIOComponent
[23:12:22.672] [Matterbridge somfy tahoma plugin] [debug] - uiClass Screen
[23:12:22.672] [Matterbridge somfy tahoma plugin] [debug] - serial 04064452-xxxx-xxxx-xxxx
[23:12:22.672] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/9733440
[23:12:22.672] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'close', 'delayedStopIdentify', 'down', 'getName', 'identify', 'my', 'open', 'refreshMemorized1Position', 'removeLockLevel', 'resetLockLevels', 'setClosure', 'setMemorized1Position', 'setName', 'setPosition', 'setSecuredPosition', 'startIdentify', 'stop', 'stopIdentify', 'up', 'wink', 'pairOneWayController', 'setConfigState', 'unpairAllOneWayControllers', 'unpairOneWayController' ]
[23:12:22.673] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Velux Store' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1747209968000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'normal' }, { name: 'core:RSSILevelState', type: 2, value: 80 }, { name: 'core:ClosureState', type: 1, value: 100 }, { name: 'core:OpenClosedState', type: 3, value: 'closed' } ]
[23:12:22.673] [Matterbridge somfy tahoma plugin] [debug] - added with uiClass

[23:12:23.184] [Matterbridge somfy tahoma plugin] [debug] Adding device: Velux Store
[23:12:23.184] [Matterbridge somfy tahoma plugin] [debug] - uniqueName VerticalInteriorBlindVeluxIOComponent
[23:12:23.184] [Matterbridge somfy tahoma plugin] [debug] - uiClass Screen
[23:12:23.184] [Matterbridge somfy tahoma plugin] [debug] - serial 04064452-xxxx-xxxx-xxxx
[23:12:23.184] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/9733440
[23:12:23.185] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'close', 'delayedStopIdentify', 'down', 'getName', 'identify', 'my', 'open', 'refreshMemorized1Position', 'removeLockLevel', 'resetLockLevels', 'setClosure', 'setMemorized1Position', 'setName', 'setPosition', 'setSecuredPosition', 'startIdentify', 'stop', 'stopIdentify', 'up', 'wink', 'pairOneWayController', 'setConfigState', 'unpairAllOneWayControllers', 'unpairOneWayController' ]
[23:12:23.185] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Velux Store' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1747209968000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'normal' }, { name: 'core:RSSILevelState', type: 2, value: 80 }, { name: 'core:ClosureState', type: 1, value: 100 }, { name: 'core:OpenClosedState', type: 3, value: 'closed' } ]
[23:12:23.185] [Matterbridge somfy tahoma plugin] [debug] - duration 30
[23:12:23.185] [Velux Store] [debug] new MatterbridgeEndpoint: 0x0202-MA-windowCovering id: Velux Store number: undefined taglist: undefined
[23:12:23.189] [Matterbridge] [debug] Adding bridged endpoint matterbridge-somfy-tahoma:Velux Store to Matterbridge aggregator node
[23:12:23.199] [Endpoint] [info] Matterbridge.Matterbridge.VeluxStore ready endpoint#: 40 type: MA_windowCovering (0x202) behaviors: ✓descriptor 💤matterbridge ✓identify ✓groups ✓windowCovering ✓bridgedDeviceBasicInformation ✓powerSource
[23:12:23.221] [Matterbridge] [info] Subscribing attributes for endpoint Velux Store (VeluxStore) plugin matterbridge-somfy-tahoma
[23:12:23.221] [Matterbridge] [info] Added and registered bridged endpoint (10/10) Velux Store (VeluxStore) for plugin matterbridge-somfy-tahoma

I’ll see if I can find any info on Matter regarding the differentiation.

pierre-gilles · June 6, 2025, 2:31pm

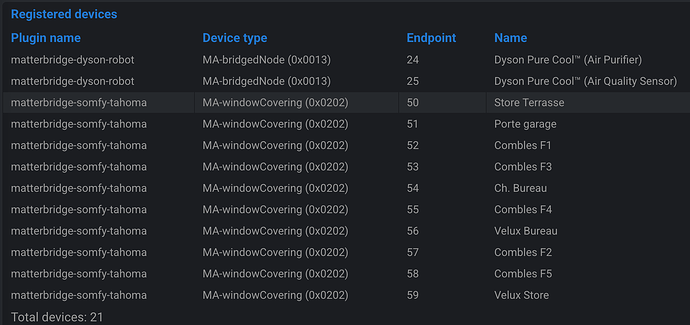

Can you take screenshots of the Matterbridge interface for me?

mutmut · June 6, 2025, 2:43pm

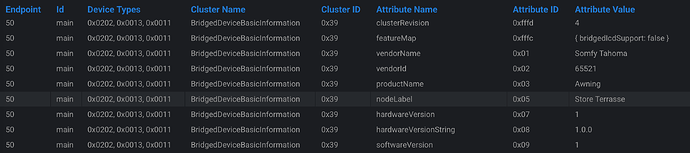

I just found in the Matter logs of Matterbridge a « line » that seems exposed to show the device type that also appears in the Matterbrige UI:
MA_windowCovering(0x33)/BridgedDeviceBasicInformation(0x39)/productName(0x3)="GarageDoor" (for example)

pierre-gilles · June 6, 2025, 3:02pm

I’m not sure that’s part of the Matter standard; it’s just an open field (productName) that’s populated by Matterbridge.

For me to be able to differentiate, there needs to be an official way to identify the device type.

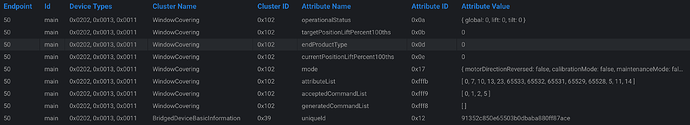

Can you take a full screenshot for me? ^^

mutmut · June 6, 2025, 3:18pm

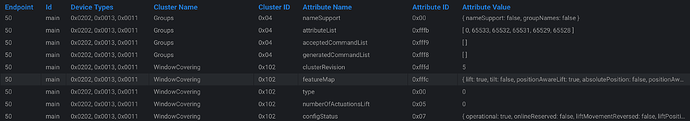

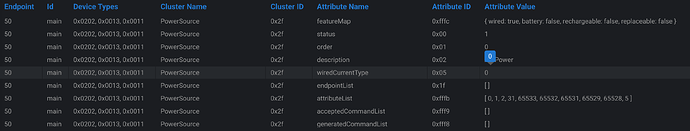

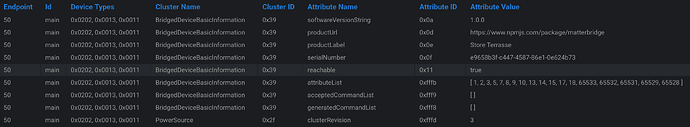

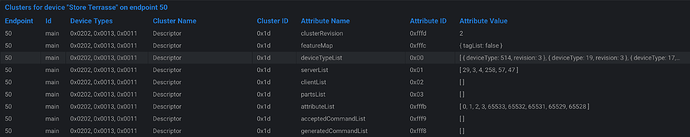

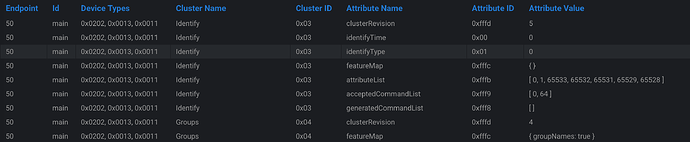

Do you need all the Clusters for device lines from one of the devices?
The thing is I tested the different lines and only uniqueId, productName, nodeLabel and serialNumber differ, all the others are absolutely identical

pierre-gilles · June 6, 2025, 3:28pm

In that case you need to talk to the developer of the Somfy Matterbridge integration!

Often, it’s the « featureMap » attribute that contains booleans to identify what it is.

Some thermostat devices, for example, differentiate heaters from air conditioners by using an attribute « heating: true » vs « cooling: true »

mutmut · June 18, 2025, 12:09pm

Hi @pierre-gilles

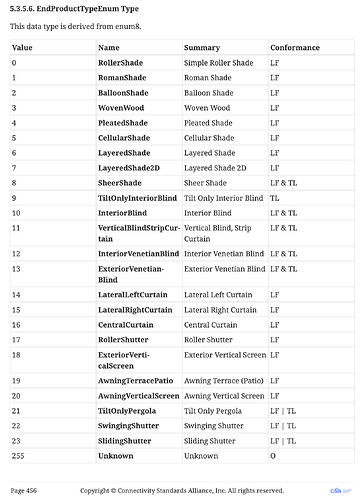

Are you familiar with the EndProductTypeEnum in your Matter integration?

github.com/Luligu/matterbridge-somfy-tahoma

What kind of devices is exposed ?

ouvert 01:46PM - 06 Jun 25 UTC

fermé 02:00PM - 29 Oct 25 UTC

smuteau

question

Hi @Luligu , I just added this week a garage's door motor (Serenia IO) in my so…mfy ecosystem. There are 2 devices in one discovered in Matterbridge : motor and light. ``` [23:12:22.656] [Matterbridge somfy tahoma plugin] [debug] Device: Porte garage [23:12:22.656] [Matterbridge somfy tahoma plugin] [debug] - uniqueName DynamicGarageDoor [23:12:22.656] [Matterbridge somfy tahoma plugin] [debug] - uiClass GarageDoor [23:12:22.657] [Matterbridge somfy tahoma plugin] [debug] - serial 0140225e-xxxx-xxxx-xxxx [23:12:22.657] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/14590173 [23:12:22.657] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'close', 'delayedStopIdentify', 'executeManufacturerProcedure', 'getName', 'goToAlias', 'identify', 'open', 'readManufacturerData', 'removeLockLevel', 'resetLockLevels', 'saveAlias', 'setName', 'startIdentify', 'stop', 'stopIdentify', 'wink', 'writeManufacturerData', 'runManufacturerSettingsCommand', 'keepOneWayControllersAndDeleteNode', 'pairOneWayController', 'sendIOKey', 'setConfigState', 'unpairAllOneWayControllersAndDeleteNode', 'unpairAllOneWayControllers', 'unpairOneWayController' ] [23:12:22.657] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Porte garage' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1749065825000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'good' }, { name: 'core:RSSILevelState', type: 2, value: 88 }, { name: 'core:ReachedAliasesState', type: 10, value: [ ] }, { name: 'core:OpenClosedState', type: 3, value: 'closed' } ] [23:12:22.657] [Matterbridge somfy tahoma plugin] [debug] - added with commands "open", "close" and "stop" ``` So GarageDoor was added, I see it in Devices. ``` [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] Device: Lumière garage [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] - uniqueName DynamicLight [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] - uiClass Light [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] - serial 598870ea-xxxx-xxxx-xxxx [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] - deviceURL io://xxxx-xxxx-xxxx/14590174 [23:12:22.658] [Matterbridge somfy tahoma plugin] [debug] - commands [ 'addLockLevel', 'advancedRefresh', 'delayedStopIdentify', 'executeManufacturerProcedure', 'getName', 'goToAlias', 'identify', 'off', 'on', 'readManufacturerData', 'removeLockLevel', 'resetLockLevels', 'saveAlias', 'setName', 'setOnOff', 'startIdentify', 'stopIdentify', 'wink', 'writeManufacturerData', 'runManufacturerSettingsCommand', 'keepOneWayControllersAndDeleteNode', 'pairOneWayController', 'sendIOKey', 'setConfigState', 'unpairAllOneWayControllersAndDeleteNode', 'unpairAllOneWayControllers', 'unpairOneWayController' ] [23:12:22.659] [Matterbridge somfy tahoma plugin] [debug] - states [ { name: 'core:NameState', type: 3, value: 'Lumière garage' }, { name: 'core:PriorityLockTimerState', type: 1, value: 0 }, { name: 'core:CommandLockLevelsState', type: 3, value: '[]', lastUpdateTime: 1749065859000 }, { name: 'core:StatusState', type: 3, value: 'available' }, { name: 'core:DiscreteRSSILevelState', type: 3, value: 'good' }, { name: 'core:RSSILevelState', type: 2, value: 84 }, { name: 'core:OnOffState', type: 3, value: 'on' }, { name: 'core:ReachedAliasesState', type: 10, value: [ ] } ] ``` But Light was not added, nothing in Devices. I also have some Netatmo devices coming from partner's integration in Tahoma app and I don't see them in Matterbridge but I can see them in logs. Logs showed me that some Sonos bridge ... but I have absolutly no Sonos devices. Maybe I clicked once on Tahoma app for adding Sonos to test, maybe. `[23:12:22.650] [Matterbridge somfy tahoma plugin] [info] Discovered 39 TaHoma devices ` `[23:12:22.704] [Matterbridge somfy tahoma plugin] [info] Discovered 19 TaHoma screens ` So if I understand well, only "opening stuff" are exposed as Matter devices, is that correct ? Do you plan to expose more ? Thanks again for that wonderful plugin !

It’s what potentially allows differentiating device types.

pierre-gilles · June 18, 2025, 6:58pm

That doesn’t ring a bell!

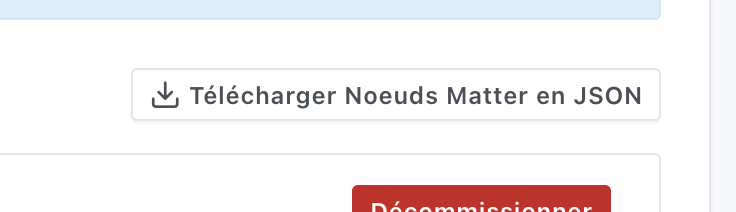

Is that an attribute you find when you download Matter nodes as JSON?

Search using different types of case.

mutmut · June 20, 2025, 9:43am

J’ai pris un exemple et je vois bien le EndProductType :

              {
                "id": "258",
                "name": "WindowCovering",
                "attributes": [
                  "0",
                  "1",
                  "2",
                  "3",
                  "4",
                  "5",
                  "6",
                  "7",
                  "8",
                  "9",
                  "10",
                  "11",
                  "12",
                  "13",
                  "14",
                  "15",
                  "16",
                  "17",
                  "18",
                  "19",
                  "23",
                  "26",
                  "65528",
                  "65529",
                  "65531",
                  "65532",
                  "65533",

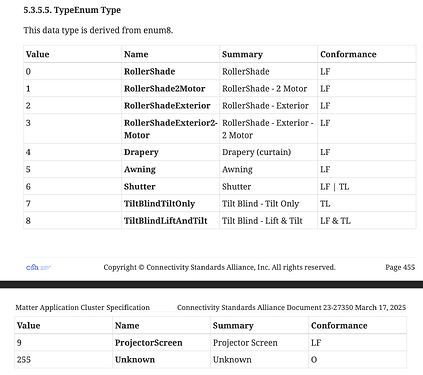

-->>              "type",
                  "configStatus",
                  "operationalStatus",
-->>              "endProductType",
                  "mode",
                  "safetyStatus",
                  "physicalClosedLimitLift",
                  "physicalClosedLimitTilt",
                  "currentPositionLift",
                  "currentPositionTilt",
                  "numberOfActuationsLift",
                  "numberOfActuationsTilt",
                  "currentPositionLiftPercentage",
                  "currentPositionTiltPercentage",
                  "targetPositionLiftPercent100ths",
                  "targetPositionTiltPercent100ths",
                  "currentPositionLiftPercent100ths",
                  "currentPositionTiltPercent100ths",
                  "installedOpenLimitLift",
                  "installedClosedLimitLift",
                  "installedOpenLimitTilt",
                  "installedClosedLimitTilt",
                  "clusterRevision",
                  "featureMap",
                  "attributeList",
                  "acceptedCommandList",
                  "generatedCommandList"
                ],
                "commands": [
                  "0",
                  "1",
                  "2",
                  "4",
                  "5",
                  "7",
                  "8",
                  "upOrOpen",
                  "downOrClose",
                  "stopMotion",
                  "goToLiftValue",
                  "goToLiftPercentage",
                  "goToTiltValue",
                  "goToTiltPercentage"
                ],
                "all_keys": [
                  "id",
                  "name",
                  "revision",
                  "_type",
                  "supportedFeatures",
                  "isUnknown",
                  "endpointId",
                  "attributes",
                  "events",
                  "commands",
                  "subscribeAllAttributes",
                  "_triggerAttributeUpdate",
                  "_triggerEventUpdate",
                  "isAttributeSupported",
                  "isAttributeSupportedByName",
                  "isCommandSupported",
                  "isCommandSupportedByName",
                  "getTypeAttribute",
                  "setTypeAttribute",
                  "subscribeTypeAttribute",
                  "addTypeAttributeListener",
                  "removeTypeAttributeListener",
                  "getConfigStatusAttribute",
                  "setConfigStatusAttribute",
                  "subscribeConfigStatusAttribute",
                  "addConfigStatusAttributeListener",
                  "removeConfigStatusAttributeListener",
                  "getOperationalStatusAttribute",
                  "setOperationalStatusAttribute",
                  "subscribeOperationalStatusAttribute",
                  "addOperationalStatusAttributeListener",
                  "removeOperationalStatusAttributeListener",
                  "getEndProductTypeAttribute",
                  "setEndProductTypeAttribute",
                  "subscribeEndProductTypeAttribute",
                  "addEndProductTypeAttributeListener",
                  "removeEndProductTypeAttributeListener",
                  "getModeAttribute",
                  "setModeAttribute",
                  "subscribeModeAttribute",
                  "addModeAttributeListener",
                  "removeModeAttributeListener",
                  "getSafetyStatusAttribute",
                  "setSafetyStatusAttribute",
                  "subscribeSafetyStatusAttribute",
                  "addSafetyStatusAttributeListener",
                  "removeSafetyStatusAttributeListener",
                  "getPhysicalClosedLimitLiftAttribute",
                  "setPhysicalClosedLimitLiftAttribute",
                  "subscribePhysicalClosedLimitLiftAttribute",
                  "addPhysicalClosedLimitLiftAttributeListener",
                  "removePhysicalClosedLimitLiftAttributeListener",
                  "getPhysicalClosedLimitTiltAttribute",
                  "setPhysicalClosedLimitTiltAttribute",
                  "subscribePhysicalClosedLimitTiltAttribute",
                  "addPhysicalClosedLimitTiltAttributeListener",
                  "removePhysicalClosedLimitTiltAttributeListener",
                  "getCurrentPositionLiftAttribute",
                  "setCurrentPositionLiftAttribute",
                  "subscribeCurrentPositionLiftAttribute",
                  "addCurrentPositionLiftAttributeListener",
                  "removeCurrentPositionLiftAttributeListener",
                  "getCurrentPositionTiltAttribute",
                  "setCurrentPositionTiltAttribute",
                  "subscribeCurrentPositionTiltAttribute",
                  "addCurrentPositionTiltAttributeListener",
                  "removeCurrentPositionTiltAttributeListener",
                  "getNumberOfActuationsLiftAttribute",
                  "setNumberOfActuationsLiftAttribute",
                  "subscribeNumberOfActuationsLiftAttribute",
                  "addNumberOfActuationsLiftAttributeListener",
                  "removeNumberOfActuationsLiftAttributeListener",
                  "getNumberOfActuationsTiltAttribute",
                  "setNumberOfActuationsTiltAttribute",
                  "subscribeNumberOfActuationsTiltAttribute",
                  "addNumberOfActuationsTiltAttributeListener",
                  "removeNumberOfActuationsTiltAttributeListener",
                  "getCurrentPositionLiftPercentageAttribute",
                  "setCurrentPositionLiftPercentageAttribute",
                  "subscribeCurrentPositionLiftPercentageAttribute",
                  "addCurrentPositionLiftPercentageAttributeListener",
                  "removeCurrentPositionLiftPercentageAttributeListener",
                  "getCurrentPositionTiltPercentageAttribute",
                  "setCurrentPositionTiltPercentageAttribute",
                  "subscribeCurrentPositionTiltPercentageAttribute",
                  "addCurrentPositionTiltPercentageAttributeListener",
                  "removeCurrentPositionTiltPercentageAttributeListener",
                  "getTargetPositionLiftPercent100thsAttribute",
                  "setTargetPositionLiftPercent100thsAttribute",
                  "subscribeTargetPositionLiftPercent100thsAttribute",
                  "addTargetPositionLiftPercent100thsAttributeListener",
                  "removeTargetPositionLiftPercent100thsAttributeListener",
                  "getTargetPositionTiltPercent100thsAttribute",
                  "setTargetPositionTiltPercent100thsAttribute",
                  "subscribeTargetPositionTiltPercent100thsAttribute",
                  "addTargetPositionTiltPercent100thsAttributeListener",
                  "removeTargetPositionTiltPercent100thsAttributeListener",
                  "getCurrentPositionLiftPercent100thsAttribute",
                  "setCurrentPositionLiftPercent100thsAttribute",
                  "subscribeCurrentPositionLiftPercent100thsAttribute",
                  "addCurrentPositionLiftPercent100thsAttributeListener",
                  "removeCurrentPositionLiftPercent100thsAttributeListener",
                  "getCurrentPositionTiltPercent100thsAttribute",
                  "setCurrentPositionTiltPercent100thsAttribute",
                  "subscribeCurrentPositionTiltPercent100thsAttribute",
                  "addCurrentPositionTiltPercent100thsAttributeListener",
                  "removeCurrentPositionTiltPercent100thsAttributeListener",
                  "getInstalledOpenLimitLiftAttribute",
                  "setInstalledOpenLimitLiftAttribute",
                  "subscribeInstalledOpenLimitLiftAttribute",
                  "addInstalledOpenLimitLiftAttributeListener",
                  "removeInstalledOpenLimitLiftAttributeListener",
                  "getInstalledClosedLimitLiftAttribute",
                  "setInstalledClosedLimitLiftAttribute",
                  "subscribeInstalledClosedLimitLiftAttribute",
                  "addInstalledClosedLimitLiftAttributeListener",
                  "removeInstalledClosedLimitLiftAttributeListener",
                  "getInstalledOpenLimitTiltAttribute",
                  "setInstalledOpenLimitTiltAttribute",
                  "subscribeInstalledOpenLimitTiltAttribute",
                  "addInstalledOpenLimitTiltAttributeListener",
                  "removeInstalledOpenLimitTiltAttributeListener",
                  "getInstalledClosedLimitTiltAttribute",
                  "setInstalledClosedLimitTiltAttribute",
                  "subscribeInstalledClosedLimitTiltAttribute",
                  "addInstalledClosedLimitTiltAttributeListener",
                  "removeInstalledClosedLimitTiltAttributeListener",
                  "getClusterRevisionAttribute",
                  "setClusterRevisionAttribute",
                  "subscribeClusterRevisionAttribute",
                  "addClusterRevisionAttributeListener",
                  "removeClusterRevisionAttributeListener",
                  "getFeatureMapAttribute",
                  "setFeatureMapAttribute",
                  "subscribeFeatureMapAttribute",
                  "addFeatureMapAttributeListener",
                  "removeFeatureMapAttributeListener",
                  "getAttributeListAttribute",
                  "setAttributeListAttribute",
                  "subscribeAttributeListAttribute",
                  "addAttributeListAttributeListener",
                  "removeAttributeListAttributeListener",
                  "getAcceptedCommandListAttribute",
                  "setAcceptedCommandListAttribute",
                  "subscribeAcceptedCommandListAttribute",
                  "addAcceptedCommandListAttributeListener",
                  "removeAcceptedCommandListAttributeListener",
                  "getGeneratedCommandListAttribute",
                  "setGeneratedCommandListAttribute",
                  "subscribeGeneratedCommandListAttribute",
                  "addGeneratedCommandListAttributeListener",
                  "removeGeneratedCommandListAttributeListener",
                  "upOrOpen",
                  "downOrClose",
                  "stopMotion",
                  "goToLiftValue",
                  "goToLiftPercentage",
                  "goToTiltValue",
                  "goToTiltPercentage"
                ]
              }

En essayant de regarder un peu le code de Matterbridge, j’ai l’impression que ces 2 paramètres (Type et EndProductType) restent sur la même valeur par défaut, ce qui correspond à du Roller Shade dans la spec Matter 1.4.1 :

pierre-gilles · June 20, 2025, 12:01pm

Excellent

Can you create a feature request « Matter: Differentiate shutters/blinds/doors with endProductType »?

mutmut · June 20, 2025, 12:36pm

and here it is : [Matter] Différencier les volets/stores/portes avec le endProductType

Topic		Replies	Views
Dev Integration pour Zoneminder Développement	31	1593	November 22, 2021
[V4] Réflexion intégration télécommande Développement	58	2133	March 10, 2022
Zwave - Aide pour la v4 Configuration	74	5588	October 10, 2021
Affichage des noms des fonctionnalités au lieu du nom des devices pour certaines intégrations! Développement	36	2924	September 20, 2022
Scène avec un bouton (double ou simple clic) Développement	73	3537	December 13, 2022

Differentiation of shutters/blinds/doors

Related topics
