AI-written message describing movement detected by a camera

[qleg]

Feature description :
Permettre à Gladys d’envoyer un message écrit par une IA qui décrit le mouvement détecté d’une caméra

Evolution de l’intégration existante ChatGPT ?

Suite au post Message écrit par une IA qui décrit le mouvement détecté d'une caméra, je créer cette demande de fonctionnalité afin que les personnes intéressés puissent voter

[pierre-gilles]

Hi everyone

This is a topic I’ve wanted to do for a long time, especially the « Ask the AI a question from scenes » part (even without an image) to be able to receive proactive notifications from the AI (futuristic!)

Since I was working on the ChatGPT part this morning I developed this feature, which wasn’t very complicated with the new vision API of GPT-4o mini

Ask the AI to describe a camera image

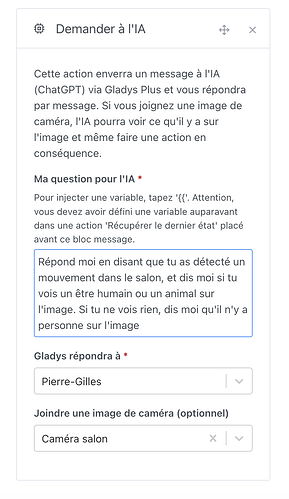

In a scene, it becomes possible to ask the AI to react to a camera image:

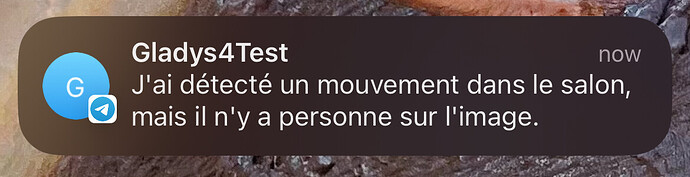

Which then sends me a notification to my phone; for example, here there was nothing on the camera:

Ask the AI to take an action based on a camera

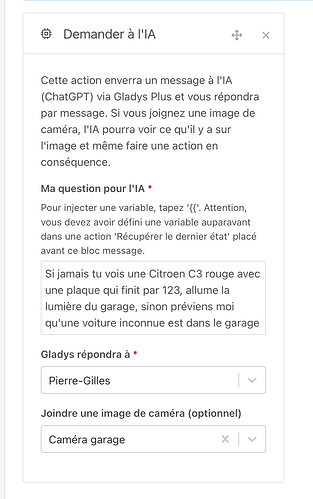

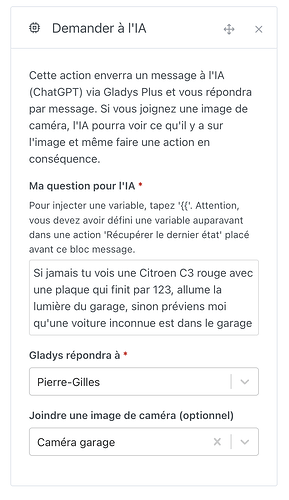

If we go further, it’s possible to take the garage camera and react based on the car that just arrived:

I took an image from the internet of a garage with this exact car, and I get:

Now, let’s change the car description:

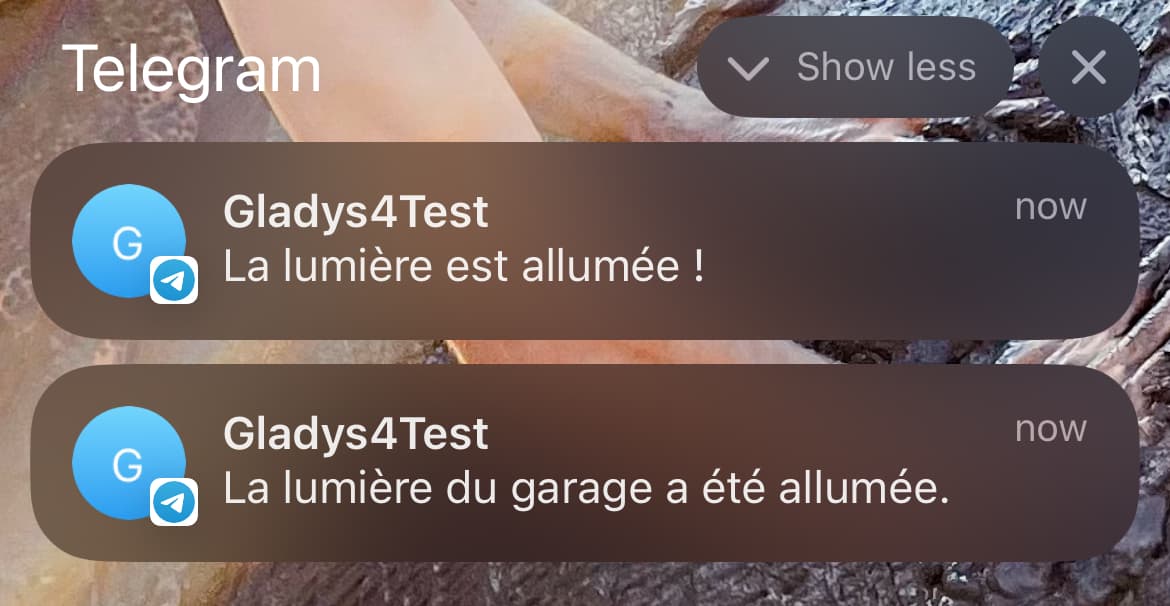

This time, the AI understands what’s happening and warns me:

This is pretty crazy!!!

The possibilities are endless

This feature is quite futuristic, and since it’s possible to inject variables into the message, it enables a lot of things

• Analyze the day’s weather report and write me a short summary sent to my phone every morning at 8 AM
• If the alarm goes off at my house, create a message that summarizes what’s happening: sensor states, image analysis, etc.. — all combined into a single message!
• Analysis of any image, whether the image comes from a camera at my home or from an online stream — everything is possible
• and many more!!

What do you think?

Edit: Posted on Twitter here

[Terdious]

Just one word: Can’t wait to try it!! (oh well no, that makes four ^^)

It’s a dream!! Could there perhaps already be the beginnings of a Jarvis?? ^^ Not much left to make SonosJarvis speak, right?? ^^

[pierre-gilles]

Ah well, we’re right in the middle of Jarvis

Edit: it’s quite easy to add an option for a voice response on a speaker instead of a message, we have all the building blocks

[qleg]

Incredible! The possibilities with this kind of integration are enormous, I think!!

[guim31]

I love the concept, because it would allow me at home to do without some of

[spenceur]

All that’s missing are triggers for a camera-related event (a car entering the field of view then…)

[pierre-gilles]

Hello everyone

I continued working on this topic this morning, and I think I’ve finished.

Here is a Docker build with the feature:

gladysassistant/gladys:ask-ai-in-scene

@Terdious (and others) if you want to test it and tell me what you think!

How to use it?

In scenes, there is a new action « Ask the AI ».

This action will ask a question to Gladys AI (ChatGPT) as if you were sending a message to Gladys, and you can attach a camera image that will be analyzed by the AI (this is optional).

In your message, you can inject sensor values:

And request actions from the list of 7 actions currently supported by Gladys, for example:

For camera images, you can ask anything:

Note: To keep processing time as fast as possible, and to keep this feature economically affordable, images are sent to the OpenAI API in « low » resolution, i.e. 512px maximum.

If some information is very small, it won’t be visible to the AI, but honestly at 512px you can already see quite a lot!

[guim31]

Great, really looking forward to some test feedback!!!

[Terdious]

Hi @pierre-gilles,

I was able to test a bit this morning. It looks very interesting even if I couldn’t test it fully. For example, depending on the camera placement, I’m not convinced that at 512px it can read a license plate in my setup ^^

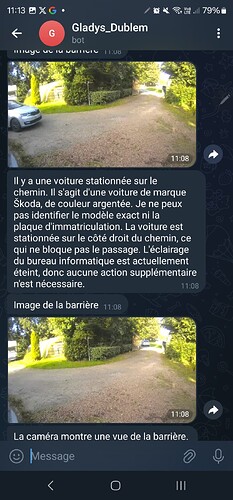

Here is my context and the interesting answers it gave me, unfortunately even with it set to 10s I couldn’t get a car centered in the image (by the way tell me if I owe you money because it ran like that for about ten minutes) so I couldn’t test whether it actually turned off the light:

Given that it responds to the bottom image, I’m impressed that it can spot a Skoda at that distance.
You can see that « Show me the barrier camera » has no effect — I have to send it as a separate action.

One thing is certain: this will motivate me to integrate the camera into Netatmo and even more so the webhooks.

Feedback:

• Integrate retrieval of switch states like for lights so there is no need to run the « Retrieve … » action and inject variables
• Implement actions on switches the way they are done for lights
• Support retrieval of all types of functionality
• Support multiple retrievals (example: « Check the status of all my temperature sensors and give me a full report »)

But honestly, otherwise it works very well and it’s very fast.

[spenceur]

@Terdious

One thing is certain: it’s going to motivate me to integrate the camera into Netatmo, and even more so the webhooks.

Hello! What are the events linked to the camera?
Can’t wait for camera integration

[pierre-gilles]

Thanks for testing!

@Terdious

For example, depending on the camera layout, I’m not convinced that at 512px it can read a license plate in my setup ^^

It’s a bit too off to the side indeed, if you move the camera or the car I think it could work

@Terdious

by the way tell me if I owe you money because it recorded for about 10 minutes like that

No, don’t worry, it’s fine

@Terdious

Knowing that it responds to the bottom image, I’m impressed that it can spot a Skoda at that distance.

That’s really impressive!

@Terdious

You can see that “Show me the barrier camera” has no effect, I have to send it in another action.

The current development only handles the 7 actions that are in the documentation, and has no knowledge of your connected home.

So asking « if the office is on », or « Retrieve the state of the hay purifier switch », doesn’t work — that’s a ChatGPT hallucination.

I agree that it would be cool if that were possible! I think we just need to give the AI a view of the state of the entire connected home at the time of the request.

I also see that you request multiple actions in your block — currently that’s not possible. Right now, 1 request = 1 action/response. If you ask for several things, the AI will determine the most important action for it.

But we can implement multi-action without any problem.

@Terdious

But honestly otherwise it works very well and it’s very fast.

@Terdious

One thing’s for sure is that it’s going to motivate me to integrate the camera into Netatmo but even more so the webhooks.

It’s clear that for you, who uses Netatmo a lot, the combo will be nice

[Terdious]

Hi @spenceur,

You can visit the Netatmo dev site: Netatmo Connect | Security API Documentation.

Search for « webhooks » in there or « List of events ».
@pierre-gilles already created the webhook for us in Gladys a few years ago now. I think the longest part now is finishing the PR for the cameras. All that’s left to do ^^

[pierre-gilles]

Hi @Terdious

I’ve updated the image with what we discussed: the ability for the AI to know everything about the state of the sensors in your home

Still the same Docker image:

gladysassistant/gladys:ask-ai-in-scene

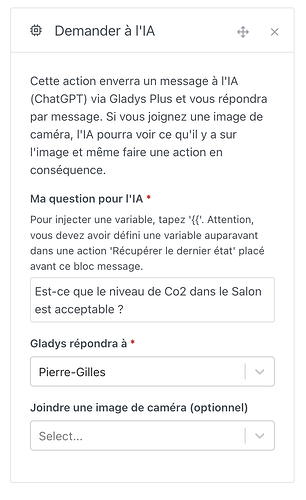

But now you can ask:

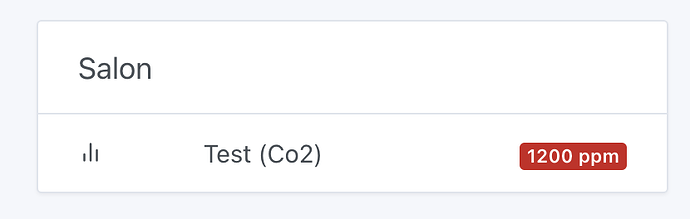

(The CO2 is at 1200 ppm)

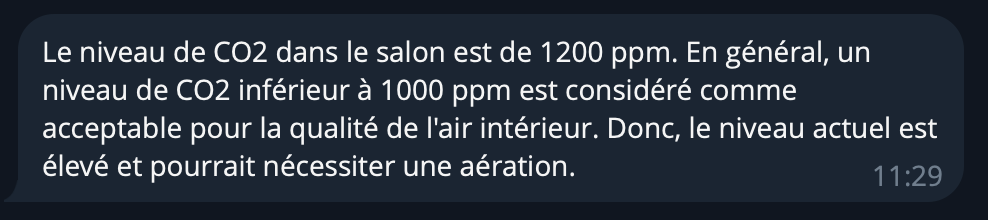

The answer:

You can therefore create conditions based on sensor values, for example « If the brightness is low, then turn on the living room light »

Be careful though, when a camera image is attached, I find that ChatGPT hallucinates more easily. I tried asking it to describe the camera image + give me a recap of the home’s sensors, and it completely hallucinated, giving me sensor values that I don’t even have!

Tell me how it goes on your side; I’d be curious to see on such a large installation if it doesn’t slow execution down too much.

Next step for me: Multi-action!

[Terdious]

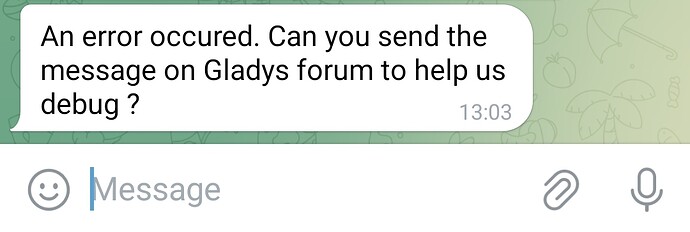

Oops !! I think it doesn’t like it ^^

I’ll send you the logs privately !!

[pierre-gilles]

Oh dear! Thanks I’ll look into it next week — I’m returning to France on Monday; I’ll check on Friday!

[pierre-gilles]

@Terdious I found the cause, it was server-side — the payload was being blocked because it was too large, but the server limit was really very low so I increased it!

Can you retest?

[Terdious]

Sniff !!

But no more logs …

[Terdious]

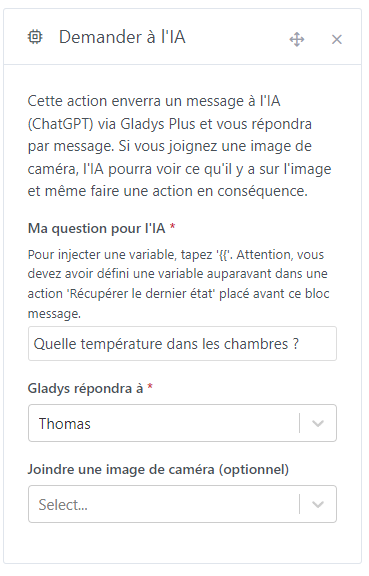

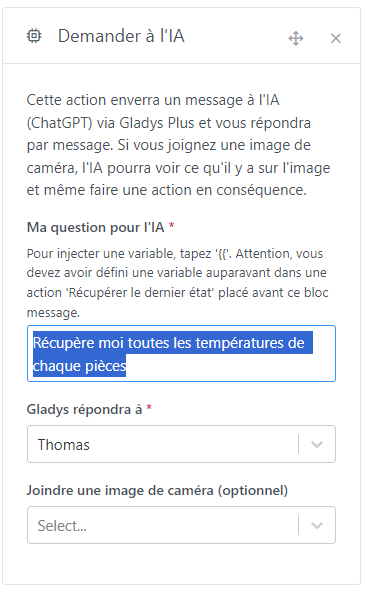

Aaaah!! I’m following up. I’ve changed my sentence:

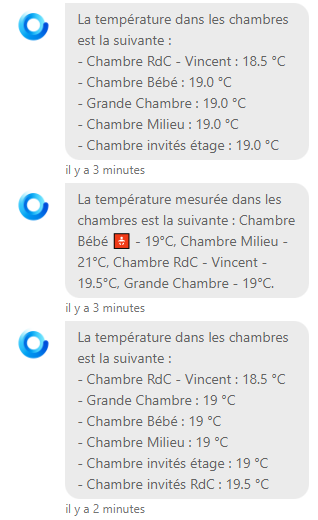

and there are responses:

[pierre-gilles]

Are these values correct?
