[Broadlink] Adding AV amp, fan and Air Conditioning/Heating devices

[mutmut]

Hello,
I bought 2 RM4 mini units to control the TV/Dyson in the living room and the heat pump in the master bedroom.
However, I saw that only the TV appeared in the list of devices:

Is it possible to add an amplifier, a fan and an air conditioner/heater?
Thanks in advance!

[pierre-gilles]

Hi

Your Dyson is already controllable via Matter, right?

Which brand is your heat pump?

Regarding the Broadlink integration, it was originally developed by @AlexTrovato, who has been a bit less available since he became a dad.

If we want this integration to keep evolving, someone would need to take the lead on development.

If anyone reading this would like to contribute, feel free to jump in

[mutmut]

@pierre-gilles

Your Dyson is already controllable via Matter, right?

yes and also via IR. For now I have more features via the remote control than via Matter, which hasn’t implemented all the functions (speed +/-, auto/manual mode, timer, oscillation angle).

@pierre-gilles

What brand is your heat pump?

haha, it’s Innova, an unknown Italian brand
It’s a standalone heat pump with a single indoor unit and one external intake and one outlet, controllable via IR.
I used to control it via Jeedom + Orvibo AllOne and I want to switch to Gladys + Broadlink RM4 mini (well the RM4 is already in place now).
I tested with the Broadlink app and it works very well, now all that’s left is to switch to Gladys ^^

@pierre-gilles

Regarding the Broadlink integration, it was originally developed by @AlexTrovato, who has been a bit less available since he became a dad.

yes I had seen the posts about Broadlink.

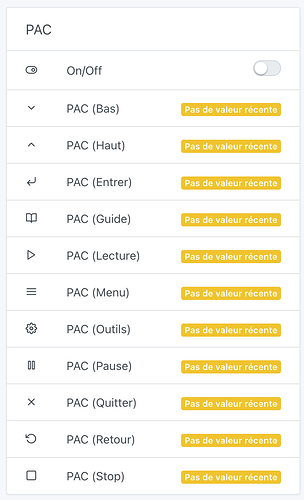

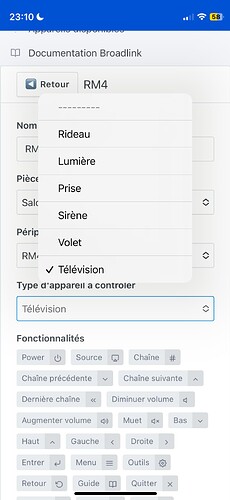

I tried assigning the different IR signals to a TV device (and it’s OK via the test buttons in the integration) but on the dashboard you can do nothing except on/off and that’s where the problem lies.

We would need to have a real remote control with push buttons.
Is there a dev on your list for that?

I’m not a dev (right, I already said that? ) but I’d be interested in looking into it.
Do you think that with AI assistance it could work?
I remember your livecoding on Matter and the AI did some very strange things…
Anyway, I can help but not do 100% of the development.

[pierre-gilles]

@mutmut

Is that a dev on your list?

Not at all I have a lot of dev work planned on the core, and on the integration side I dedicate all my availability to Matter, which for me is the future.

The ideal would be for Broadlink to adapt to Matter; this kind of proprietary API, to me, is not the future at all…

I see several possibilities for you!

• Either you try to modify the Gladys integration — you can get by with AI, but I won’t hide that we expect senior-engineer-level quality for the implementation and tests, so it’s not exactly simple.
• You can try developing a matterbridge plugin. In that case, it’ll be much simpler and future-proof. With AI, I think you can put something together quite easily!

In the long run, I’m really betting that 100% of products will be Matter, so products with a non-standard, proprietary API — I really don’t believe in them and I’m not investing in them personally

[mutmut]

[quote=« pierre-gilles, post:4, topic:9685 »]
[

[pierre-gilles]

Oops sorry No, not planned either!

There had been a start of development by the same developer who did the Broadlink integration a few years ago, but it didn’t come to fruition:

[V4] Réflexion intégration télécommande

Salut J’ai pris le temps de tester la partie telecommande tv Ca fonctionne au poil a part un detail pour ma tv il y a 2 bouttons differents pour l’allumage et l’extinction et rien n’est prevu sur la télécommande pour on dirait Sinon tu prevois un modele type clim ? LA mienne est pilotable ( comme la plupart ) en Rf et avec gladys 3 je la pilotais avec le module broad Merci [Screenshot_2019-12-17%20Gladys%20Assistant(2)] Edit en attente de l’autre modele j’utilise celle de la lamp …

[mutmut]

Hi @pierre-gilles
I saw in another thread that you talk about a remote control for music:

Valeur non numérique dans une condition

Merci pour les précisions Est-ce que tu as moyen de modifier cette API maison ? Cette API maison pourrait retourner un entier à la place du string, ce qui en plus collerait avec les fonctionnalités natives de musique qu’on a actuellement dans Gladys : [Screenshot 2025-08-29 at 09.00.34] Utiliser ces fonctionnalités natives te permettrait en plus d’utiliser le lecteur sur le tableau de bord avec ton serveur MPD : [Screenshot 2025-08-29 at 09.03.48] Idéalement, si tu as moye…

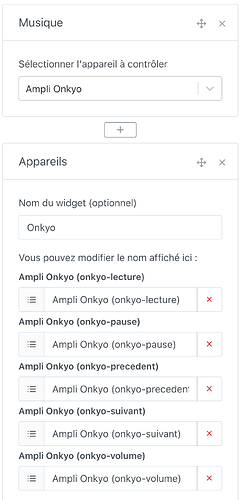

Is there a way to control the features of a Broadlink device with Gladys’ native functions in remote control mode?
I’m a bit lost about what can be done with what you show:

EDIT :
yes, I really don’t understand how it works

[pierre-gilles]

@mutmut

Is there a way to control the features of a Broadlink device using Gladys’ native functions in remote-control mode?

Basically, if you write an external tool (or use Node-RED), yes, it’s possible to use these native functions with a Broadlink

[pierre-gilles]

@mutmut Would you like us to look at this together to set it up at your place?

With Node-RED + node-red-contrib-broadlink-control (node) - Node-RED, it should be fairly easy to set up

Otherwise, if you want, it could be coded with AI + Matterbridge, I think, but it requires a bit more skill and willingness.

[mutmut]

@pierre-gilles

@mutmut You’d like us to look at that together to set it up at your place

Hi @pierre-gilles, it would be my pleasure because I’d like to automate turning on my devices with one click depending on their state, and also be able to have a good portion of the individual functions of my different remote controls on a single dashboard page.

@pierre-gilles

Avec Node-RED + node-red-contrib-broadlink-control (node) - Node-RED, ça devrait se mettre en place assez facilement

I’m not super comfortable with Node-RED but I watched some tutorials about it and I can tinker.
On the other hand, does that mean the learning would happen via Node-RED and no longer via Gladys, is that right?
If so, and in my case where I want to use my RM4mini for the devices, Gladys’s Broadlink integration would no longer be useful to me (if I followed the reasoning correctly).

@pierre-gilles

Sinon, si tu en as envie, ça peut se coder avec l’IA + Matterbridge, je pense, mais ça demande un peu plus de compétences et d’envie.

Well, it’s not the desire that’s missing here
As I said, I tinker.
I have a few questions about this dev:

• Does a Matterbridge plugin imply that Gladys will have the « commands/buttons » to activate the functions? (command isn’t the right term but I don’t have a better one right now)
• Who should the learning go through: Gladys, Matterbridge, or a third-party app?
• If some commands are not yet supported by Matter (like fan speed control or oscillation for example), we end up with fewer functions → that’s not the goal

In both cases, how do we control via the dashboard?
Ok, we could make scenes but I can’t see myself creating a scene for each function/button of my remotes. For a sequence of functions, scenes are fine.
There should be a remote control, a remote control widget more precisely, where we’d put the buttons we need (play, vol+, source, P-, oscillation, etc.), and if that’s not in a future dev, I struggle to see how I could manage my devices without an overcomplicated mess

[pierre-gilles]

@mutmut

On the other hand, does that mean that the learning happens through Node-RED and no longer through Gladys, is that right?

Exactly Everything is explained in the Node-RED module documentation: node-red-contrib-broadlink-control (node) - Node-RED

@mutmut

Does the matterbridge plugin imply that Gladys will need the « commands/buttons » to activate the functions?

Yes! The Gladys Matter integration must already handle this type of devices.

For now the Matter integration supports these functions: Intégrer des appareils Matter dans Gladys Assistant | Gladys Assistant

@mutmut

So the learning will have to go through who: Gladys or Matterbridge or a third-party app?

Matterbridge!

@mutmut

In both cases, how do we control via the dashboard?
Ok, we could make scenes but I can’t imagine creating a scene for each function/button of my remotes.

If you use the MQTT + Node-RED integration, you will have a device directly usable on the dashboard, no need to create scenes. Same for Matter.

@mutmut

There should be a remote control, a remote widget more precisely, where we would put the buttons we need (play, vol+, source, P-, oscillation, etc.), and if it’s not in a future dev

• For music, we already have the « Music » widget.
• Television types should be usable in the « Devices » widget, I think.
• Air conditioning/Heating is already supported.
• Fan: we have an On/Off type for power, I don’t know if there’s an issue with power/speed, it can be hacked together, or we can just add new types if needed.

In my opinion, the Node-RED route is the right one in your case, coding a Matterbridge plugin with AI would probably be a bit complicated for you I think

Don’t hesitate if you have any questions while configuring all that!

[mutmut]

[quote=« pierre-gilles, post:11, topic:9685 »]

[quote=« mutmut, post:10, topic:9685 »]
Who should the learning go through:
