Hello everyone,

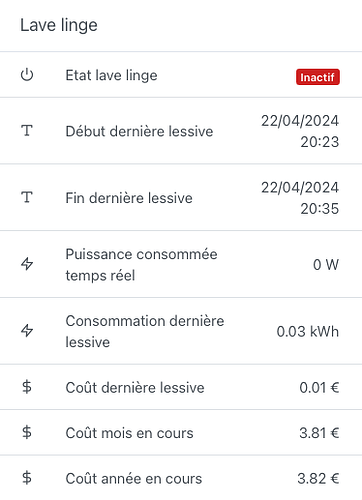

Here I will show you how to easily smartify a washing machine with just one outlet and achieve a result like this:
Note: This tutorial will evolve, and some screenshots will change over time as bugs are fixed or features are added. The changelog will be available at the end of the tutorial
I will include many screenshots without necessarily accompanying text, but if you have any questions, remarks, or suggestions, feel free to ask
I was heavily inspired by the tutorial on Domo-Blog, which you can find here:
https://www.domo-blog.fr/comment-connecter-et-monitorer-la-machine-a-laver-sous-la-domotique-home-assistant/
Prerequisites:
- MQTT integration
- Zigbee2Mqtt integration
- A Zigbee smart plug (In my case, this one)
- Having integrated your Zigbee smart plug into the Zigbee2Mqtt integration

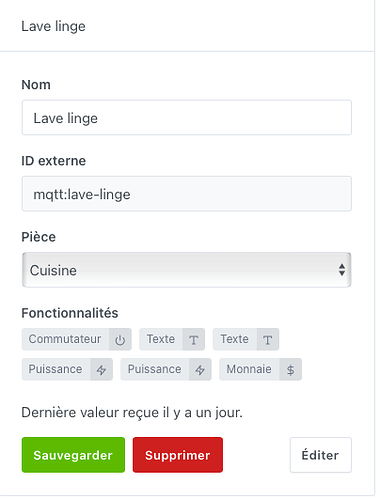

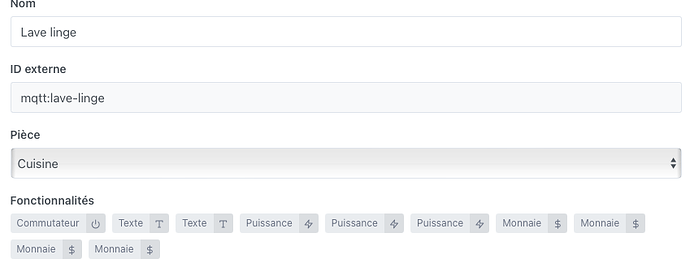

1. Creating the washing machine device in the MQTT integration:

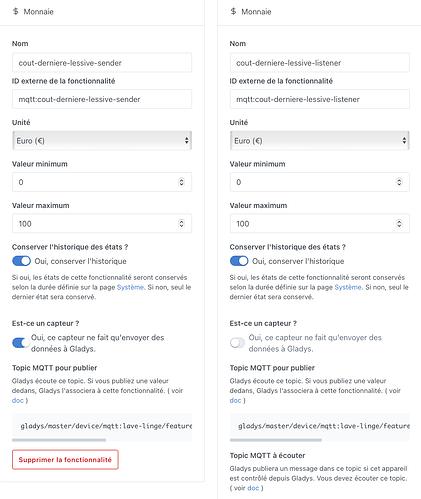

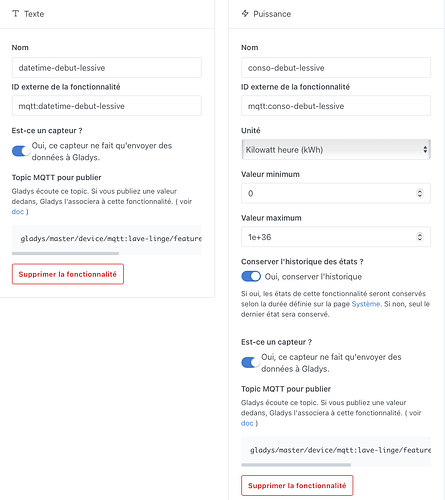

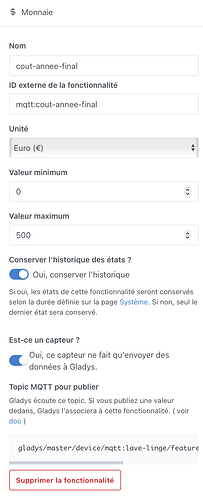

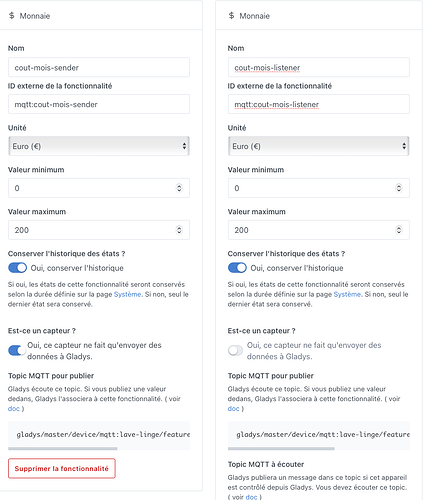

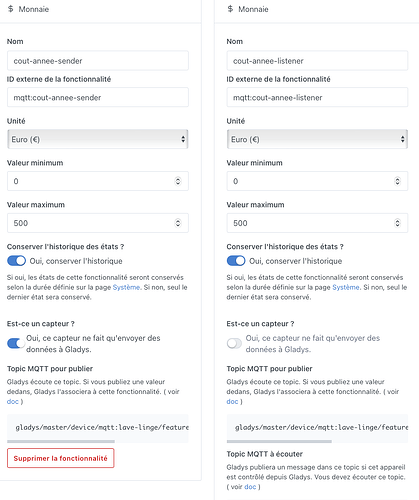

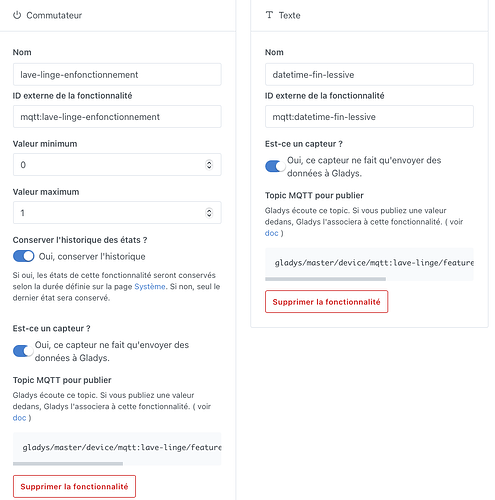

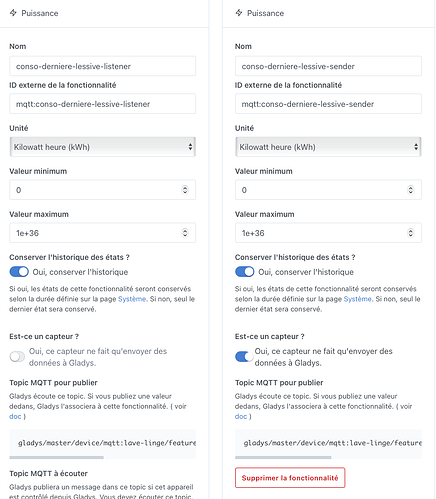

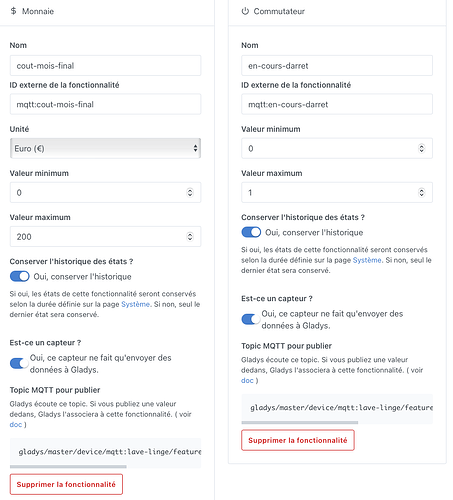

2. Creating features on the MQTT washing machine device:
3. Creating the EDF device in the MQTT integration:
1. Creating the device to retrieve the last day of the month:

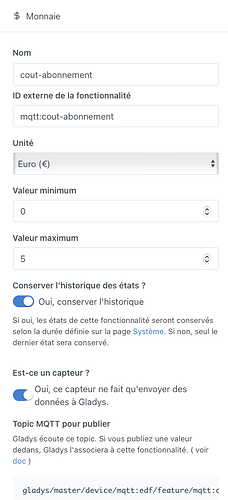

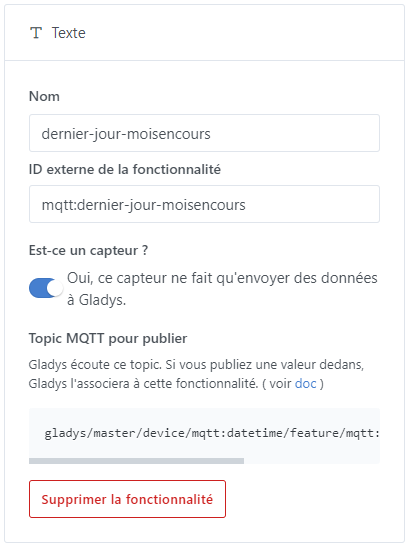

4. Creating the feature on the MQTT EDF device:

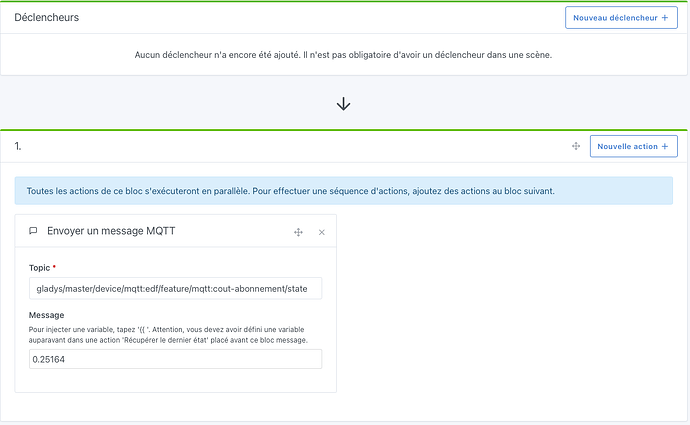

5. Creating the scene for EDF to indicate the cost of your subscription:
You can automate this task with the following tutorial:
https://community.gladysassistant.com/t/tuto-recuperer-le-prix-de-son-abonnement-delectricite-via-le-site-data-gouv-fr/8838
Run this scene manually once, and the next time your rate changes, if you donât use automation

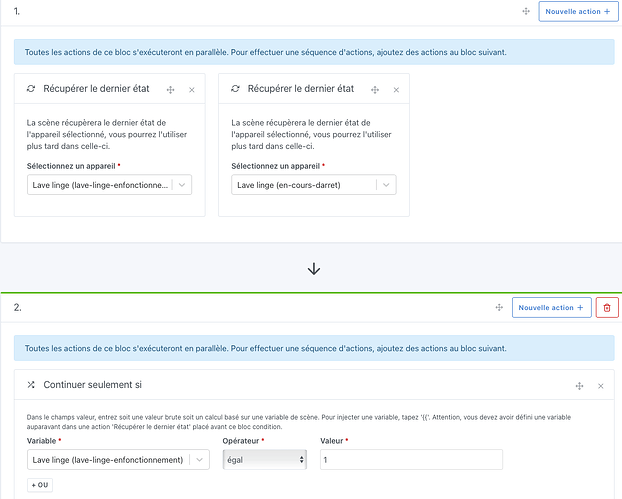

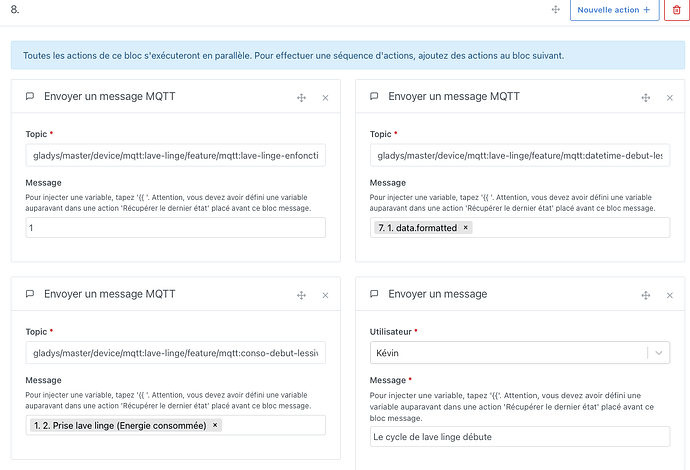

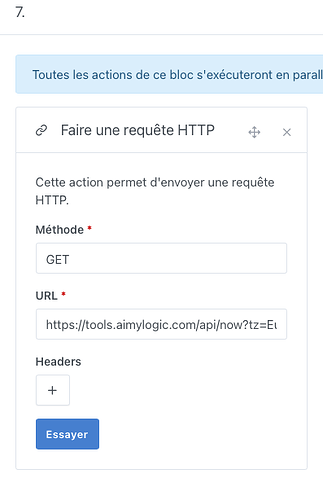

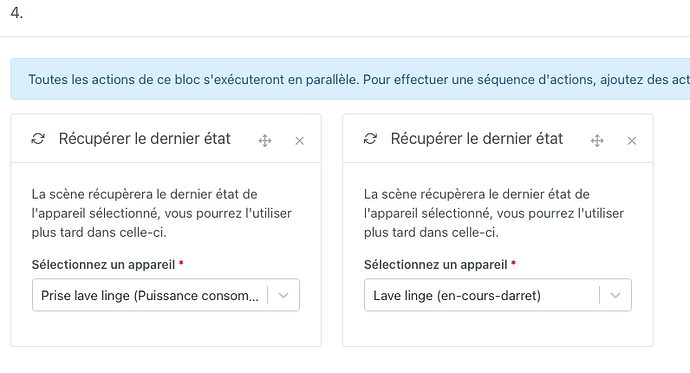

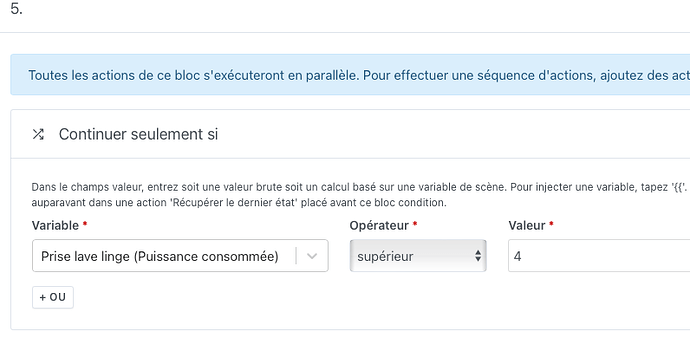

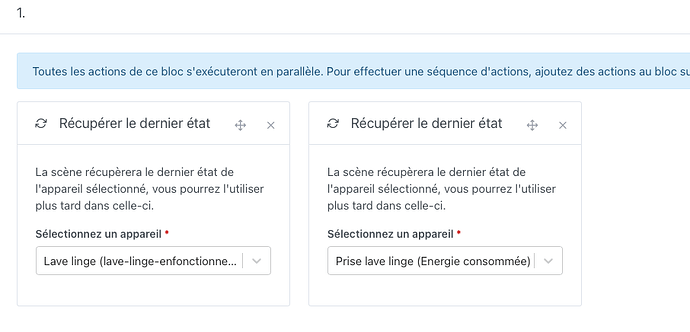

6. Creating the washing machine running scene:

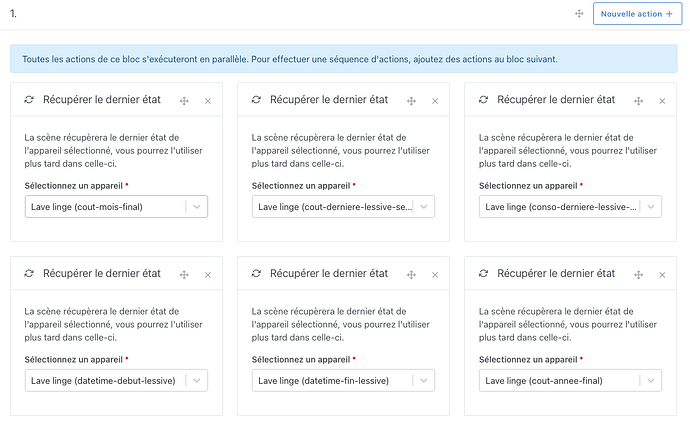

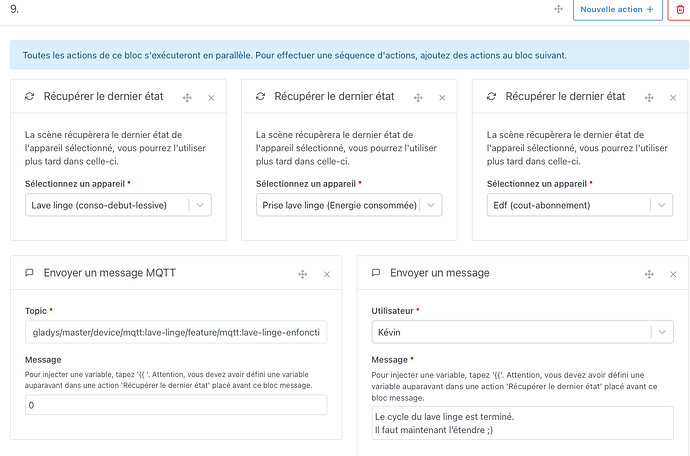

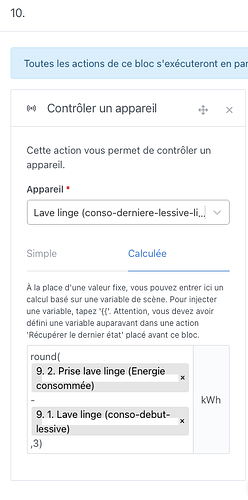

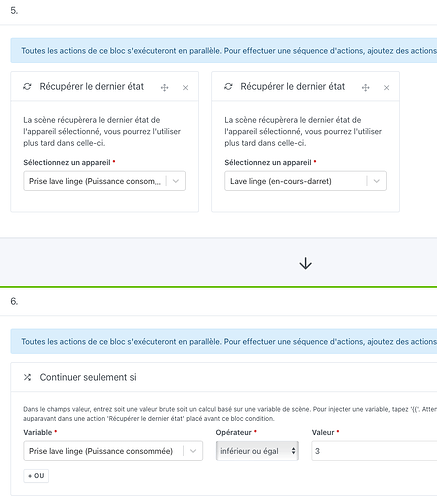

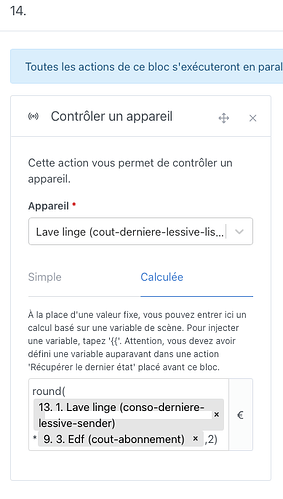

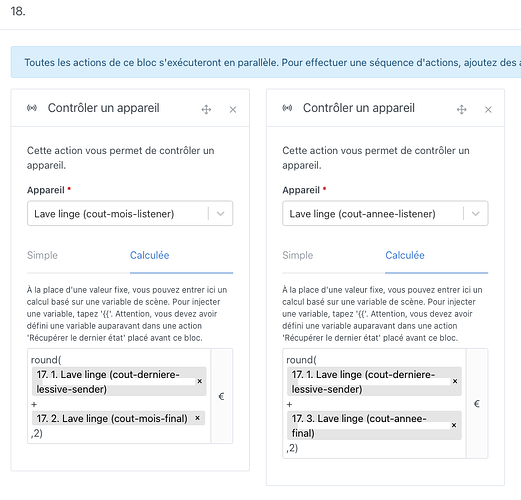

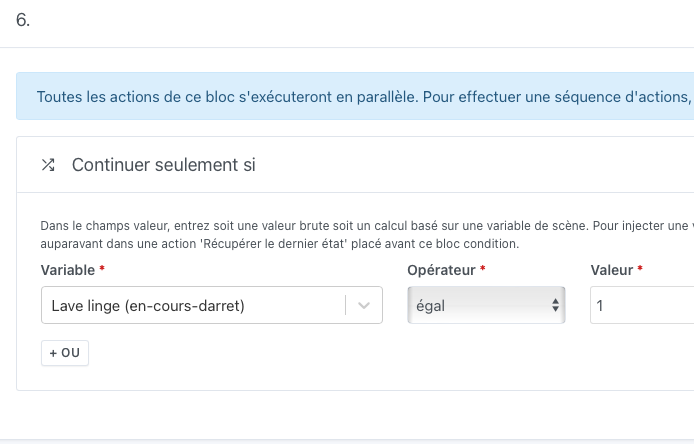

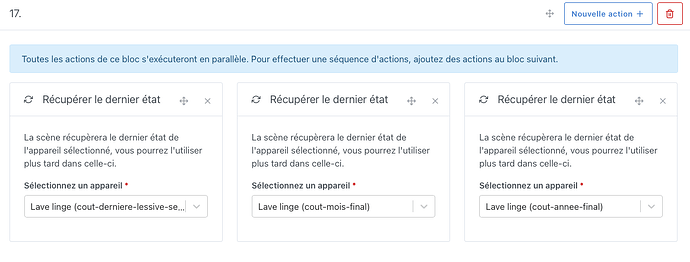

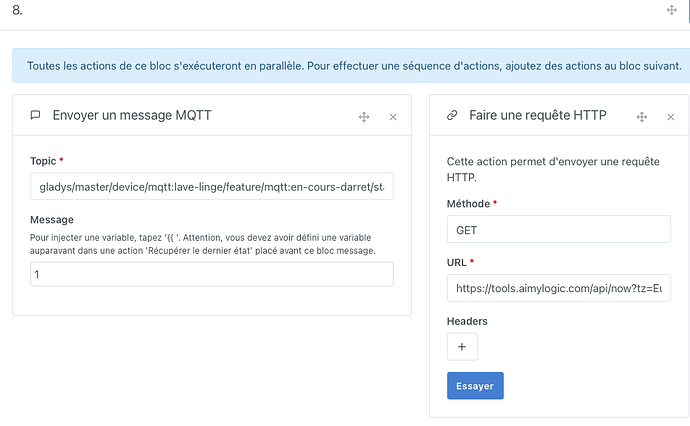

7. Creating the washing machine stopped scene:
8. Creating the monthly reset scene:

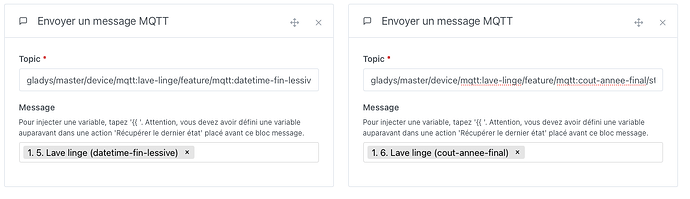

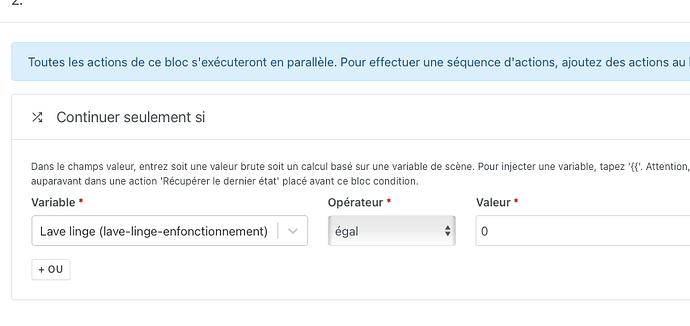

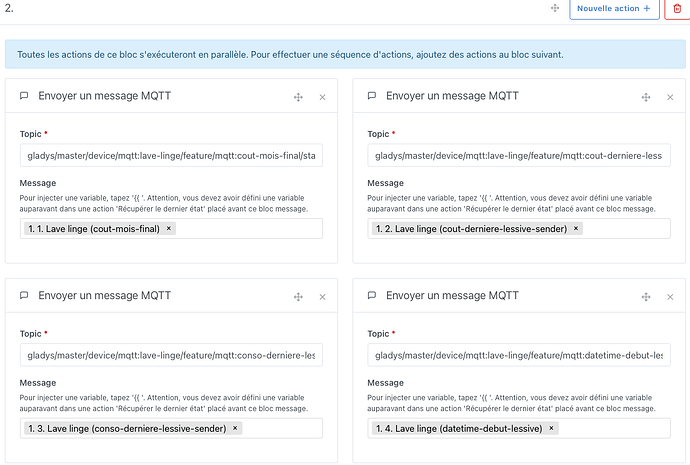

9. Creating the static values refresh scene:
If you donât run your machine for 48 hours, some values no longer appear on the Dashboard. This value is found in Settings â Gladys System:
I have therefore created a scene that updates the values with the same values every 24 hours at a time when I know my machine wonât be running

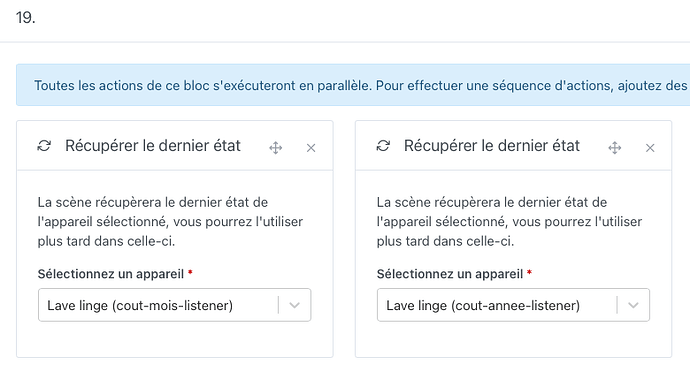

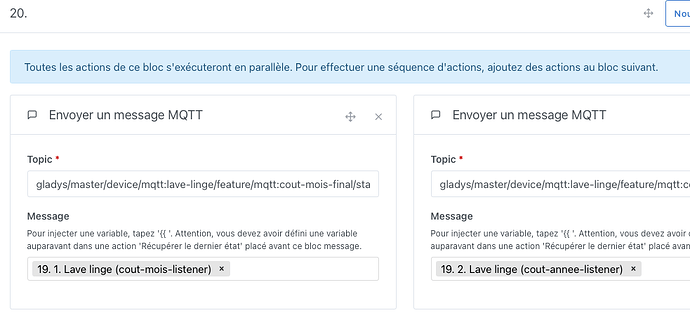

10. Creating the annual values refresh scene:
A small note on this scene, you will need to modify this date every year

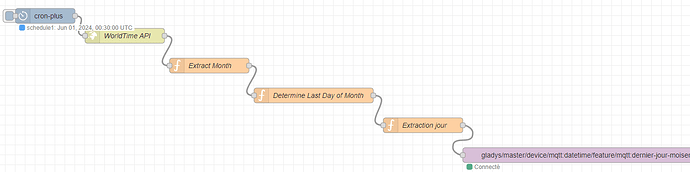

11. Creating the Node-Red flow to retrieve the last day of the month:
[
{
"id": "b7191a33c07d23e0",
"type": "tab",
"label": "Check last day of current month",
"disabled": false,
"info": "",
"env": []
},
{
"id": "d0e045cb.9f4ef",
"type": "http request",
"z": "b7191a33c07d23e0",
"name": "WorldTime API",
"method": "GET",
"ret": "obj",
"paytoqs": "ignore",
"url": "http://worldtimeapi.org/api/ip",
"tls": "",
"persist": false,
"proxy": "",
"authType": "",
"x": 260,
"y": 200,
"wires": [
[
"91df43f4.81a518"
]
]
},
{
"id": "91df43f4.81a518",
"type": "function",
"z": "b7191a33c07d23e0",
"name": "Extract Month",
"func": "var current_month = msg.payload.datetime.substring(5, 7);\nmsg.current_month = parseInt(current_month);\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"x": 430,
"y": 260,
"wires": [
[
"7894f4e2.dcb4f4"
]
]
},
{
"id": "7894f4e2.dcb4f4",
"type": "function",
"z": "b7191a33c07d23e0",
"name": "Determine Last Day of Month",
"func": "var months_30_days = [4, 6, 9, 11];\nvar months_31_days = [1, 3, 5, 7, 8, 10, 12];\n\nif (months_30_days.includes(msg.current_month)) {\n msg.payload = 30;\n} else if (months_31_days.includes(msg.current_month)) {\n msg.payload = 31;\n} else {\n var current_year = parseInt(msg.payload.datetime.substring(0, 4));\n if ((current_year % 4 == 0 && current_year % 100 != 0) || current_year % 400 == 0) {\n msg.payload = 29; // Leap year\n } else {\n msg.payload = 28;\n }\n}\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"x": 640,
"y": 320,
"wires": [
[
"b55312bdd26f4bda"
]
]
},
{
"id": "fbac43b9673078da",
"type": "mqtt out",
"z": "b7191a33c07d23e0",
"name": "",
"topic": "gladys/master/device/mqtt:datetime/feature/mqtt:last-day-of-current-month/text",
"qos": "2",
"retain": "true",
"respTopic": "",
"contentType": "",
"userProps": "",
"correl": "",
"expiry": "",
"broker": "0ee77e0f90aa9681",
"x": 1220,
"y": 440,
"wires": []
},
{
"id": "b55312bdd26f4bda",
"type": "function",
"z": "b7191a33c07d23e0",
"name": "Extract Day",
"func": "const payload = msg.payload;\nmsg.payload = payload;\nreturn msg;",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 860,
"y": 380,
"wires": [
[
"fbac43b9673078da"
]
]
},
{
"id": "65287af29bc457b9",
"type": "cronplus",
"z": "b7191a33c07d23e0",
"name": "",
"outputField": "payload",
"timeZone": "",
"storeName": "",
"commandResponseMsgOutput": "output1",
"defaultLocation": "",
"defaultLocationType": "default",
"outputs": 1,
"options": [
{
"name": "schedule1",
"topic": "topic1",
"payloadType": "default",
"payload": "",
"expressionType": "cron",
"expression": "30 00 1 * *",
"location": "",
"offset": "0",
"solarType": "all",
"solarEvents": "sunrise,sunset"
}
],
"x": 100,
"y": 160,
"wires": [
[
"d0e045cb.9f4ef"
]
]
},
{
"id": "0ee77e0f90aa9681",
"type": "mqtt-broker",
"name": "Gladys",
"broker": "mqtt://192.168.0.248",
"port": "1883",
"clientid": "",
"autoConnect": true,
"usetls": false,
"protocolVersion": "4",
"keepalive": "60",
"cleansession": true,
"autoUnsubscribe": true,
"birthTopic": "",
"birthQos": "0",
"birthRetain": "false",
"birthPayload": "",
"birthMsg": {},
"closeTopic": "",
"closeQos": "0",
"closeRetain": "false",
"closePayload": "",
"closeMsg": {},
"willTopic": "",
"willQos": "0",
"willRetain": "false",
"willPayload": "",
"willMsg": {},
"userProps": "",
"sessionExpiry": ""
}
]

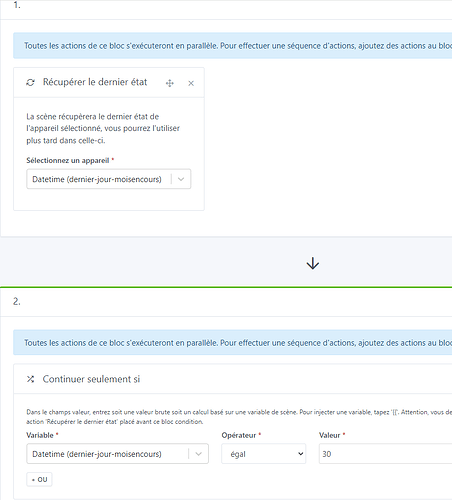

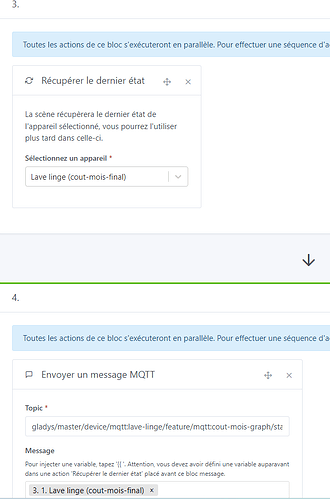

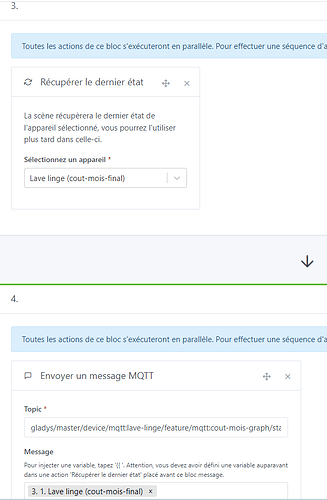

12. Creating the scene for the monthly cost graph if the end of the month is the 30th:
13. Creating the scene for the monthly cost graph if the end of the month is the 31st:

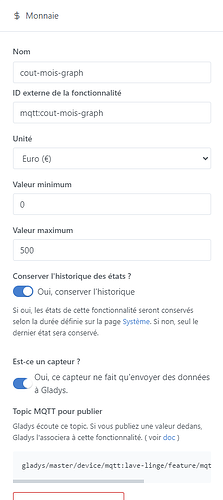

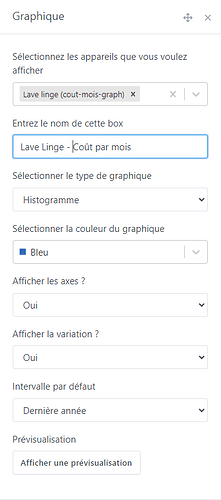

14. Graph on the dashboard to track month by month:

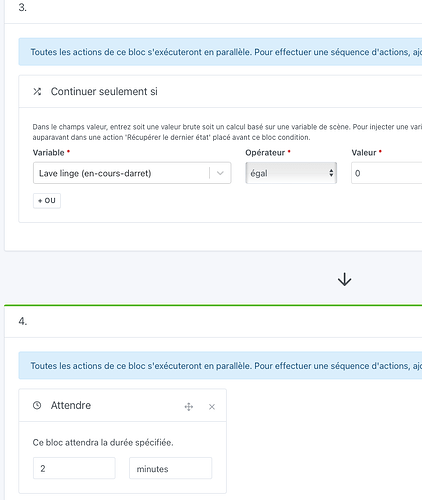

Just a small clarification for the 2-minute wait on the washing machine stopped scene, I had to do this because even at 1 minute with my washing machine, the scene was triggered as it must have been a moment when the washing machine went to 0W and after 1 minute was at 0W, in any case, I explain it like this⊠^^
I havenât had any more problems after changing it to 2 minutes
Changelog to come:
- None (Your comments
)
Edit 10/04/2024:
- Modification of the triggering value (Power taken) to take into account the delayed start
- Addition of the calculation for the cost over 1 month
Edit 12/04/2024:
- Correction of several bugs
Edit 16/04/2024:
- Addition of the link for electricity tariff recovery automation
- Bug detected and currently attempting to resolve concerning the scene « Washing machine stopped » which runs several times especially at the end of the cycle
Edit 21/04/2024:
- Correction of the bug on the washing machine stopped scene that was running several times at the end of the cycle
- Addition of a scene so that the values are always displayed on the Dashboard according to the parameter « Delay before state expiration »
- Implementation of rounding to 2 decimal places on the cost + 3 decimal places on the last wash consumption
- Addition of annual cost
Edit 22/04/2024:
- Mea culpa, the bug was not corrected at all, itâs done now
- Optimization of the scene « Washing machine stopped »
Edit 03/05/2024:
- Addition of a graph to track the cost month by month
