Air quality info from the web

Configuration
1

Hello,

I’m looking to integrate the official public air quality measurements from this website (Wallonia - Belgium):

A widget is available and generated by their site here:

And here’s how it looks:

\u003ciframe src=" https://www.wallonair.be/index.php?option=com_issep\u0026view=widgets_indices\u0026tmpl=widgets\u0026commune=192\u0026auto=false\u0026speed=4000 " scrolling="no" border="0" style="border: none;width:400px;height:350px"\u003e\u003c/iframe\u003e

But I don’t know how to integrate this into my dashboard. Any ideas?

Thanks for your input!

2

Hi @GBoulvin, you should check whether they have an open API you could call, either from Gladys or from Node-RED, so you can then pull the data into an MQTT virtual device!

1 Like
3

I haven’t tried it but by taking inspiration from the tutorial script below there’s surely a way to do something directly in gladys.

The script retrieves your widget as an image every X minutes and you insert the link of the generated image into the camera integration which you can then place on your dashboard.

4

That also works, but it’s a shame, you lose the whole « fully integrated » side of Gladys, where the information that Gladys « knows » is available in the AI, in the scenes, etc…

5

Yes, I’m not saying otherwise; if there’s a possibility with an API it’s even better.

1 Like
6

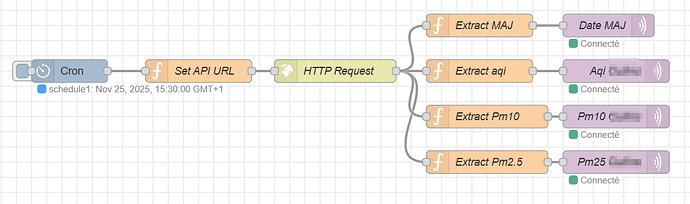

On my side I already do it with Node-RED:

image1136×336 30.2 KB

image513×257 6.98 KB

The API used is the following:

https://api.waqi.info/feed/${city}/?token=${apiKey})
3 Likes
7

I should point out that this can also be done in a Gladys scene, you don’t necessarily need Node-RED :wink:

1 Like
8

Thanks for your replies!

After researching, there are indeed APIs available (here) but I haven’t yet had the time to look at them.

I’ll keep you posted :wink:

3 Likes
9

I managed to do it directly in Gladys :slight_smile:
It couldn’t be simpler :sweat_smile:

However, I’d like the date/time to be in day/month/year format while the retrieved value is:


Is there a way to do this? :slight_smile:

Thanks

10

In my opinion, we should retrieve each aa mm dd and send them to an MQTT device in the order that suits you.

11

Any idea how to do it with Gladys? :grinning_face:

12

In my opinion, it’s complicated to do that fully in Gladys right now, but we could add a small date-handling function or a date type on the dashboard!

13

Thanks, I created a feature request:

14

I have just set up retrieval of air quality info from a Gladys scene using the « Make an HTTP request » function from api.waqi.info, it’s cool. Thanks for the idea!
However, the ‹ Last update date › info that I get from ‹ data.data.time.s › and that I store in an MQTT text object doesn’t work, I have the info « No value recorded » on my Dashboard. Any idea what I might have missed?




15

You should use « Send an MQTT message » instead of « Control a device »


1 Like
16

Indeed, it works! Thanks @prohand
