First steps with Gladys Zigbee

[nouzille]

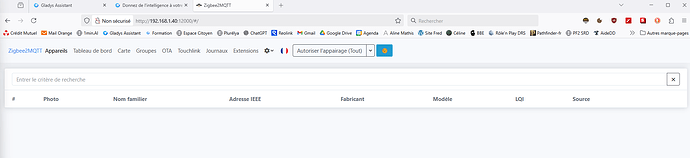

I don’t know if I’m posting in the right place Happy owner of a mini PC kit, I bought the Sonhiff USB Zigbee dongle (sonhiff), a few IKEA Zigbee devices, everything seems fine on the web configuration side but my Zigbee scans return nothing. The same with my presence tests via LAN Manager even though I can ping my phone and my wife’s. I installed Ubuntu 24 LTS. If you have a lead or a related discussion thread on this forum, I’m interested. Thanks in

[pierre-gilles]

Hi @nouzille and welcome to Gladys

Have you put your Zigbee devices into pairing mode?

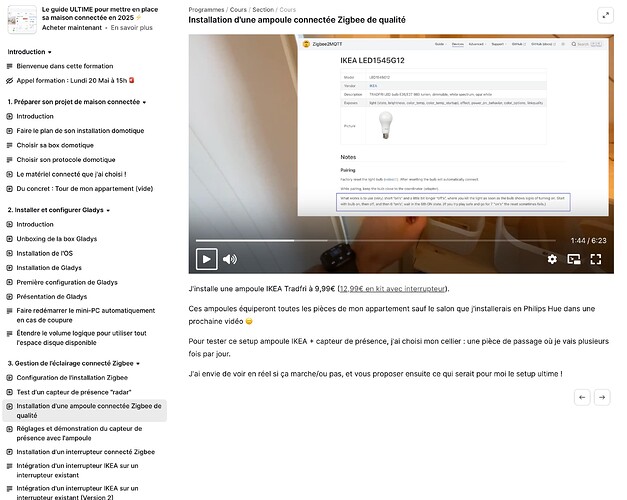

I explain in the training how to do it.

For example, for IKEA bulbs, it’s done here:

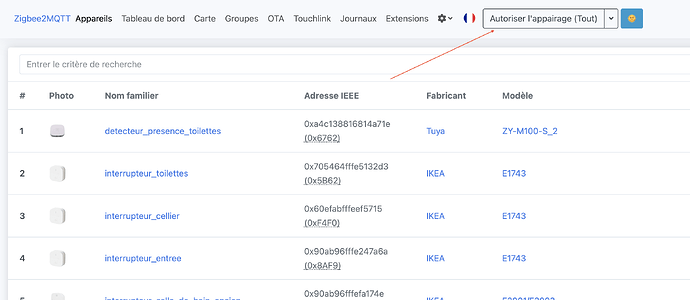

Otherwise, did you start the pairing?

[nouzille]

Yes, for the temperature sensor it’s quite easy: 4 presses and you can see the pairing symbol blinking

And the interface port 12000 is OK

[nouzille]

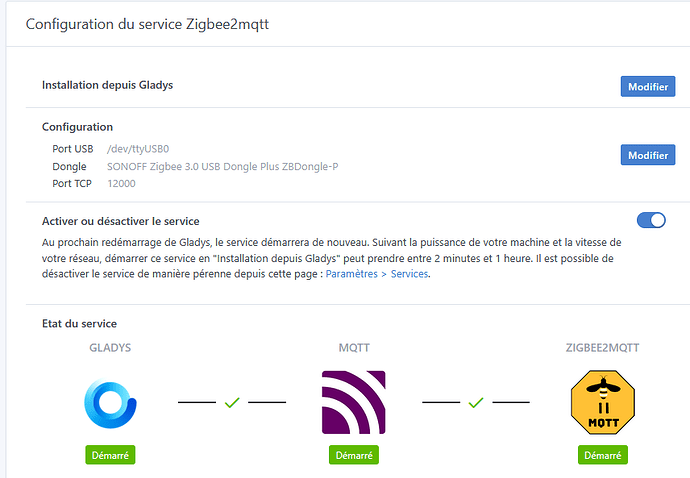

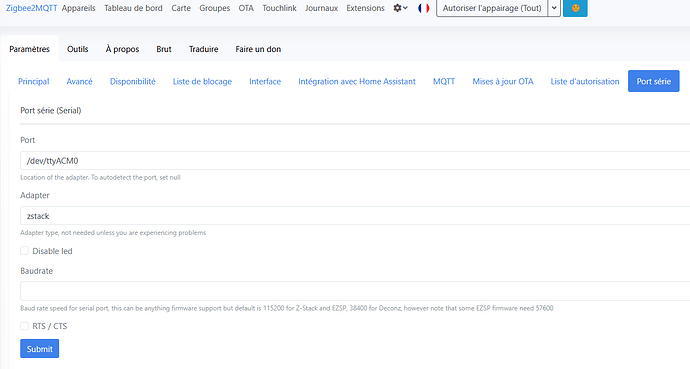

Strangely, in the zigbee2MQTT serial port settings this doesn’t seem to match my Gladys configuration — is that normal?

[cicoub13]

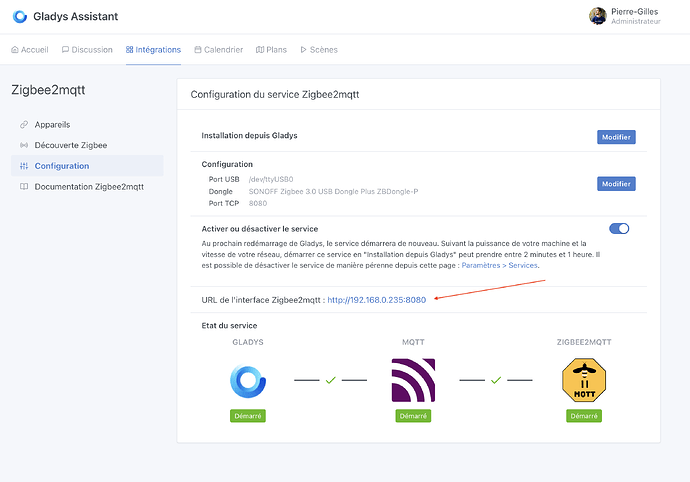

Yes, that’s normal — the mapping of the correct USB port is done in the Docker configuration.
Have you enabled pairing here?

[nouzille]

Yes, like in my previous screenshot

OK, I won’t touch the settings

[nouzille]

Are there any logs on the Linux system that could help me?

[mutmut]

@nouzille, your pairing is not active, when you click on it you should see this :

and only then can you pair it with your device.

[nouzille]

Phew, it works — a thousand thanks Mutmut, it was so simple, sorry

Thanks also to cicoub13 and Pierre-Gilles
