Service Netatmo

[Terdious]

We’re making progress on Netatmo Home + Security :
Image de test disponible : docker pull terdious/gladys:netatmo-security-nacamera

When will we get 1920x1080 ?? Or the option to choose the number of columns ?? Amount of empty space ^^

@pierre-gilles, question before I get to cleaning up the code :
I simply copied the rtsp-camera integration folder which I put directly into netatmo.
Then on the front-end I added a function to retrieve the device’s service in the boxes management to call the correct route.

Would you have 10/20 minutes to discuss it live? What bothers me is the maintainability of two codes that are almost identical over time. In this particular case I’m not a fan of plain copy/paste with only one or two changes. Especially since we might add other integrations someday that use the same code with only a few potential differences.

I may have taken the wrong path, hence the request for a voice/video call.

PS: @pierre-gilles speaking of the columns, I noticed that the columns are not equal in size… the middle column is slightly shorter in the middle than the left and right ones. After Netatmo I’ll look to see if I can fix it.

[pierre-gilles]

@Terdious

@pierre-gilles, question before I start cleaning up the code:
I simply took the folder from the rtsp-camera integration that I put directly into netatmo.

Ok! The point of adding these cameras via the Netatmo integration and not the camera integration is that it’s automatic? Do you have an RTSP stream via Netatmo?

@Terdious

What bothers me on one hand is the maintainability of two nearly identical codebases over time. In this specific case I’m not a fan of pure copy/paste with only one or two changes.

You can use the code of one service in another service

Example: The USB service is used by the Zigbee2mqtt service:

const usb = this.gladys.service.getService('usb');
const usbList = await usb.list();

( code: Gladys/server/services/zigbee2mqtt/lib/init.js at master · GladysAssistant/Gladys · GitHub )

For now, are you handling only the image or the live streaming as well?

@Terdious

PS: @pierre-gilles, speaking of the columns, I noticed that the columns are not equal in size… the middle column is slightly shorter than the left and right ones.

That’s not a bug, it’s normal — the height depends dynamically on the content of each widget What’s the issue?

[Terdious]

@pierre-gilles

Ok! The point of adding these cameras via the Netatmo integration and not the camera integration is that it’s automatic? Do you have an RTSP stream via Netatmo?

First, there is the « wifi_strength » and « state » (« disconnect », « on », « off ») info + others that I don’t use yet.
Then the behavior is particular. The initial stream looks like vpnUrl: https://prodvpn-eu-4.netatmo.net/10.255.0.3/d259xxxxxxxxxxxxx/MTU4NDDr-aMZIkmaaLLg,, (hence the mention of a call/demo). To that you add, as with other cameras, ${vpnUrl}/live/snapshot_720.jpg for the image. But the live stream itself is ${vpnUrl}/live/files/high/index.m3u8 in this case, the ‹ MTU4NDDr-aMZIkmaaLLg, › part changes at each restart or disconnection and it’s accessed via their platform. If your Gladys is on the same local network as the camera, there is a property is_local: true to access it directly and there is a double request ${vpnUrl}/command/ping to perform to obtain an address like localUrl: http://192.168.0.10/d259xxxxxxxxxxxxx which then allows having ${localUrl}/live/snapshot_720.jpg for the image and either ${vpnUrl}/live/files/high/index_local.m3u8 or ${localUrl}/live/files/high/index.m3u8. So I have a ‹ CAMERA_URL › param and a ‹ CAMERA_LIVE_URL › param.

@pierre-gilles

You can use the code of one service in another service

Very interesting, but that therefore means I have to modify the ‹ startStreaming › file

to be able to access this « new » parameter.

@pierre-gilles

For now do you only handle the image or do you handle live streaming too?

I handle both and it works very well ^^ Moreover in the future, I want to add access to the histories as well as the ability to download them… which will differ from the original service… or not.

Well, while writing these lines I realize that we could maybe only use CAMERA_URL = ${vpnUrl}/live/files/high/index.m3u8 or ${localUrl}/live/files/high/index.m3u8 if local = true since it’s the integration that makes the snapshot of the video.
So I will do like the USB service. Thanks for your answer. And that shouldn’t be blocking for future updates either.

PS (continued):

@pierre-gilles

It’s not a bug, it’s normal, the height depends dynamically on the content of each widget What’s the issue?

So I’m not talking about the height but the width. For example, with the same name at the limit of double lines we have this:

It’s silly but it comes down to 1 character (368px for the center versus 378px for the left and right columns), if I add the ‹ n › of « consigne » on the right it indeed jumps the line:


I thought it was related to the free spaces between the columns, but no we have 27 or 28px on each side.

[Terdious]

@pierre-gilles

You can use the code of one service inside another service

Example: The USB service is used by the Zigbee2mqtt service:

const usb = this.gladys.service.getService('usb');
const usbList = await usb.list();

( code: Gladys/server/services/zigbee2mqtt/lib/init.js at master · GladysAssistant/Gladys · GitHub )

For now are you only handling the image or are you also handling live streaming?

@pierre-gilles, thank you so much!! All in all 3 lines to call rtsp-camera and it works perfectly!!

[PhilippeMA]

Hello @Terdious,

I just launched with the image: terdious/gladys:netatmo-features-nrv-weather

I was able to log in with my credentials provided by the Netatmo site. I have a green message in Gladys confirming the connection: Gladys is connected to Netatmo (and I did accept the Netatmo message to allow access to all Netatmo devices (including the weather station)).

However, when I go to the Discovery section, no device is detected:

No Netatmo device was found. If you own a Netatmo Thermostat, have you completed all the steps in the documentation to register your devices on the Netatmo API?

An adjustment seems necessary to this error message; the thermostat contextualization is no longer accurate

Do you see what might be causing this?

[Terdious]

Salut @PhilippeMA,

Deja merci d’avoir pris le temps pour le test.

@PhilippeMA

An adjustment seems necessary on this error message; the contextualization to the Thermostat is no longer correct

Ah yes indeed!!^^ I hadn’t thought of that point ^^

@PhilippeMA

Do you see what might be causing the issue?

1ere chose a regarder : clique droit => inspecter dans la page et te rendre sur l’onglet « Network ». Faire ensuite un refresh de la page, si tu peux me donner le resultat de la requete « discover » => onglet « Response ». Tu peux ensuite cliquer sur le bouton « Refresh » et voir la requete si c est la meme chose restes en là, si different je veux bien aussi le resultat

Ensuite si tu peux/sais accéder au container sous Linux et faire un « docker logs gladys -f » et me donner le resultat apres refresh de la page et/ou clique sur « Refresh ». Si tu n’as rien de probants je rajouterais des logs.

PS : tu as quoi en plus de la station météo de ton côté ?
Et sinon tu confirmes que toutes les instructions étaient claires pour toi ?

[GBoulvin]

Thanks @Terdious for all the hard work!
If I may, three small typos on the ‹ configuration › page:
‹ You have nothing to configure, these scopes are automatically integrated and will be exposed to you ›.
Further down, the last 'ex

[Terdious]

Hello @PhilippeMA !

@PhilippeMA

Cependant, quand je vais sur la partie Découverte, aucun appareil n’est détecté :

Aucun appareil Netatmo n’a été trouvé. Si vous possédez un Thermostat Netatmo, avez-vous bien réalisé toutes les étapes de la documentation pour enregistrer vos appareils sur l’API Netatmo ?

So I ran the full test again from the Docker image. The « bug » is also in the first version:

• On the first login, you have to click « Save and connect » twice
• Once connected, if you immediately go to the « Netatmo Discovery » page, indeed « Gladys is connected to Netatmo » and no device is visible. In the inspector on the « discover » request, I have:


• If I refresh the page, the devices do appear!

If you can confirm whether it’s the same for you. I’ll look into fixing it and will let you know when it’s good if you want to test again!

Thanks again to you.

Hello @GBoulvin,

@GBoulvin

Si je puis me permettre, trois petites coquilles dans la page ‹ configuration ›:
‹ Vous n’avez rien à configurer, ces scopes sont automatiquement intégrés et vous seront exposés ›.
Plus bas, le dernier ‹ exposées › ne prend pas de ‹ s ›

A big thank you for this feedback!! I’ll make the corrections in the next PR.

[pierre-gilles]

@Terdious

It’s really simple but it comes down to one character (368px for the center versus 378px for the left and right columns), if I add the ‹ n › from « consigne » on the right it properly breaks the line:

Ok indeed, to be handled in a separate thread/PR

@Terdious

@pierre-gilles, thank you so much!! All in all 3 lines to call rtsp-camera and it works perfectly!!

Great, glad that solves your issue!

@Terdious Regarding the documentation, I hadn’t

[PhilippeMA]

Hello @Terdious

I’m not seeing the same behavior as you.

FYI, just in case, I renewed the Client ID and Client Secret.

I’m getting an HTTP 304 return code.

The logs:

2024-02-06T19:58:20+0100 \u003cerror\u003e netatmo.pollRefreshingValues.js:21 (NetatmoHandler.refreshNetatmoValues) Unable to load Netatmo devices TypeError: Cannot read properties of undefined (reading 'data')
    at NetatmoHandler.loadDevices (/src/server/services/netatmo/lib/netatmo.loadDevices.js:40:69)
    at NetatmoHandler.refreshNetatmoValues (/src/server/services/netatmo/lib/netatmo.pollRefreshingValues.js:15:22)

[Terdious]

@pierre-gilles

@Terdious Regarding the documentation, I hadn’t noticed but some images are huge! I received an alert from Ahrefs (an SEO tool I use), which warns me that 2 images are too large:

@pierre-gilles

Ideally each image should be max 200–300KB or so

Oops sorry!! I admit that for screenshots, I didn’t think they could be that big!
I’ll make the change for you tomorrow!

EDIT: I just checked, indeed there are only those two, I don’t understand how there can be such a difference… they have the same dimensions as the others, which are between 150 and 250KB!!!

[Terdious]

Ok, so you obviously have something that differs (that’s a good thing) in the retrieval of the devices. It’s lacking logs; I’ll add what’s needed and get back to you.

If you want, we can also go via access to your installation that you can enable/disable as you wish.

[Terdious]

@PhilippeMA,

An image is currently being built, with only access to the logs. You can update it when you can.

[PhilippeMA]

Here are the new logs (reminder: I refreshed the client ID and secret yesterday):

2024-02-07T11:04:46+0100 \u003cerror\u003e netatmo.loadDevices.js:40 (NetatmoHandler.loadDevices) e.status:  undefined e.data.error { code: 3, message: 'Access token expired' }
2024-02-07T11:04:46+0100 \u003cerror\u003e index.js:15 (process.\u003canonymous\u003e) unhandledRejection catched: Promise {
  \u003crejected\u003e TypeError: expecting an array or an iterable object but got [object Null]
      at apiRejection (/src/server/services/netatmo/node_modules/bluebird/js/release/promise.js:10:27)
      at MappingPromiseArray.init (/src/server/services/netatmo/node_modules/bluebird/js/release/promise_array.js:64:19)
      at MappingPromiseArray._asyncInit (/src/server/services/netatmo/node_modules/bluebird/js/release/map.js:37:10)
      at _drainQueueStep (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:97:12)
      at _drainQueue (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:86:9)
      at Async._drainQueues (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:102:5)
      at Immediate.Async.drainQueues [as _onImmediate] (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:15:14)
      at processImmediate (node:internal/timers:476:21)
}
2024-02-07T11:04:46+0100 \u003cerror\u003e index.js:16 (process.\u003canonymous\u003e) TypeError: expecting an array or an iterable object but got [object Null]
    at apiRejection (/src/server/services/netatmo/node_modules/bluebird/js/release/promise.js:10:27)
    at MappingPromiseArray.init (/src/server/services/netatmo/node_modules/bluebird/js/release/promise_array.js:64:19)
    at MappingPromiseArray._asyncInit (/src/server/services/netatmo/node_modules/bluebird/js/release/map.js:37:10)
    at _drainQueueStep (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:97:12)
    at _drainQueue (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:86:9)
    at Async._drainQueues (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:102:5)
    at Immediate.Async.drainQueues [as _onImmediate] (/src/server/services/netatmo/node_modules/bluebird/js/release/async.js:15:14)
    at processImmediate (node:internal/timers:476:21)

[Terdious]

Ah, and did you click save again?
On your web page, if you inspect it, you should see an error!

@PhilippeMA

netatmo.loadDevices.js:40 (NetatmoHandler.loadDevices) e.status: undefined e.data.error

However, judging from the error message, your version is probably not up to date. I modified it in the new image.

[Terdious]

@pierre-gilles,
You can review the PR https

[pierre-gilles]

@Terdious Review done Looks good to me!

However, I only did a « technical » review, not a functional test.

If you confirm that it works correctly, I trust you and I’ll merge it into production

Remember to update the documentation as well to state that these devices are now supported!

[Terdious]

Thank you very much!!

Yes, on the test side it’s perfect (10 valves). And no change on the technical side regarding the thermostat, so we’re safe on that front.

Yes, the documentation update is almost ready, I’ll push it tomorrow.

[Terdious]

Hello @pierre-gilles,

Looks good to me for the documentation:

Update Netatmo doc - add NRV

I took the opportunity to run a brand new full test from scratch. Everything works perfectly!!

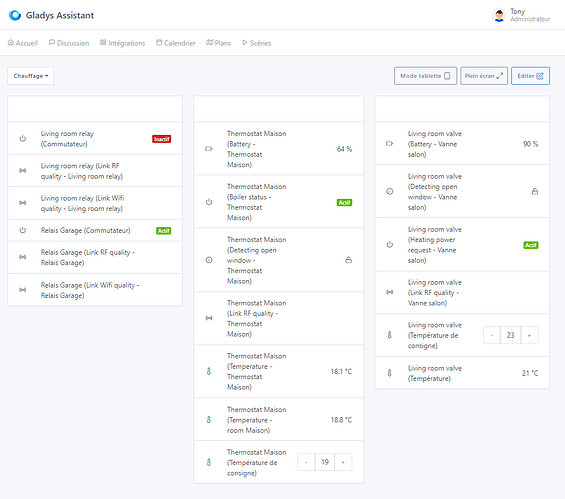

Valve in a call for heat (by changing the setpoint temperature in Gladys):

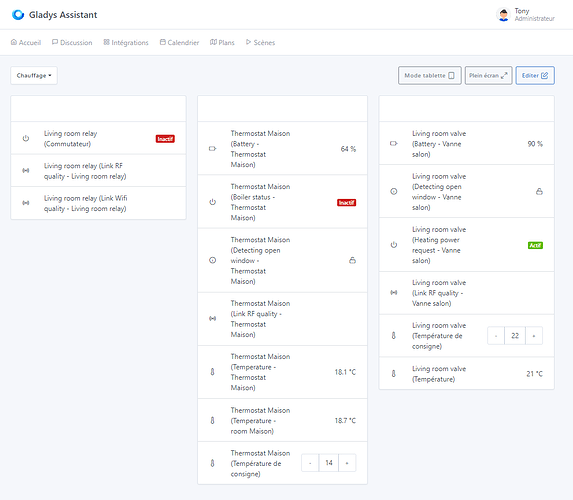

After 2 minutes, the thermostat also switches to a call for heat to turn on the boiler (of course almost instantaneous in the app … can’t wait for the PR on webhooks ^^):

[pierre-gilles]

@Terdious

It’s fine with me regarding the documentation:

Update Netatmo doc - add NRV by Terdious · Pull Request #253 · GladysAssistant/v4-website · GitHub

Excellent!! I’ll take a look tomorrow

[quote=« Terdious, post:321, topic:5910 »]
I took the opportunity to run a brand new full test from scratch. Everything works perfectly!!
