Non-numeric value in a condition

[jean_bruder]

Good evening,

I must be doing something wrong ( ), but I’m stuck on the condition of the following scene:

How can I test the state of my variable « state » (which is either « stop » or « play »)?

Thanks for your help,
Have a nice evening,
Jean

[pierre-gilles]

Hi @jean_bruder, you’re not crazy, it’s not possible at the moment

There is a feature request:

[Condition sur variables] : Ajouter la comparaison de variables TEXT

Actuellement on peut comparer des nombres lors d’une Condition sur variables : [image] Maintenant que l’on peut stocker et récupérer des données TEXT en MQTT, Il serait top d’avoir une comparaison sur variables TEXT : [image] Si on ne peut pas avoir tout dans la même fonction, je propose d’avoir 2 fonctions : Condition sur variables numériques Condition sur variables alphanumériques

[jean_bruder]

Hello @pierre-gilles

As usual, you’ve come to my rescue

So I’ll have to wait… Do you have any idea of the timeframe for this change to be applied, because I’m stuck…

Once again, I can only thank you for this wonderful product that is Gladys

Have a nice day,
Jean

[mutmut]

You’ll need to vote for this request @jean_bruder

[jean_bruder]

Hello @mutmut

It’s done

[pierre-gilles]

Hi @jean_bruder,

Can you explain exactly what you’re trying to do?

I’m sure there are some workarounds in the meantime

[jean_bruder]

Hello @pierre-gilles

I purchased the following button: Neue Tuya ZigBee Smart Knob Schalter DIY Drahtlose Szene Taste Drehbare Dimmer Schalter Haushaltsgeräte Automatisierung Verknüpfung Remoter - AliExpress 13

It is intended to be able to control, per room, the audio ambiance (volume +/-, play/pause, ambience/track/radio previous/next) depending on the interaction: click, double click, left/right rotation, etc…

The most basic need is « play/pause », which will be performed by a single click: if it’s playing, it goes to pause, and vice versa…

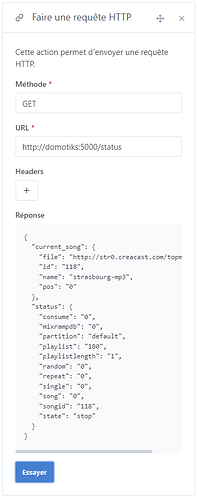

To do this, I retrieve the playback state via a request:

And I therefore want to compare the returned « state » value in order to make Gladys react:

But this is currently not possible I admit it’s far from absolutely necessary, since I control the audio from our respective smartphones (MALP app: https://play.google.com/store/apps/details?id=org.gateshipone.malp\u0026hl=fr), but I don’t like being stuck on a silly technical problem

[pierre-gilles]

I see that you’re calling an « domotiks » API; I assume that’s a local Domoticz server?

Can you show me the complete scene? What’s your trigger in Gladys?

[jean_bruder]

Good evening @pierre-gilles

« Domotiks » is one of my mini servers dedicated to containerized applications, including a number of microservices, and a custom API that controls the « MPD » daemon (Media Player Daemon) for ambient scene audio. So, nothing to do with « Domoticz »

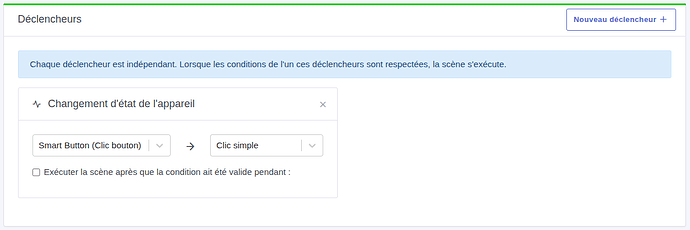

The trigger is as follows :

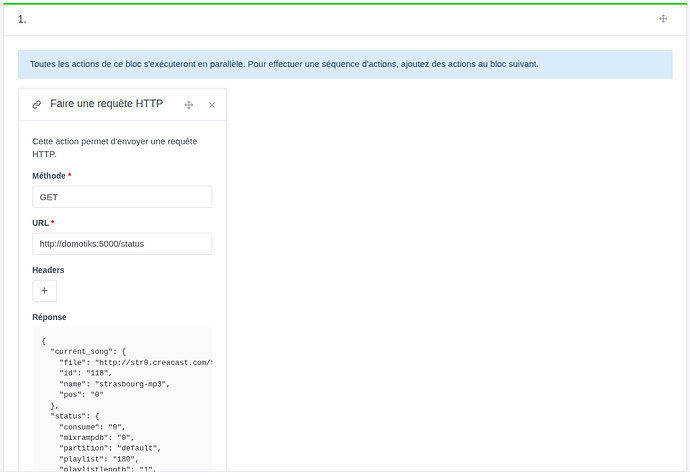

This is followed by a first block that retrieves the current state of the audio server :

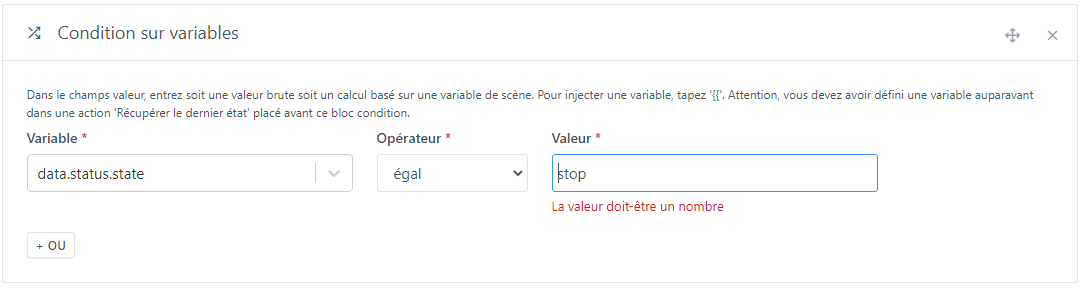

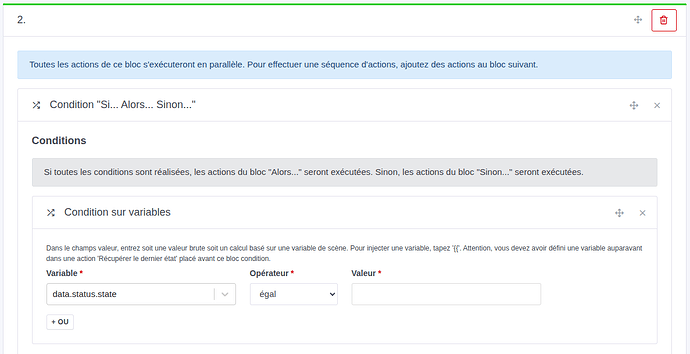

Followed by a conditional test aimed at detecting the state and setting the new state (toggle « stop/start ») :

Of course, I didn’t go any further, as I couldn’t run the test…

Have a nice rest of the evening,
Jean

[pierre-gilles]

Thanks for the details

Do you have a way to modify this custom API?

This custom API could return an integer instead of a string, which would also match the native music features we currently have in Gladys:

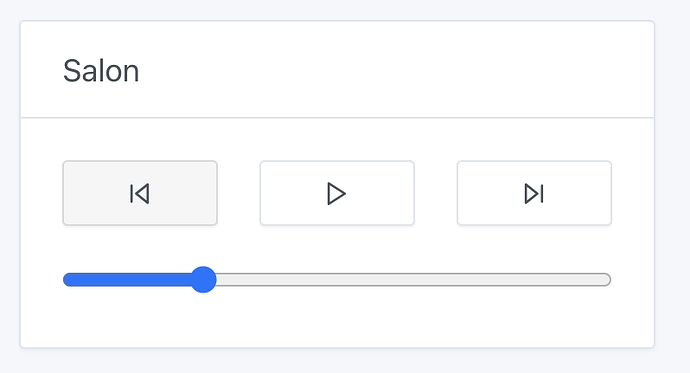

Using these native features would also let you use the player on the dashboard with your MPD server:

Ideally, if you can modify the custom API to send state changes via MQTT to Gladys, that would allow you to have the music widget always up to date on your dashboard

If this is something that works for you, I can walk you through the entire procedure! And honestly, I think it’s a better solution than using a string that doesn’t correspond to anything in Gladys

[jean_bruder]

Hello @pierre-gilles

That seems pretty good to me. I had (mistakenly…) understood that this player is limited to Sonos

Now, I need to understand how to adapt all of this?

Looking forward to hearing from you,
Jean

[pierre-gilles]

Great No, in Gladys nothing is reserved for a single integration, everything is developed to be 100% open.

You can use the MQTT integration to create a « Virtual » music device:

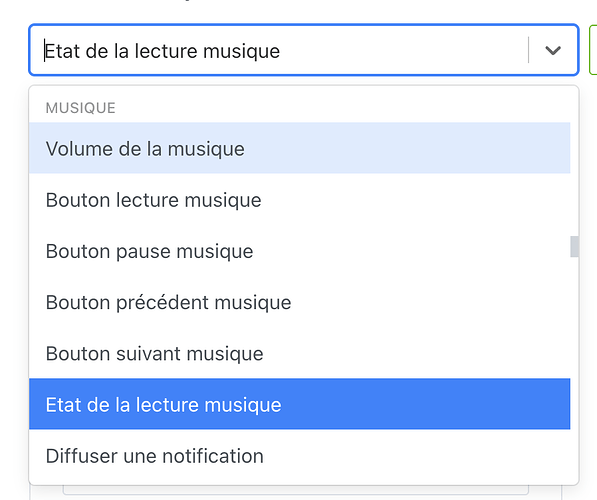

You can add all music-related features of course, we currently support:

• Play → Push feature whose only accepted state is « 1 »
• Pause → Push feature whose only accepted state is « 1 »
• Previous → Push feature whose only accepted state is « 1 »
• Next → Push feature whose only accepted state is « 1 »
• Playback state → Two possible states:
  • « 1 » = playing
  • « 0 » = paused

Then, on your home server, you need to propagate the playback state to Gladys, and listen for a change on Gladys’s side.

Propagate playback state

I don’t know which language your home server is written in; if it were in Node.js, you could do:

const mqtt = require("mqtt");
const client = mqtt.connect("mqtt://192.168.1.10", {
  username: 'gladys',
  password: 'aaaaaaaaa'
});

const PLAYBACK_TOPIC = "gladys/master/device/mqtt:serveur-mpd-musique/feature/mqtt:serveur-mpd-etat-lecture/state";

client.on("connect", () => {
    // Example for playback
   client.publish(PLAYBACK_TOPIC, "1");
  // Example for pause
   client.publish(PLAYBACK_TOPIC, "0");
});

I made a video on the MQTT integration topic: https://www.youtube.com/watch?v=o5yn_FnYtkc

Send a command to the MPD server

Then, to send a command from Gladys, 2 options:

• Over MQTT
• Over HTTP via a scene

If your server can listen to an MQTT topic, then you can just listen to each topic for each command (play, pause, etc…), and react to each message. It’s the most convenient and efficient in my opinion.

Otherwise, if you prefer to do this over HTTP, you can create a scene that listens for the state change of each button (you’ll need to create a scene per button, which is less convenient than via MQTT):

But in my opinion, you can integrate all this in a few minutes

Don’t hesitate if you need help, we can even call each other if you want to debug this with me.

[pierre-gilles]

@jean_bruder So, did it work out in the end?

[jean_bruder]

Good evening @pierre-gilles

I must admit I’m a bit busy with outdoor work given the season, and I save activities of that kind for long evenings by the fireside But I’ll be sure to keep you posted!

Have a lovely evening to all the Gladistes

[jean_bruder]

Hello @pierre-gilles

Answer that will not necessarily satisfy you, but the JSON format returned by the wrapper I use for MPD’s playback state is based on MPD’s « formal » response (described here: Protocol — Music Player Daemon 0.25~git documentation), and the state is therefore indeed either « play », « stop », or « pause ». This brings us back to the initial request, which will make it possible to meet another expressed need, which is to be able to perform conditional tests on textual values

I remind you that the requirement is not to use a graphical interface, but a « multi-choice rotary button » allowing audio control (click = pause/play, rotate left = quieter, rotate right = louder, click+rotate left = previous track, click+rotate right = next track, etc …).

The ball is in the developers’ court … Thanks in advance to them

Have a nice rest of the day,
Jean

[pierre-gilles]

Ah, on s’était mal compris, je pensais que tu avais développé toi-même ce wrapper et que donc tu pouvais le modifier

@jean_bruder

The ball is in the developers’ court … Thanks in advance to them

In the meantime, the solution I proposed to you is a good workaround; it can be done in Node-RED, or in a custom script. Don’t hesitate to ask if you need help doing it.

[jean_bruder]

Good evening @pierre-gilles

Not wanting to start tinkering via Node-RED, I made the « proper » modification at the wrapper level, and everything now works as desired.

It remains that the conditional test on a string would still be simpler than having to call on Node-RED

Have a nice evening,
Jean
