Tutorial - TEMPO tariff update (automatic PDF update)

[prohand]

Bonjour à tous,

Comme promis dans le tutoriel de @mutmut : (Merci à lui pour ce tuto)

[TUTO] Mise à jour du tarif TEMPO

Bonjour la Team, suite à la mise en place du Tuto - Domotiser son lave linge avec une prise connectée et du Tuto - Récupérer le prix de son abonnement d'électricité via le site data.gouv.fr de @prohand , j’ai eu besoin de modifier la récupération du coût de l’électricité pour mon abonnement TEMPO. Voici le résultat sur mon dashboard : [dashboard tempo avec coût] Je n’ai rien trouvé en opendata qui aurait pu être intégrée via node-red donc je suis passé par des scènes et les tarifs sont « en…

Et suite à mon tutoriel qui permets de récupérer les tarifs hors tempo :

Tuto - Récupérer le prix de son abonnement d'électricité via le site data.gouv.fr - Tarifs hors tempo

Bonjour, Je vous vois présenter ici comment récupérer le tarif d’électricité avec node-red via le fichier : https://www.data.gouv.fr/fr/datasets/r/c13d05e5-9e55-4d03-bf7e-042a2ade7e49 et ensuite le transférer dans un topic MQTT pour l’utiliser dans Gladys Ce fichier est trouvable ici : https://www.data.gouv.fr/fr/datasets/historique-des-tarifs-reglementes-de-vente-delectricite-pour-les-consommateurs-residentiels/ Ce tutoriel est compatible avec l’option « Base » uniquement car c’est l’…

J’ai voulu voir pour automatiser la récupération des différents coûts.

Je suis donc tomber sur ce tutoriel Jeedom (Merci à son auteur) dont je me suis fortement inspiré, avec le copie du code node-red :

Tarif EDF TEMPO instantané

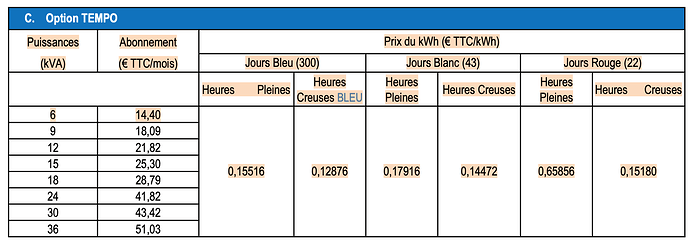

Le but ici est de récupérer le fichier pdf de la grille tarifaire tempo directement sur le site d’EDF pour mettre à jour les valeurs directement dans Gladys et avoir son coût réel au kWh à la minute prêt pour pouvoir l’utiliser dans d’autres scènes

Le fichier est trouvable ici :
https://particulier.edf.fr/content/dam/2-Actifs/Documents/Offres/Grille_prix_Tarif_Bleu.pdf

Il faudra juste espérer que la structure/composition du fichier ne soit pas changé par EDF

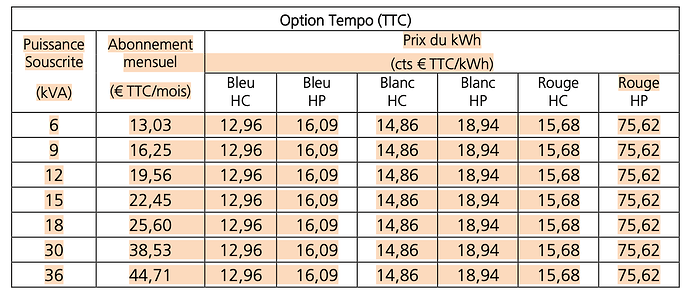

Le résultat final :

Voici le flux Node-Red :
( Un catch all est présent pour récupérer les erreurs et les envoyer par email )

[
    {
        "id": "670838a9edef0758",
        "type": "catch",
        "z": "d6333988d9cfb817",
        "name": "Erreurs",
        "scope": null,
        "uncaught": false,
        "x": 110,
        "y": 60,
        "wires": [
            [
                "c097dad994334b5e"
            ]
        ]
    },
    {
        "id": "c097dad994334b5e",
        "type": "e-mail",
        "z": "d6333988d9cfb817",
        "server": "monserveuremail",
        "port": "465",
        "authtype": "BASIC",
        "saslformat": false,
        "token": "oauth2Response.access_token",
        "secure": true,
        "tls": true,
        "name": "monadresse@email.fr",
        "dname": "Mail",
        "x": 250,
        "y": 60,
        "wires": []
    },
    {
        "id": "bf708d78a507d9c3",
        "type": "http request",
        "z": "d6333988d9cfb817",
        "name": "",
        "method": "GET",
        "ret": "bin",
        "paytoqs": "ignore",
        "url": "https://particulier.edf.fr/content/dam/2-Actifs/Documents/Offres/Grille_prix_Tarif_Bleu.pdf",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 430,
        "y": 140,
        "wires": [
            [
                "c6602cec6bea28ca"
            ]
        ]
    },
    {
        "id": "c6602cec6bea28ca",
        "type": "file",
        "z": "d6333988d9cfb817",
        "name": "",
        "filename": "/tmp/Grille_prix_Tarif_Bleu.pdf",
        "filenameType": "str",
        "appendNewline": true,
        "createDir": false,
        "overwriteFile": "true",
        "encoding": "none",
        "x": 290,
        "y": 200,
        "wires": [
            [
                "866bd16b214c1d1d"
            ]
        ]
    },
    {
        "id": "a0349e7017779b4a",
        "type": "change",
        "z": "d6333988d9cfb817",
        "name": "Texte",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "payload.text",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 670,
        "y": 200,
        "wires": [
            [
                "d23eb75a79c8996d"
            ]
        ]
    },
    {
        "id": "d23eb75a79c8996d",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Après \"Option Tempo\"",
        "func": "const regex = /Option Tempo((.|\\n)*)/gm;\nconst found = msg.payload.match(regex);\nmsg.payload = found[0];\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 480,
        "y": 280,
        "wires": [
            [
                "09faecd167fed230"
            ]
        ]
    },
    {
        "id": "09faecd167fed230",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "6 kVA",
        "func": "const regex = /6 .*/gm; // puissance souscrite\nconst found = msg.payload.match(regex);\nconst searchRegExp = /,/g; // remplace les virgules par des points\nconst replaceWith = '.';\nmsg.payload = found[0];\nmsg.payload = msg.payload.replace(searchRegExp, replaceWith);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 670,
        "y": 280,
        "wires": [
            [
                "e7ca8ee4d891c581"
            ]
        ]
    },
    {
        "id": "e7ca8ee4d891c581",
        "type": "split",
        "z": "d6333988d9cfb817",
        "name": "",
        "splt": " ",
        "spltType": "str",
        "arraySplt": 1,
        "arraySpltType": "len",
        "stream": false,
        "addname": "",
        "x": 510,
        "y": 360,
        "wires": [
            [
                "9f3df8ae0bd5d4bf"
            ]
        ]
    },
    {
        "id": "9f3df8ae0bd5d4bf",
        "type": "join",
        "z": "d6333988d9cfb817",
        "name": "",
        "mode": "custom",
        "build": "array",
        "property": "payload",
        "propertyType": "msg",
        "key": "topic",
        "joiner": "\\n",
        "joinerType": "str",
        "accumulate": false,
        "timeout": "",
        "count": "",
        "reduceRight": false,
        "reduceExp": "",
        "reduceInit": "",
        "reduceInitType": "num",
        "reduceFixup": "",
        "x": 650,
        "y": 360,
        "wires": [
            [
                "88eaf52f02be48c8"
            ]
        ]
    },
    {
        "id": "88eaf52f02be48c8",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "JSON",
        "func": "msg.payload = {\n    \"puissance\": msg.payload[0],\n    \"prix_abonnement\": Number((Number(msg.payload[1]) * 12).toFixed(2)),\n    \"prix_HCJB\": Number(Number(msg.payload[2] / 100).toFixed(4)),\n    \"prix_HPJB\": Number(Number(msg.payload[3] / 100).toFixed(4)),\n    \"prix_HCJW\": Number(Number(msg.payload[4] / 100).toFixed(4)),\n    \"prix_HPJW\": Number(Number(msg.payload[5] / 100).toFixed(4)),\n    \"prix_HCJR\": Number(Number(msg.payload[6] / 100).toFixed(4)),\n    \"prix_HPJR\": Number(Number(msg.payload[7] / 100).toFixed(4)),\n}\nreturn msg;",
        "outputs": 1,
        "timeout": "",
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 790,
        "y": 360,
        "wires": [
            [
                "6e2b78e27c34c026",
                "4d19e36f157bd2c0",
                "50608e9e9bdecdc6",
                "d9fe4a5ac7c52d90",
                "b4a2b0d2177a9058",
                "c5f9959555f3e7b9"
            ]
        ]
    },
    {
        "id": "1316dbce795332d5",
        "type": "inject",
        "z": "d6333988d9cfb817",
        "name": "Tous les jours à 9h30",
        "props": [
            {
                "p": "payload"
            }
        ],
        "repeat": "",
        "crontab": "30 09 * * *",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 220,
        "y": 140,
        "wires": [
            [
                "bf708d78a507d9c3"
            ]
        ]
    },
    {
        "id": "866bd16b214c1d1d",
        "type": "pdfparse",
        "z": "d6333988d9cfb817",
        "name": "",
        "path": "/tmp/Grille_prix_Tarif_Bleu.pdf",
        "x": 520,
        "y": 200,
        "wires": [
            [
                "a0349e7017779b4a"
            ]
        ]
    },
    {
        "id": "6e2b78e27c34c026",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour bleu HC",
        "func": "msg.payload = msg.payload.prix_HCJB;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 960,
        "y": 300,
        "wires": [
            [
                "0a6e473635b8b423"
            ]
        ]
    },
    {
        "id": "4d19e36f157bd2c0",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour bleu HP",
        "func": "msg.payload = msg.payload.prix_HPJB;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 960,
        "y": 340,
        "wires": [
            [
                "69c1fb09c3ede0e0"
            ]
        ]
    },
    {
        "id": "50608e9e9bdecdc6",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour blanc HC",
        "func": "msg.payload = msg.payload.prix_HCJW;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 380,
        "wires": [
            [
                "467f6ce03f7ed6c0"
            ]
        ]
    },
    {
        "id": "d9fe4a5ac7c52d90",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour blanc HP",
        "func": "msg.payload = msg.payload.prix_HPJW;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 420,
        "wires": [
            [
                "ed628e4d71dbbc38"
            ]
        ]
    },
    {
        "id": "b4a2b0d2177a9058",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour rouge HC",
        "func": "msg.payload = msg.payload.prix_HCJR;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 460,
        "wires": [
            [
                "f2b3869570196614"
            ]
        ]
    },
    {
        "id": "c5f9959555f3e7b9",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Jour rouge HP",
        "func": "msg.payload = msg.payload.prix_HPJR;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 500,
        "wires": [
            [
                "ae1d548f6cb679aa"
            ]
        ]
    },
    {
        "id": "0a6e473635b8b423",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-bleu-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 300,
        "wires": []
    },
    {
        "id": "69c1fb09c3ede0e0",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-bleu-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 340,
        "wires": []
    },
    {
        "id": "467f6ce03f7ed6c0",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-blanc-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 380,
        "wires": []
    },
    {
        "id": "ed628e4d71dbbc38",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-blanc-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 420,
        "wires": []
    },
    {
        "id": "f2b3869570196614",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-rouge-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 460,
        "wires": []
    },
    {
        "id": "ae1d548f6cb679aa",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-rouge-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 500,
        "wires": []
    },
    {
        "id": "0ee77e0f90aa9681",
        "type": "mqtt-broker",
        "name": "GLADYS-MQTT",
        "broker": "mqtt://192.168.0.248",
        "port": "1883",
        "clientid": "",
        "autoConnect": true,
        "usetls": false,
        "protocolVersion": "4",
        "keepalive": "60",
        "cleansession": true,
        "autoUnsubscribe": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthRetain": "false",
        "birthPayload": "",
        "birthMsg": {},
        "closeTopic": "",
        "closeQos": "0",
        "closeRetain": "false",
        "closePayload": "",
        "closeMsg": {},
        "willTopic": "",
        "willQos": "0",
        "willRetain": "false",
        "willPayload": "",
        "willMsg": {},
        "userProps": "",
        "sessionExpiry": ""
    }
]

Bien penser à modifier la puissance souscrite

Pré-requis :

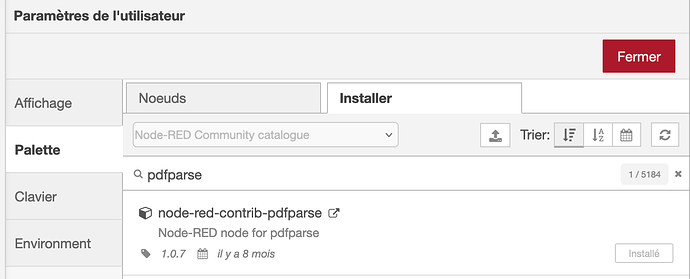

Installer le module node-red-contrib-pdfparse :

Voici l’appareil MQTT avec les fonctionnalités :

Voici les scènes :

Jour blanc - HC :

Jour blanc - HP :

Jour bleu - HC :

Jour bleu - HP :

Jour rouge - HC :

Jour rouge - HP :

Si vous avez des questions/remarques, n’hésitez pas à m’en faire part

Changelog à venir :

• Aucun (A vos commentaires )

[pierre-gilles]

Great tutorial! Thanks @prohand!

[mutmut]

Well done @prohand, I didn’t have the courage to add all my screenshots for all the HCHP&JourQuiVaBien cases

Quick question about the triggers — why did you put one at 00:01? Doesn’t Gladys handle tracking from one day to the next?

EDIT: there’s a « Download CSV » paragraph dangling at the end of your flow (I removed it because I didn’t understand it) and for those who have a somewhat clean Node-RED like mine, I’d add that you need to install pdfparse:

Of course, don’t forget to configure your MQTT server (with login/password).

EDIT 2: @prohand which module did you use for mail?
I’m having installation issues

2024-12-13T18:18:42.602Z Installer : node-red-node-email 3.0.2

2024-12-13T18:18:42.699Z npm install --no-audit --no-update-notifier --no-fund --save --save-prefix=~ --production --engine-strict node-red-node-email@3.0.2
2024-12-13T18:18:43.732Z [err] npm
2024-12-13T18:18:43.733Z [err]  WARN
2024-12-13T18:18:43.734Z [err]  config production Use `--omit=dev` instead.
2024-12-13T18:18:45.070Z [err] npm
2024-12-13T18:18:45.071Z [err]  ERR! code EBADENGINE
2024-12-13T18:18:45.075Z [err] npm
2024-12-13T18:18:45.076Z [err]  ERR!
2024-12-13T18:18:45.076Z [err]  engine Unsupported engine
2024-12-13T18:18:45.076Z [err] npm ERR!
2024-12-13T18:18:45.076Z [err]
2024-12-13T18:18:45.076Z [err] engine Not compatible with your version of node/npm: node-red-node-email@3.0.2
2024-12-13T18:18:45.077Z [err] npm
2024-12-13T18:18:45.077Z [err] ERR! notsup Not compatible with your version of node/npm: node-red-node-email@3.0.2
2024-12-13T18:18:45.077Z [err] npm ERR! notsup
2024-12-13T18:18:45.077Z [err]  Required: {"node":">=18.0.0"}
2024-12-13T18:18:45.077Z [err] npm
2024-12-13T18:18:45.077Z [err] ERR! notsup Actual:   {"npm":"8.19.4","node":"v16.20.2"}
2024-12-13T18:18:45.082Z [err]
2024-12-13T18:18:45.082Z [err] npm ERR!
2024-12-13T18:18:45.083Z [err]  A complete log of this run can be found in:
2024-12-13T18:18:45.083Z [err] npm ERR!     /data/.npm/_logs/2024-12-13T18_18_43_653Z-debug-0.log
2024-12-13T18:18:45.094Z rc=1

[prohand]

Indeed, 00:01 is a mistake because

[mutmut]

Hello,
I just noticed that I had installed the same node-red-node-email module as you but I only have 3.0.2 and you have 2.2.1, and the problem is that it requires Node.js >18 for this module in the 3.x.x version
How did you manage to get that specific version?

I second the Node.js update if that’s possible of course

Upgrade node red avec nodejs 16.20.2 to 18.x ou 20.x

Hello, Un petit sondage pour voir si sa serait un problème pour vous d’uprade node-red avec nodejs en version 18.x ou 20.x Nous sommes en version de nodejs 16.20.x qui est EOL septembre 2023 https://nodered.org/docs/faq/node-versions https://nodered.org/about/releases/ J’aurai eu à minima besoin de la version 18 pour ce plugin et la récup des tarfis tempo sur un pdf : (Finalement plus besoin ) La question du sondage est : Upgrade or not upgrade ? sondage

[prohand]

Hello,

I probably downloaded it when it was the latest version, quite simply ^^
If you find a way to install an older version, I’d be interested

[mutmut]

I’m struggling: I tried in a Docker console to run npm i node-red-node-email@2.2.1
It says a new module is installed, others need updating, but nothing shows up in Node-RED, even after refreshing the web page.

So I wanted to disable the Node-RED integration from GLadys and enable it again.
Result: I lost everything (flows and installed modules)
Disabling removes the container but also all the data saved on the mounted volume (/volume1/docker/gladysassistant/node-red in my case on a Syno). What a bummer

I don’t know if this is normal behavior but it’s really stupid especially when you haven’t backed up that folder, @pierre-gilles can you tell us?

[prohand]

Ouch, yeah that’s beyond my skills ^^
That’s why I back up the entire VM every night on my end
I also export my feeds to my email address just in case.
Good luck to you

[pierre-gilles]

@mutmut

I don’t know if this is normal behavior but it’s really dumb, especially when you haven’t saved this repo, @pierre-gilles could you tell us?

I’m not the developer of this integration but yes it’s the expected behavior

A small warning message would be welcome though!

I created an issue :

Node-RED: Add a warning that disabling the integration will delete node-red data

[mutmut]

@prohand tomorrow (Feb 1) we should normally know whether the file keeps the same name and, at worst, we’ll have to change the link in Node-RED

[prohand]

Hello,

You’ll tell me because I’m not keeping time at the moment

[mutmut]

EDIT : Everything below is a pretty big mistake on my part but I’ll leave it for the thread’s history.

Résumé

The URL unfortunately changed, here is the new one: https://particuliers.es.fr/sites/default/files/documents/2025.02.01_PART_TRV_Bleu_(INF456).pdf
And the table format too
BEFORE :

NOW :

And since I’m terrible at Node-RED, the flow is out …
@prohand would you have a little time to modify the flow? Thanks in advance

[prohand]

Ah darn

I won’t have time over the next few days, unfortunately.

Besides, there’s nothing very complicated — you can give the current code to ChatGPT and ask it to adapt it to the new one.

For the current Node-RED flow, that’s what I did

[mutmut]

I made a mistake because I’m with ES and not EDF, I took the ES file… I’m analyzing and looking for the EDF file.

[mutmut]

Hear ye, hear ye, I’m an idiot!

Aside from that, the file from EDF still has the same name and same URL since February 1, 2025 with its new rates and everything works perfectly without changing anything!

Thanks @prohand for the original flow and I won’t tap multiple times on my keyboard before checking five times anymore

EDIT: and for info, the TEMPO rates are now available as open data since January 30, 2025: https://www.data.gouv.fr/fr/datasets/historique-des-tarifs-reglementes-de-vente-delectricite-pour-les-consommateurs-residentiels/
