Tutorial - TEMPO tariff update (automatic PDF update)

[prohand]

Hello everyone,

As promised in the tutorial by @mutmut: (Thanks to him for this tutorial)

[TUTORIAL] TEMPO tariff update

Hello Team, following the setup of Tuto - Domotiser son lave linge avec une prise connectée and Tuto - Récupérer le prix de son abonnement d'électricité via le site data.gouv.fr - Tarifs hors tempo by @prohand, I needed to modify the retrieval of the electricity cost for my TEMPO subscription. Here is the result on my dashboard : [tempo dashboard with cost] I didn’t find any opendata that could be integrated via node-red so I went with scenes and the rates are hardcoded unfortunately. [sc…

And following my tutorial that allows retrieving off-peak rates:

Tutorial - Retrieve the price of your electricity subscription via data.gouv.fr - Tariffs excluding Tempo

Hello, I see you showing here how to retrieve the electricity rate with Node-RED via the file: https://www.data.gouv.fr/fr/datasets/r/c13d05e5-9e55-4d03-bf7e-042a2ade7e49 and then transfer it to an MQTT topic to use it in Gladys This file can be found here: https://www.data.gouv.fr/fr/datasets/historique-des-tarifs-reglementes-de-vente-delectricite-pour-les-consommateurs-residentiels/ This tutorial is compatible with the « Base » option only because it is the option associated with my …

I wanted to see how to automate the retrieval of the different costs.

I then came across this Jeedom tutorial (Thanks to its author), which I heavily drew inspiration from, including copying the Node-RED code:

Tarif EDF TEMPO instantané

The goal here is to retrieve the PDF file of the Tempo tariff grid directly from the EDF website to update the values directly in Gladys and have the real cost per kWh ready to use in other scenes

The file can be found here:
https://particulier.edf.fr/content/dam/2-Actifs/Documents/Offres/Grille_prix_Tarif_Bleu.pdf

We just have to hope that the structure/composition of the file is not changed by EDF

The final result:

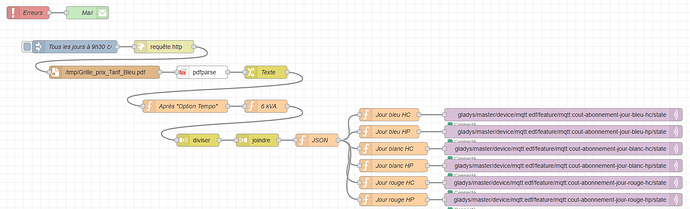

Here is the Node-Red flow:
(An error catch is present to retrieve errors and send them by email)

[
    {
        "id": "670838a9edef0758",
        "type": "catch",
        "z": "d6333988d9cfb817",
        "name": "Errors",
        "scope": null,
        "uncaught": false,
        "x": 110,
        "y": 60,
        "wires": [
            [
                "c097dad994334b5e"
            ]
        ]
    },
    {
        "id": "c097dad994334b5e",
        "type": "e-mail",
        "z": "d6333988d9cfb817",
        "server": "myemailserver",
        "port": "465",
        "authtype": "BASIC",
        "saslformat": false,
        "token": "oauth2Response.access_token",
        "secure": true,
        "tls": true,
        "name": "myaddress@email.fr",
        "dname": "Mail",
        "x": 250,
        "y": 60,
        "wires": []
    },
    {
        "id": "bf708d78a507d9c3",
        "type": "http request",
        "z": "d6333988d9cfb817",
        "name": "",
        "method": "GET",
        "ret": "bin",
        "paytoqs": "ignore",
        "url": "https://particulier.edf.fr/content/dam/2-Actifs/Documents/Offres/Grille_prix_Tarif_Bleu.pdf",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 430,
        "y": 140,
        "wires": [
            [
                "c6602cec6bea28ca"
            ]
        ]
    },
    {
        "id": "c6602cec6bea28ca",
        "type": "file",
        "z": "d6333988d9cfb817",
        "name": "",
        "filename": "/tmp/Grille_prix_Tarif_Bleu.pdf",
        "filenameType": "str",
        "appendNewline": true,
        "createDir": false,
        "overwriteFile": "true",
        "encoding": "none",
        "x": 290,
        "y": 200,
        "wires": [
            [
                "866bd16b214c1d1d"
            ]
        ]
    },
    {
        "id": "a0349e7017779b4a",
        "type": "change",
        "z": "d6333988d9cfb817",
        "name": "Text",
        "rules": [
            {
                "t": "set",
                "p": "payload",
                "pt": "msg",
                "to": "payload.text",
                "tot": "msg"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 670,
        "y": 200,
        "wires": [
            [
                "d23eb75a79c8996d"
            ]
        ]
    },
    {
        "id": "d23eb75a79c8996d",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "After \"Option Tempo\"",
        "func": "const regex = /Option Tempo((.|\\n)*)/gm;\nconst found = msg.payload.match(regex);\nmsg.payload = found[0];\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 480,
        "y": 280,
        "wires": [
            [
                "09faecd167fed230"
            ]
        ]
    },
    {
        "id": "09faecd167fed230",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "6 kVA",
        "func": "const regex = /^12\b.*$/gm; // subscribed power\nconst found = msg.payload.match(regex);\nconst searchRegExp = /,/g; // replace commas with dots\nconst replaceWith = '.';\nmsg.payload = found[0];\nmsg.payload = msg.payload.replace(searchRegExp, replaceWith);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 670,
        "y": 280,
        "wires": [
            [
                "e7ca8ee4d891c581"
            ]
        ]
    },
    {
        "id": "e7ca8ee4d891c581",
        "type": "split",
        "z": "d6333988d9cfb817",
        "name": "",
        "splt": " ",
        "spltType": "str",
        "arraySplt": 1,
        "arraySpltType": "len",
        "stream": false,
        "addname": "",
        "x": 510,
        "y": 360,
        "wires": [
            [
                "9f3df8ae0bd5d4bf"
            ]
        ]
    },
    {
        "id": "9f3df8ae0bd5d4bf",
        "type": "join",
        "z": "d6333988d9cfb817",
        "name": "",
        "mode": "custom",
        "build": "array",
        "property": "payload",
        "propertyType": "msg",
        "key": "topic",
        "joiner": "\\n",
        "joinerType": "str",
        "accumulate": false,
        "timeout": "",
        "count": "",
        "reduceRight": false,
        "reduceExp": "",
        "reduceInit": "",
        "reduceInitType": "num",
        "reduceFixup": "",
        "x": 650,
        "y": 360,
        "wires": [
            [
                "88eaf52f02be48c8"
            ]
        ]
    },
    {
        "id": "88eaf52f02be48c8",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "JSON",
        "func": "msg.payload = {\n    \"power\": msg.payload[0],\n    \"subscription_price\": Number((Number(msg.payload[1]) * 12).toFixed(2)),\n    \"HCJB_price\": Number(Number(msg.payload[2] / 100).toFixed(4)),\n    \"HPJB_price\": Number(Number(msg.payload[3] / 100).toFixed(4)),\n    \"HCJW_price\": Number(Number(msg.payload[4] / 100).toFixed(4)),\n    \"HPJW_price\": Number(Number(msg.payload[5] / 100).toFixed(4)),\n    \"HCJR_price\": Number(Number(msg.payload[6] / 100).toFixed(4)),\n    \"HPJR_price\": Number(Number(msg.payload[7] / 100).toFixed(4)),\n}\nreturn msg;",
        "outputs": 1,
        "timeout": "",
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 790,
        "y": 360,
        "wires": [
            [
                "6e2b78e27c34c026",
                "4d19e36f157bd2c0",
                "50608e9e9bdecdc6",
                "d9fe4a5ac7c52d90",
                "b4a2b0d2177a9058",
                "c5f9959555f3e7b9"
            ]
        ]
    },
    {
        "id": "1316dbce795332d5",
        "type": "inject",
        "z": "d6333988d9cfb817",
        "name": "Every day at 9:30 AM",
        "props": [
            {
                "p": "payload"
            }
        ],
        "repeat": "",
        "crontab": "30 09 * * *",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 220,
        "y": 140,
        "wires": [
            [
                "bf708d78a507d9c3"
            ]
        ]
    },
    {
        "id": "866bd16b214c1d1d",
        "type": "pdfparse",
        "z": "d6333988d9cfb817",
        "name": "",
        "path": "/tmp/Grille_prix_Tarif_Bleu.pdf",
        "x": 520,
        "y": 200,
        "wires": [
            [
                "a0349e7017779b4a"
            ]
        ]
    },
    {
        "id": "6e2b78e27c34c026",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Blue day HC",
        "func": "msg.payload = msg.payload.HCJB_price;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 960,
        "y": 300,
        "wires": [
            [
                "0a6e473635b8b423"
            ]
        ]
    },
    {
        "id": "4d19e36f157bd2c0",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Blue day HP",
        "func": "msg.payload = msg.payload.HPJB_price;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 960,
        "y": 340,
        "wires": [
            [
                "69c1fb09c3ede0e0"
            ]
        ]
    },
    {
        "id": "50608e9e9bdecdc6",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "White day HC",
        "func": "msg.payload = msg.payload.HCJW_price;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 380wires": [
            [
                "467f6ce03f7ed6c0"
            ]
        ]
    },
    {
        "id": "d9fe4a5ac7c52d90",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "White day HP",
        "func": "msg.payload = msg.payload.prix_HPJW;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 420,
        "wires": [
            [
                "ed628e4d71dbbc38"
            ]
        ]
    },
    {
        "id": "b4a2b0d2177a9058",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Red day HC",
        "func": "msg.payload = msg.payload.prix_HCJR;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 460,
        "wires": [
            [
                "f2b3869570196614"
            ]
        ]
    },
    {
        "id": "c5f9959555f3e7b9",
        "type": "function",
        "z": "d6333988d9cfb817",
        "name": "Red day HP",
        "func": "msg.payload = msg.payload.prix_HPJR;\nmsg.payload = parseFloat(msg.payload);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 970,
        "y": 500,
        "wires": [
            [
                "ae1d548f6cb679aa"
            ]
        ]
    },
    {
        "id": "0a6e473635b8b423",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-bleu-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 300,
        "wires": []
    },
    {
        "id": "69c1fb09c3ede0e0",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-bleu-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 340,
        "wires": []
    },
    {
        "id": "467f6ce03f7ed6c0",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-blanc-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 380,
        "wires": []
    },
    {
        "id": "ed628e4d71dbbc38",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-blanc-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 420,
        "wires": []
    },
    {
        "id": "f2b3869570196614",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-rouge-hc/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 460,
        "wires": []
    },
    {
        "id": "ae1d548f6cb679aa",
        "type": "mqtt out",
        "z": "d6333988d9cfb817",
        "name": "",
        "topic": "gladys/master/device/mqtt:edf/feature/mqtt:cout-abonnement-jour-rouge-hp/state",
        "qos": "2",
        "retain": "true",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "0ee77e0f90aa9681",
        "x": 1370,
        "y": 500,
        "wires": []
    },
    {
        "id": "0ee77e0f90aa9681",
        "type": "mqtt-broker",
        "name": "GLADYS-MQTT",
        "broker": "mqtt://192.168.0.248",
        "port": "1883",
        "clientid": "",
        "autoConnect": true,
        "usetls": false,
        "protocolVersion": "4",
        "keepalive": "60",
        "cleansession": true,
        "autoUnsubscribe": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthRetain": "false",
        "birthPayload": "",
        "birthMsg": {},
        "closeTopic": "",
        "closeQos": "0",
        "closeRetain": "false",
        "closePayload": "",
        "closeMsg": {},
        "willTopic": "",
        "willQos": "0",
        "willRetain": "false",
        "willPayload": "",
        "willMsg": {},
        "userProps": "",
        "sessionExpiry": ""
    }
]

Don’t forget to modify the subscribed power

Prerequisites:

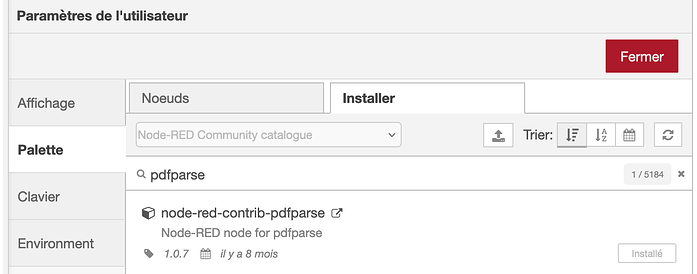

Install the node-red-contrib-pdfparse module:

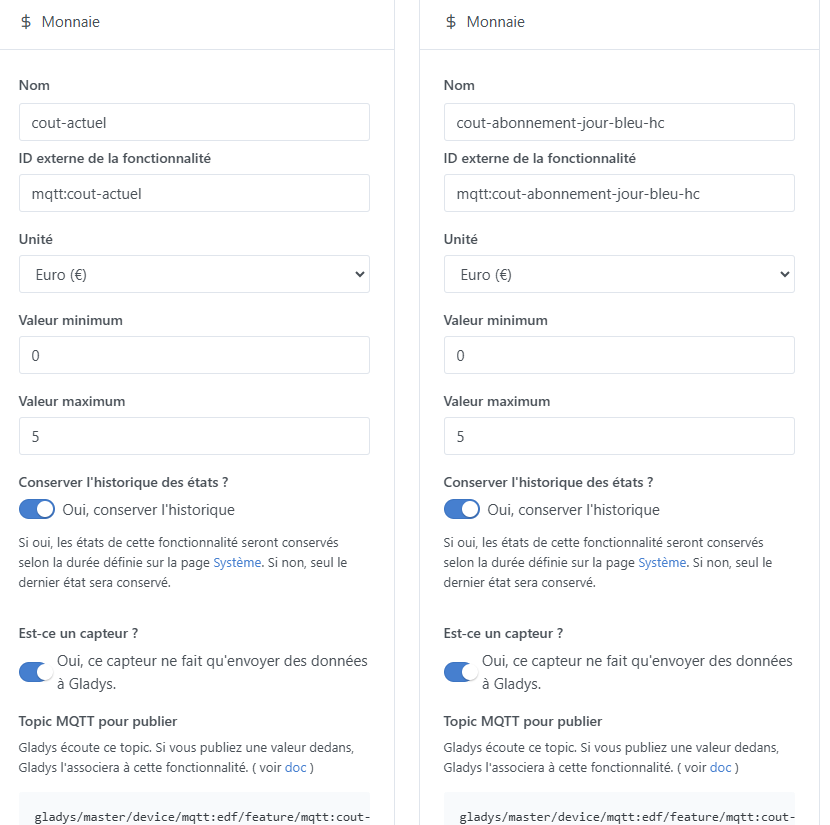

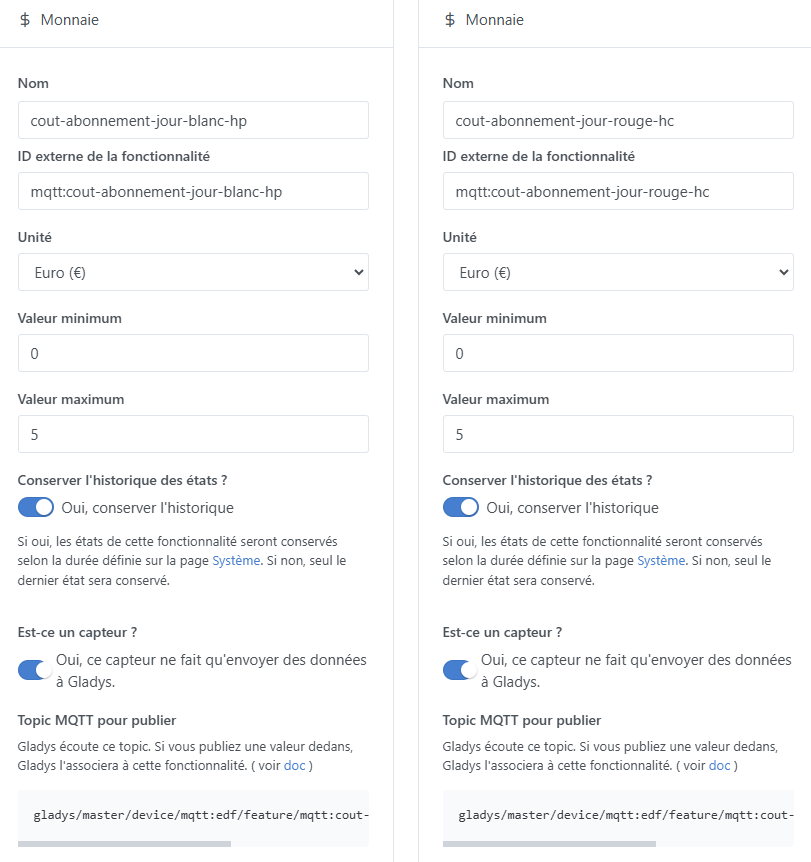

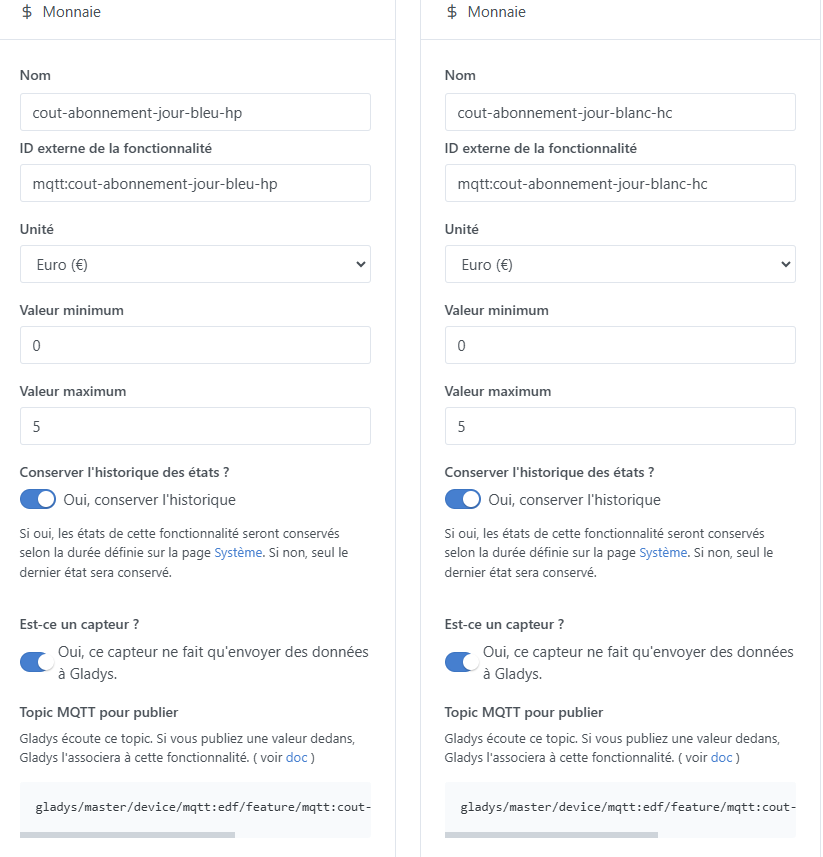

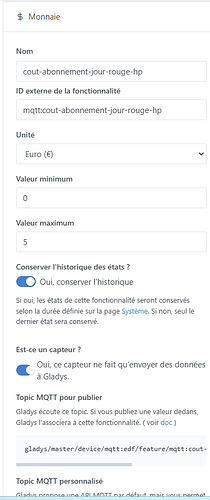

Here is the MQTT device with the features:

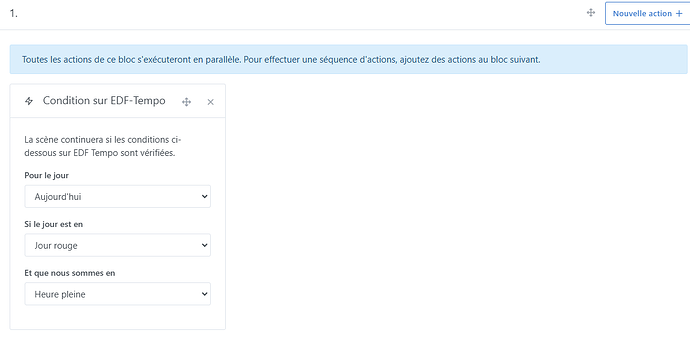

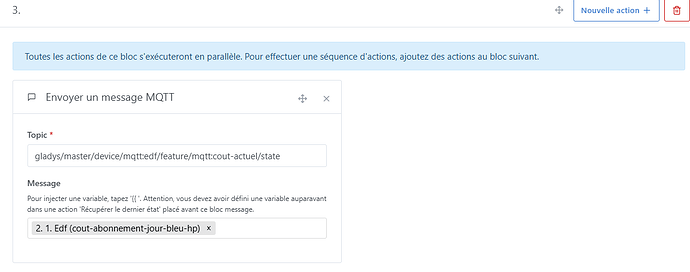

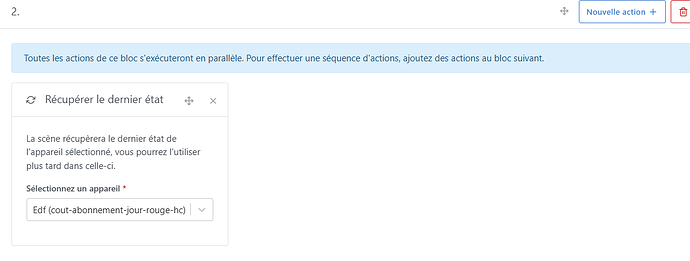

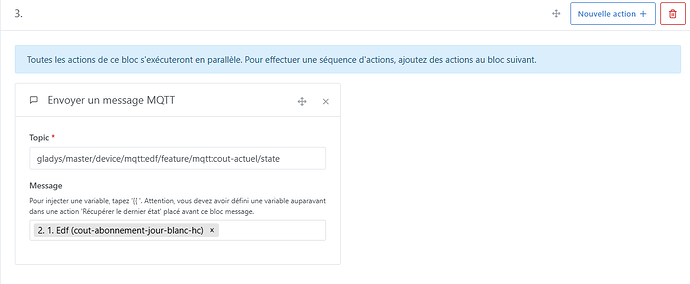

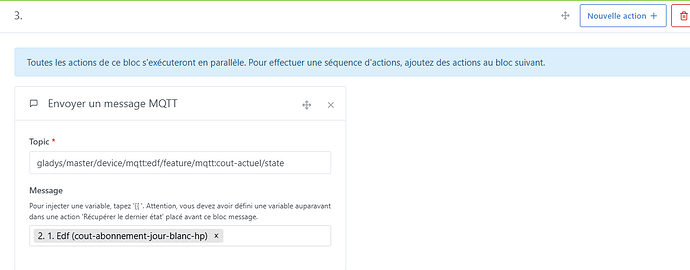

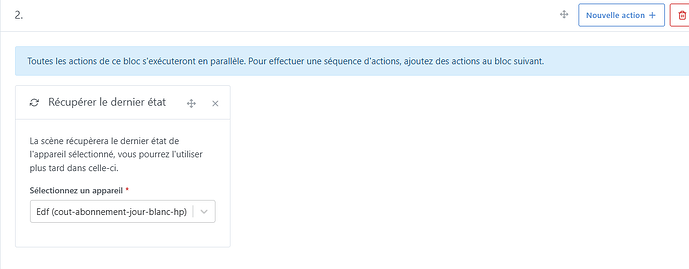

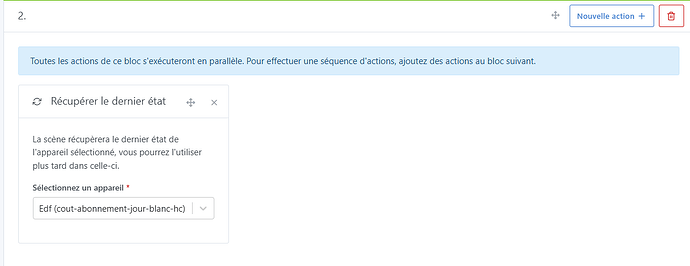

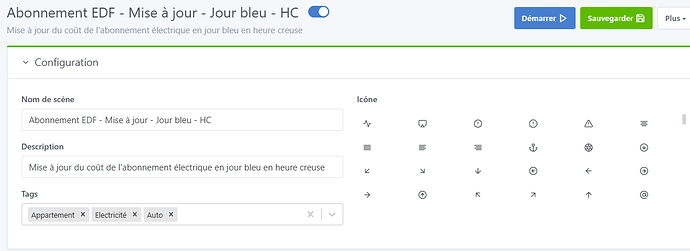

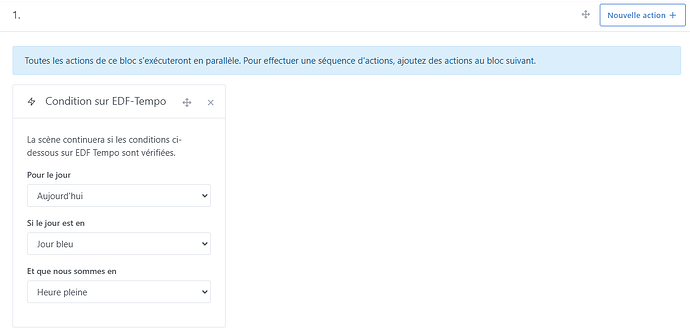

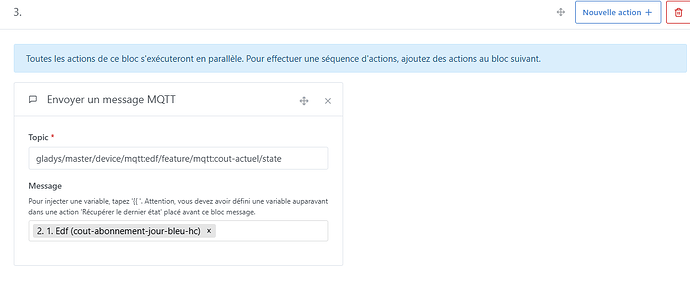

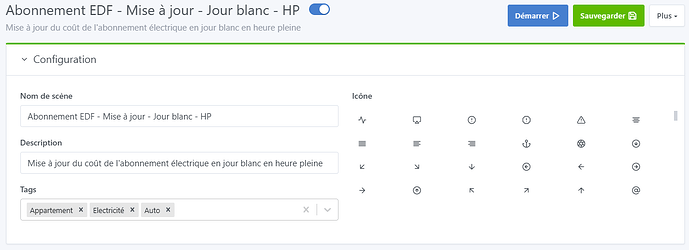

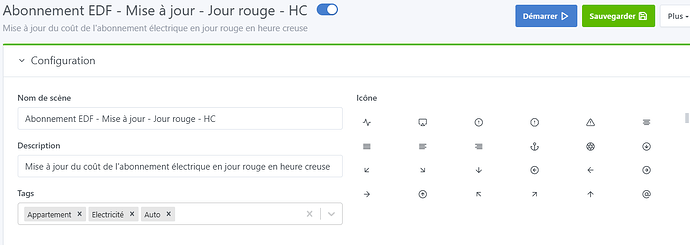

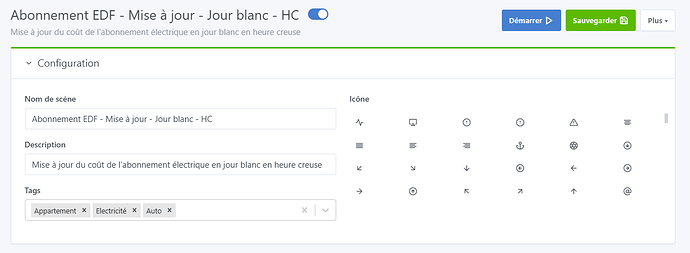

Here are the scenes:

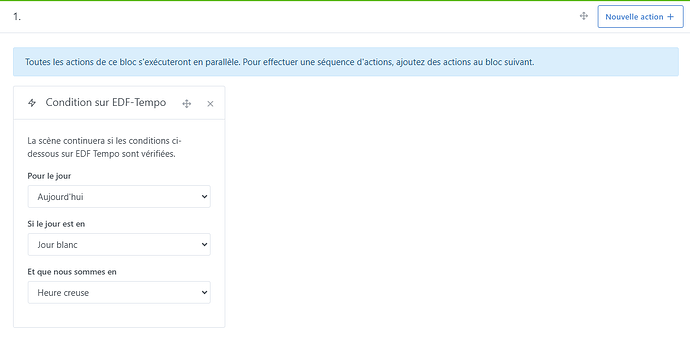

White day - HC:

White day - HP:

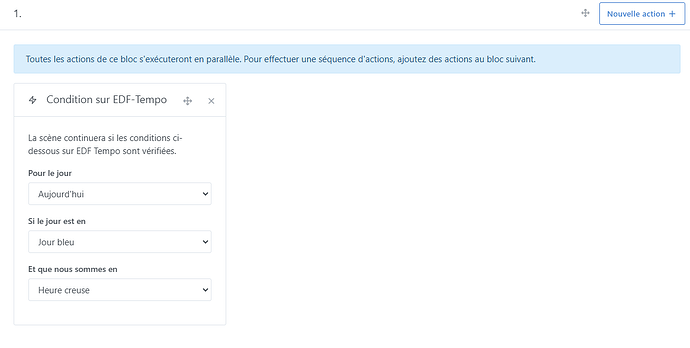

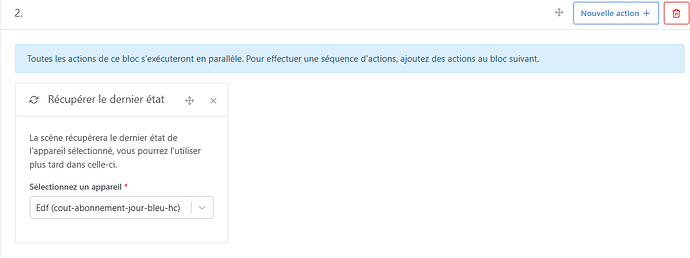

Blue day - HC:

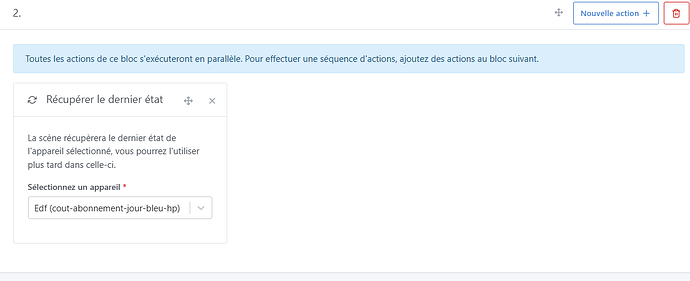

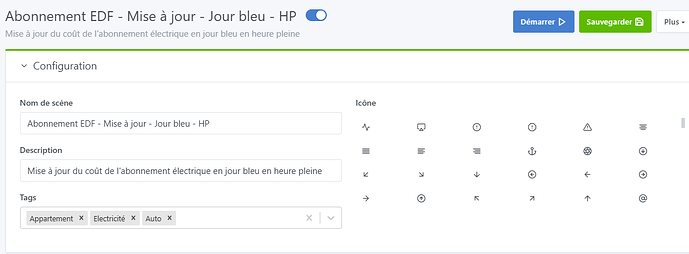

Blue day - HP:

Red day - HC:

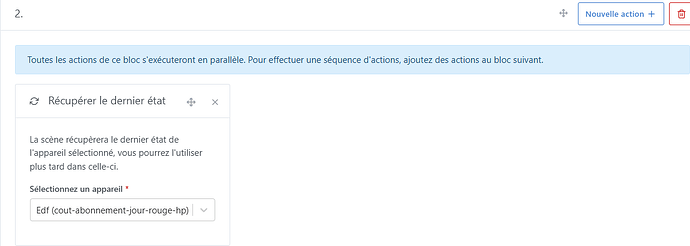

Red day - HP:

If you have any questions/comments, feel free to let me know

Changelog to come:

• None (Your comments )

[pierre-gilles]

Great tutorial! Thanks @prohand!

[mutmut]

Well done @prohand, I didn’t have the courage to add all my screenshots for all the HCHP&JourQuiVaBien cases

Quick question about the triggers — why did you put one at 00:01? Doesn’t Gladys handle tracking from one day to the next?

EDIT: there’s a « Download CSV » paragraph dangling at the end of your flow (I removed it because I didn’t understand it) and for those who have a somewhat clean Node-RED like mine, I’d add that you need to install pdfparse:

Of course, don’t forget to configure your MQTT server (with login/password).

EDIT 2: @prohand which module did you use for mail?
I’m having installation issues

2024-12-13T18:18:42.602Z Installer : node-red-node-email 3.0.2

2024-12-13T18:18:42.699Z npm install --no-audit --no-update-notifier --no-fund --save --save-prefix=~ --production --engine-strict node-red-node-email@3.0.2
2024-12-13T18:18:43.732Z [err] npm
2024-12-13T18:18:43.733Z [err]  WARN
2024-12-13T18:18:43.734Z [err]  config production Use `--omit=dev` instead.
2024-12-13T18:18:45.070Z [err] npm
2024-12-13T18:18:45.071Z [err]  ERR! code EBADENGINE
2024-12-13T18:18:45.075Z [err] npm
2024-12-13T18:18:45.076Z [err]  ERR!
2024-12-13T18:18:45.076Z [err]  engine Unsupported engine
2024-12-13T18:18:45.076Z [err] npm ERR!
2024-12-13T18:18:45.076Z [err]
2024-12-13T18:18:45.076Z [err] engine Not compatible with your version of node/npm: node-red-node-email@3.0.2
2024-12-13T18:18:45.077Z [err] npm
2024-12-13T18:18:45.077Z [err] ERR! notsup Not compatible with your version of node/npm: node-red-node-email@3.0.2
2024-12-13T18:18:45.077Z [err] npm ERR! notsup
2024-12-13T18:18:45.077Z [err]  Required: {"node":">=18.0.0"}
2024-12-13T18:18:45.077Z [err] npm
2024-12-13T18:18:45.077Z [err] ERR! notsup Actual:   {"npm":"8.19.4","node":"v16.20.2"}
2024-12-13T18:18:45.082Z [err]
2024-12-13T18:18:45.082Z [err] npm ERR!
2024-12-13T18:18:45.083Z [err]  A complete log of this run can be found in:
2024-12-13T18:18:45.083Z [err] npm ERR!     /data/.npm/_logs/2024-12-13T18_18_43_653Z-debug-0.log
2024-12-13T18:18:45.094Z rc=1

[prohand]

Indeed, 00:01 is a mistake because

[mutmut]

Hello,
I just noticed that I had installed the same node-red-node-email module as you but I only have 3.0.2 and you have 2.2.1, and the problem is that it requires Node.js >18 for this module in the 3.x.x version
How did you manage to get that specific version?

I second the Node.js update if that’s possible of course

Upgrade node red avec nodejs 16.20.2 to 18.x ou 20.x

Hello, Un petit sondage pour voir si sa serait un problème pour vous d’uprade node-red avec nodejs en version 18.x ou 20.x Nous sommes en version de nodejs 16.20.x qui est EOL septembre 2023 https://nodered.org/docs/faq/node-versions https://nodered.org/about/releases/ J’aurai eu à minima besoin de la version 18 pour ce plugin et la récup des tarfis tempo sur un pdf : (Finalement plus besoin ) La question du sondage est : Upgrade or not upgrade ? sondage

[prohand]

Hello,

I probably downloaded it when it was the latest version, quite simply ^^
If you find a way to install an older version, I’d be interested

[mutmut]

I’m struggling: I tried in a Docker console to run npm i node-red-node-email@2.2.1
It says a new module is installed, others need updating, but nothing shows up in Node-RED, even after refreshing the web page.

So I wanted to disable the Node-RED integration from GLadys and enable it again.
Result: I lost everything (flows and installed modules)
Disabling removes the container but also all the data saved on the mounted volume (/volume1/docker/gladysassistant/node-red in my case on a Syno). What a bummer

I don’t know if this is normal behavior but it’s really stupid especially when you haven’t backed up that folder, @pierre-gilles can you tell us?

[prohand]

Ouch, yeah that’s beyond my skills ^^
That’s why I back up the entire VM every night on my end
I also export my feeds to my email address just in case.
Good luck to you

[pierre-gilles]

@mutmut

I don’t know if this is normal behavior but it’s really dumb, especially when you haven’t saved this repo, @pierre-gilles could you tell us?

I’m not the developer of this integration but yes it’s the expected behavior

A small warning message would be welcome though!

I created an issue :

Node-RED: Add a warning that disabling the integration will delete node-red data

[mutmut]

@prohand tomorrow (Feb 1) we should normally know whether the file keeps the same name and, at worst, we’ll have to change the link in Node-RED

[prohand]

Hello,

You’ll tell me because I’m not keeping time at the moment

[mutmut]

EDIT : Everything below is a pretty big mistake on my part but I’ll leave it for the thread’s history.

Résumé

The URL unfortunately changed, here is the new one: https://particuliers.es.fr/sites/default/files/documents/2025.02.01_PART_TRV_Bleu_(INF456).pdf
And the table format too
BEFORE :

NOW :

And since I’m terrible at Node-RED, the flow is out …
@prohand would you have a little time to modify the flow? Thanks in advance

[prohand]

Ah darn

I won’t have time over the next few days, unfortunately.

Besides, there’s nothing very complicated — you can give the current code to ChatGPT and ask it to adapt it to the new one.

For the current Node-RED flow, that’s what I did

[mutmut]

I made a mistake because I’m with ES and not EDF, I took the ES file… I’m analyzing and looking for the EDF file.

[mutmut]

Hear ye, hear ye, I’m an idiot!

Aside from that, the file from EDF still has the same name and same URL since February 1, 2025 with its new rates and everything works perfectly without changing anything!

Thanks @prohand for the original flow and I won’t tap multiple times on my keyboard before checking five times anymore

EDIT: and for info, the TEMPO rates are now available as open data since January 30, 2025: https://www.data.gouv.fr/fr/datasets/historique-des-tarifs-reglementes-de-vente-delectricite-pour-les-consommateurs-residentiels/

[mutmut]

Hello,

I’m making a small change to the regex for the subscribed power.
Indeed, this year for me, who have a 12kVA subscription, the regex searches for 12 in the PDF and matches a consumption price, namely 16,12, and only captures what follows on the line:

To make sure to take only the line that starts with 12, you should use:

const regex = /^12\\b.*$/gm; // subscribed power

^12\\b : the line starts with 12 as an integer value (not 112 or 120).
@prohand if you can change in your first post the regex = /6 .*/gm; in the Node-RED flow line:

"func": "const regex = /6 .*/gm; // subscribed power\\nconst found = msg.payload.match(regex);\\nconst searchRegExp = /,/g; // replace commas with dots\\nconst replaceWith = '.';\\nmsg.payload = found[0];\\nmsg.payload = msg.payload.replace(searchRegExp, replaceWith);\\nreturn msg;",

that would be great

[prohand]

Thanks @mutmut
I’ve edited the first post
